PLAN 51-1405
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

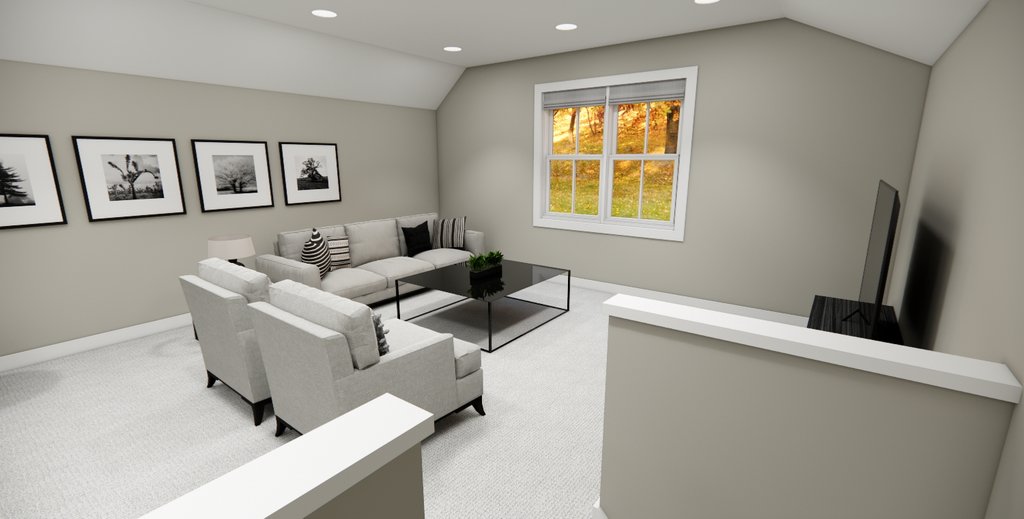

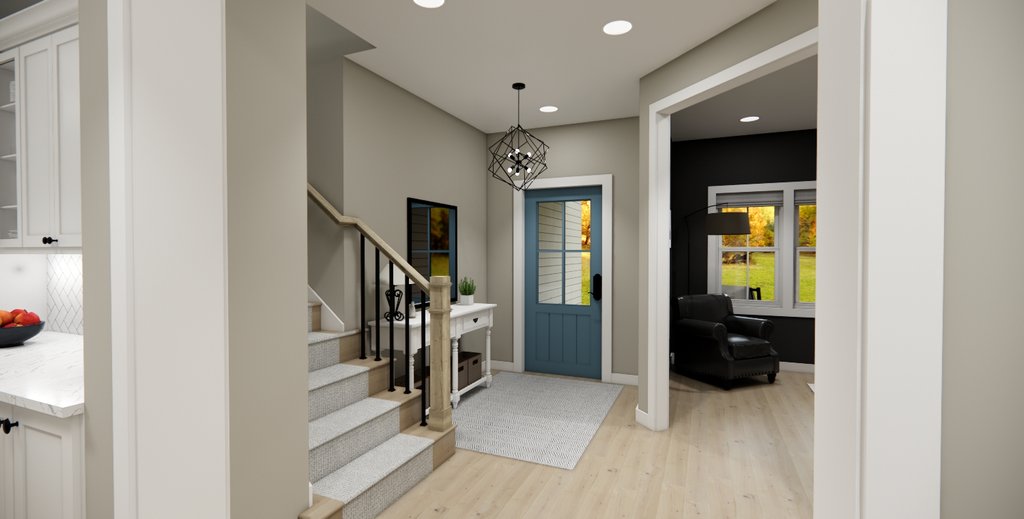

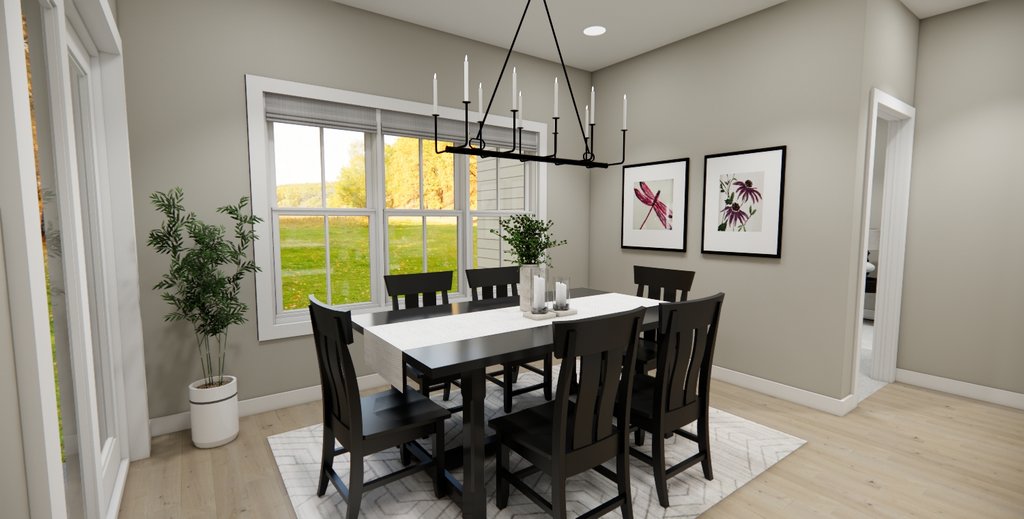

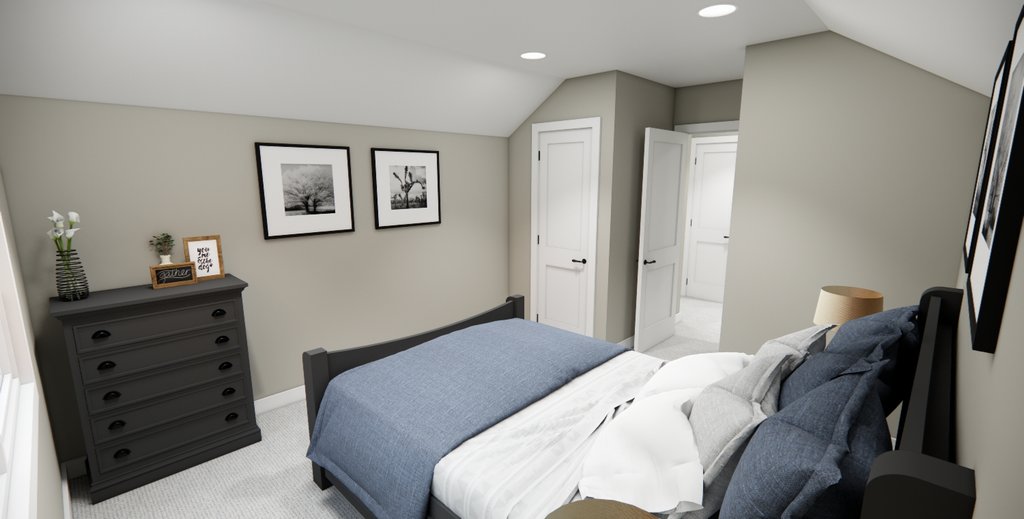

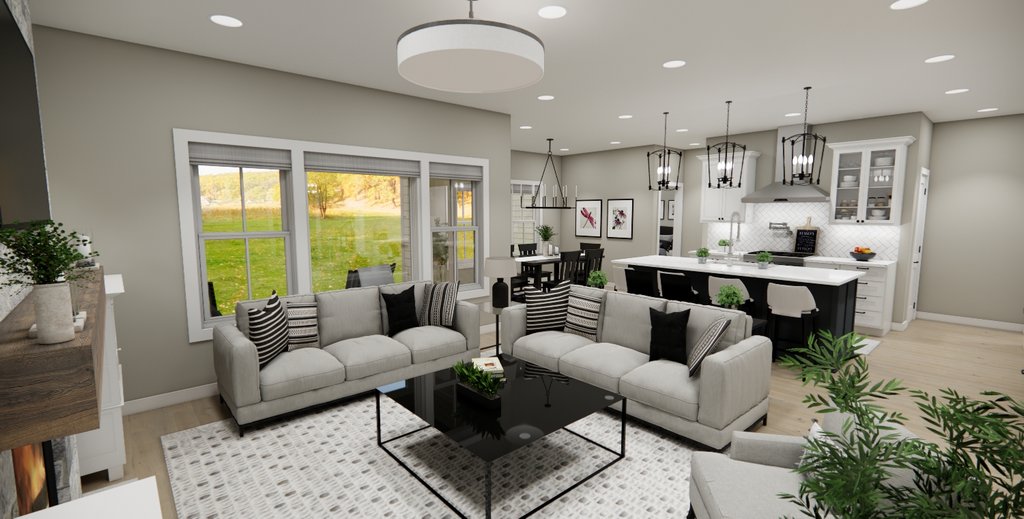

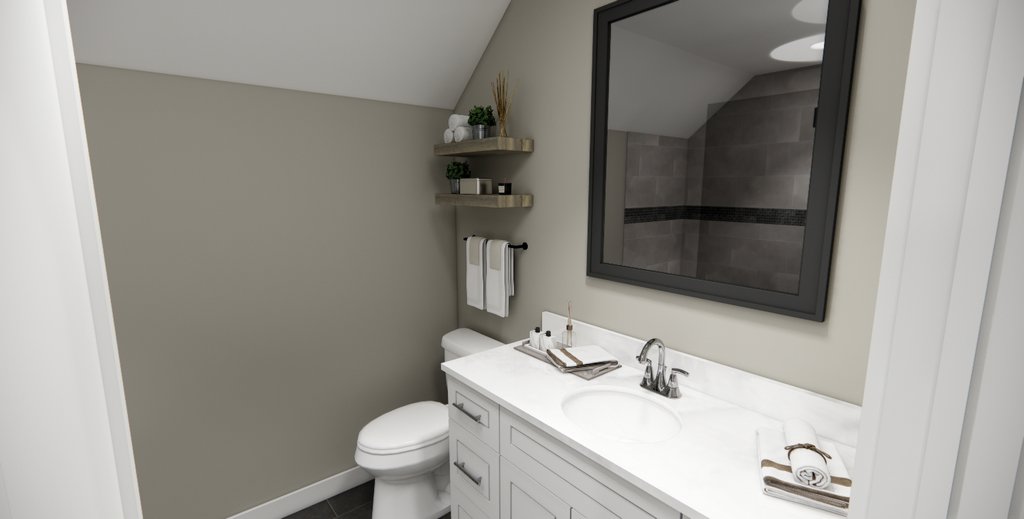

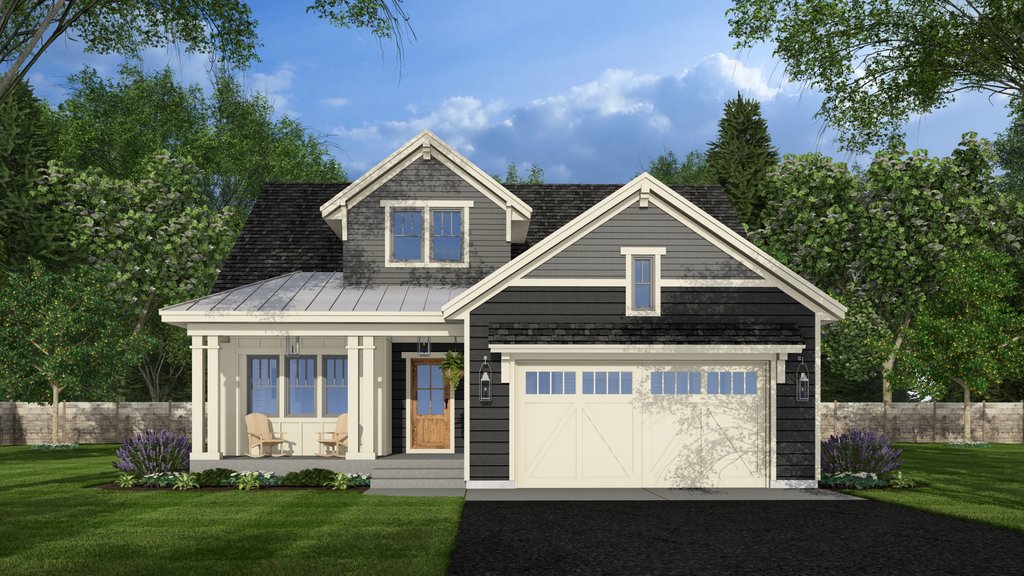

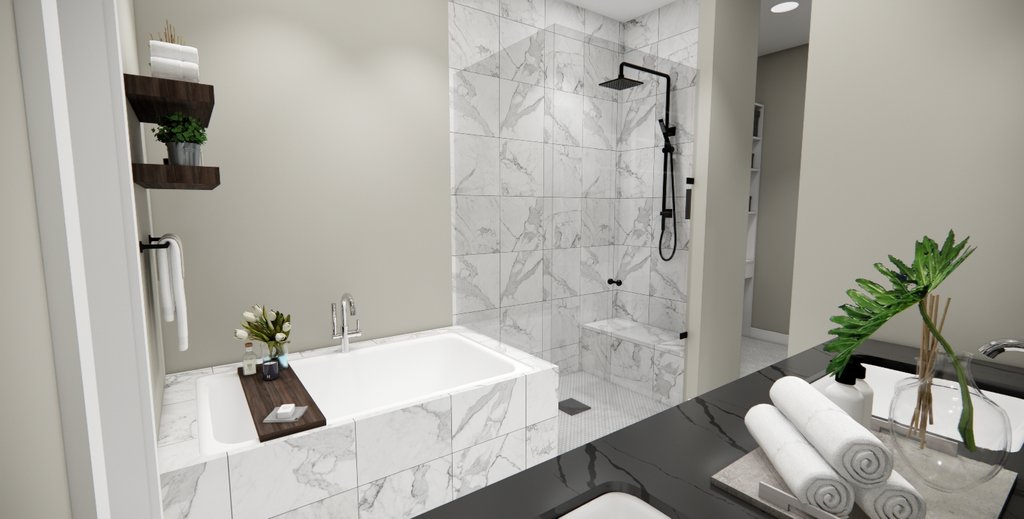

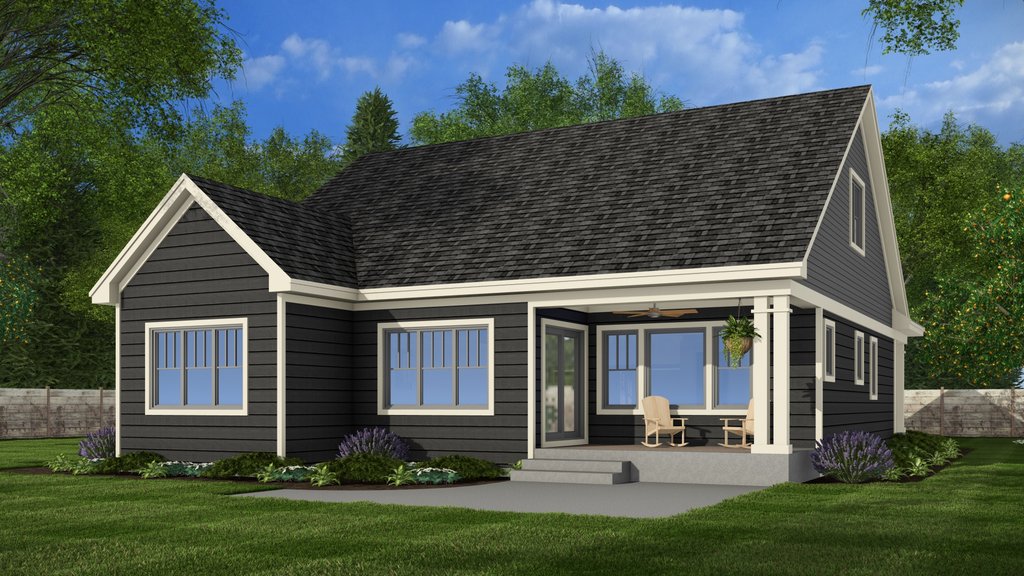

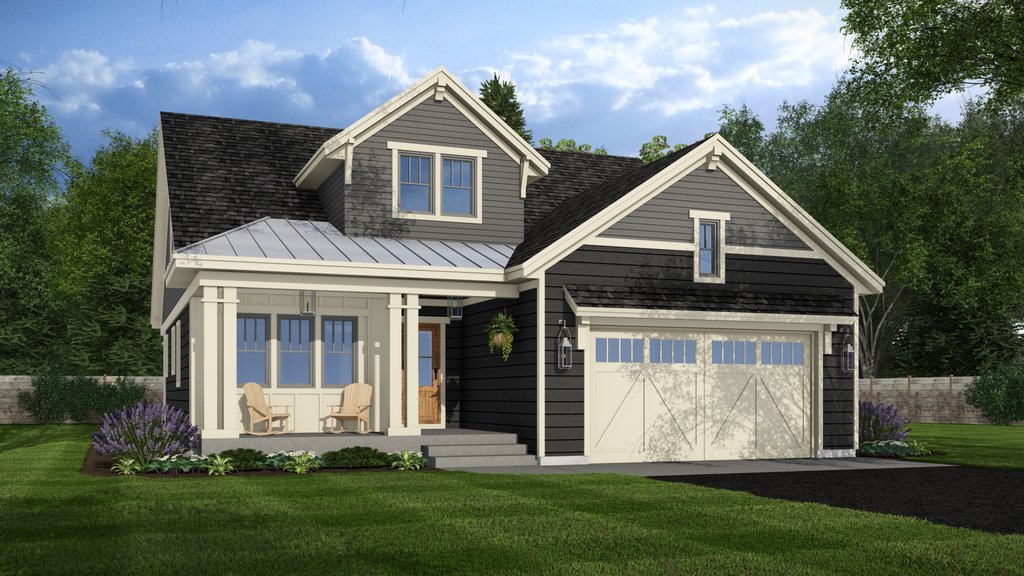

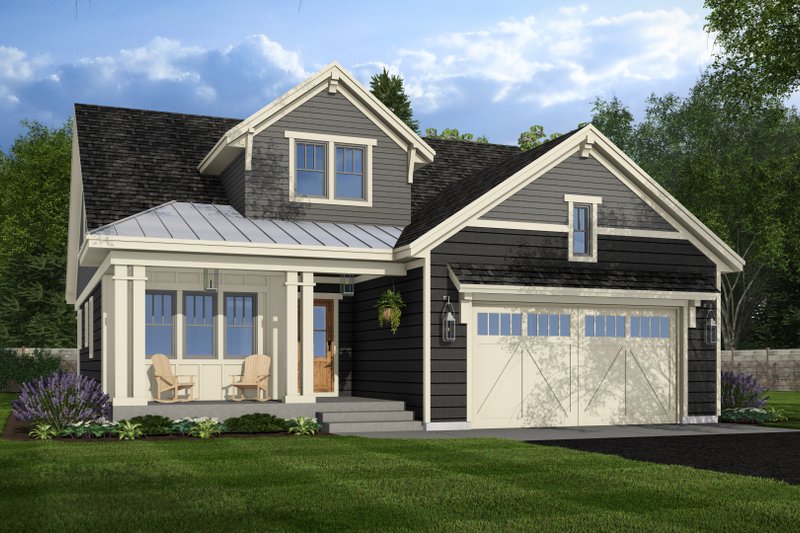

Welcome to this beautifully crafted two-story Bungalow that perfectly blends style with functionality. This home features 3 bedrooms, 2.5 bathrooms, and spacious common areas designed for both relaxation and entertainment. The main floor offers of open-concept living, beginning with a welcoming front porch and bright foyer with 9-foot ceilings throughout. Just off the entry, a versatile office makes working from home easy and convenient. The kitchen is a true centerpiece featuring a large 8-foot island with seating, generous counter space, and a seamless flow into the dining area and cozy great room with a fireplace. The private primary suite is located on the main level and includes a spacious walk-in closet and a luxurious en-suite bath with double vanities, a soaking tub, and a separate shower. The upper level includes two additional bedrooms, a shared full bath, and a centrally located linen closet. A large loft space offers endless possibilities as a media room, game area, or additional lounge space. Additional highlights include a mudroom with laundry off the 2-car garage, ample storage throughout, and walk-in closets in multiple bedrooms. This home combines the classic Bungalow style with convenience, ideal for families, remote professionals, or anyone looking for a warm, inviting place to call home.
Floor Plans

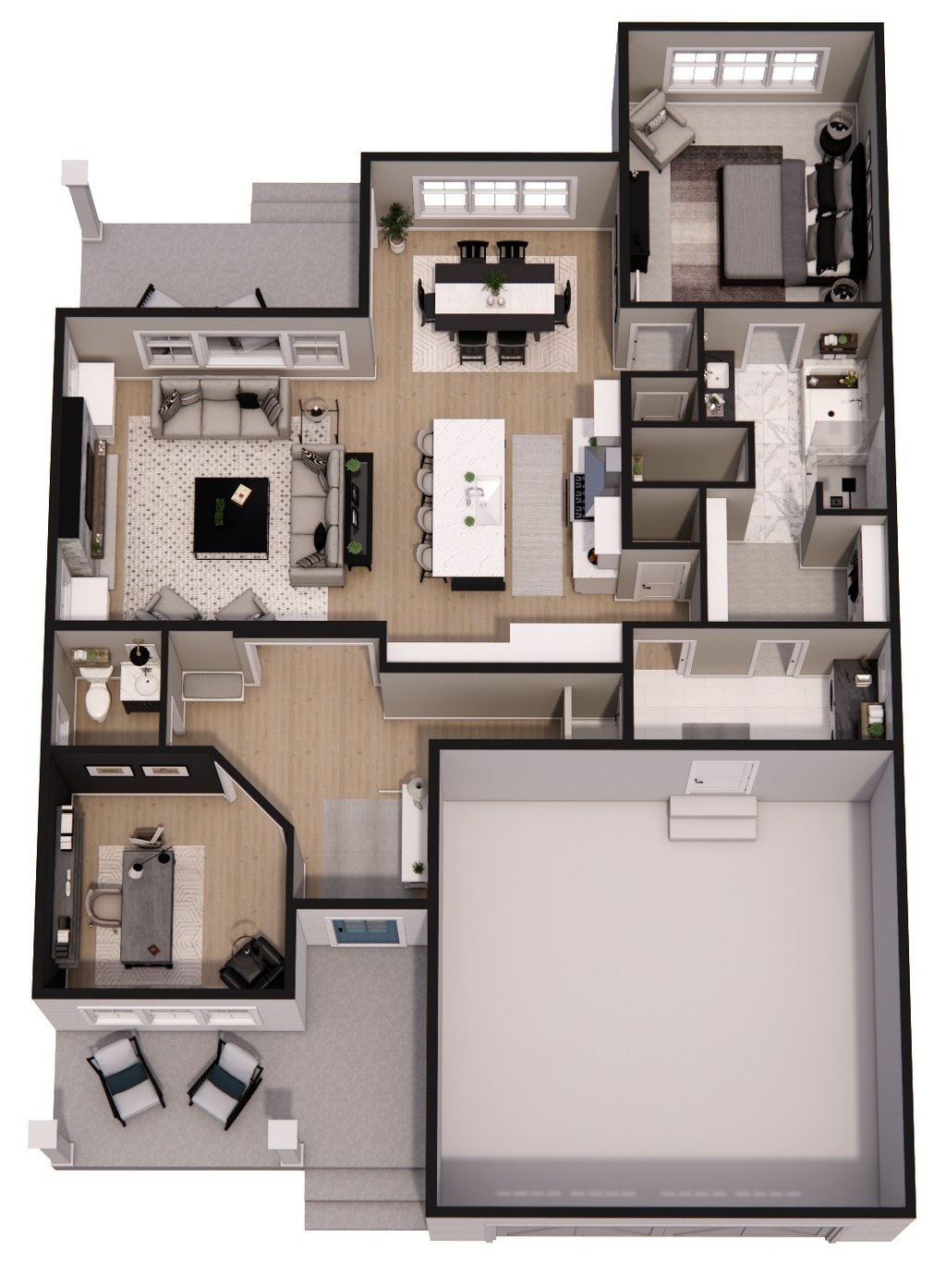

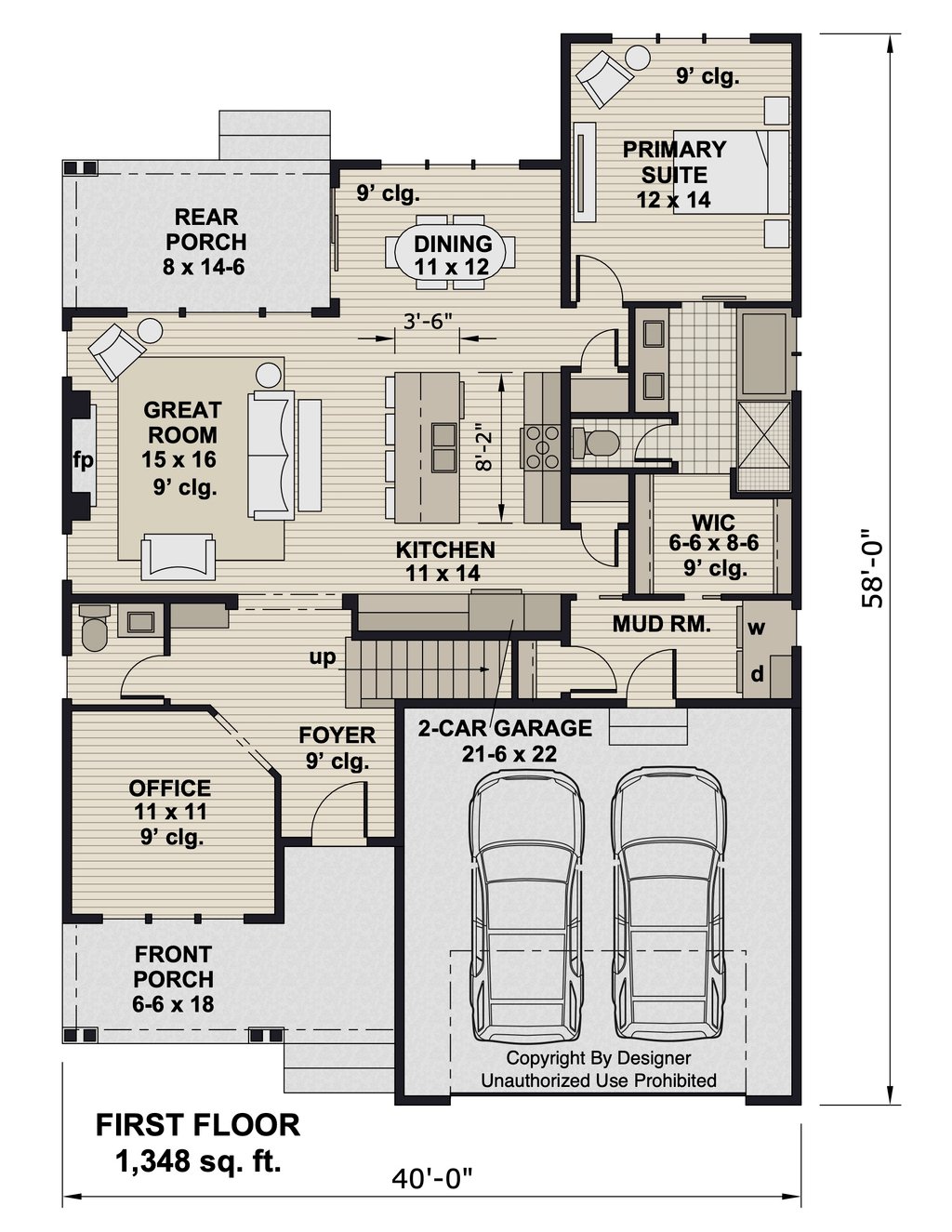

Floor Plan - Main Floor
Floor Plan - Main Floor

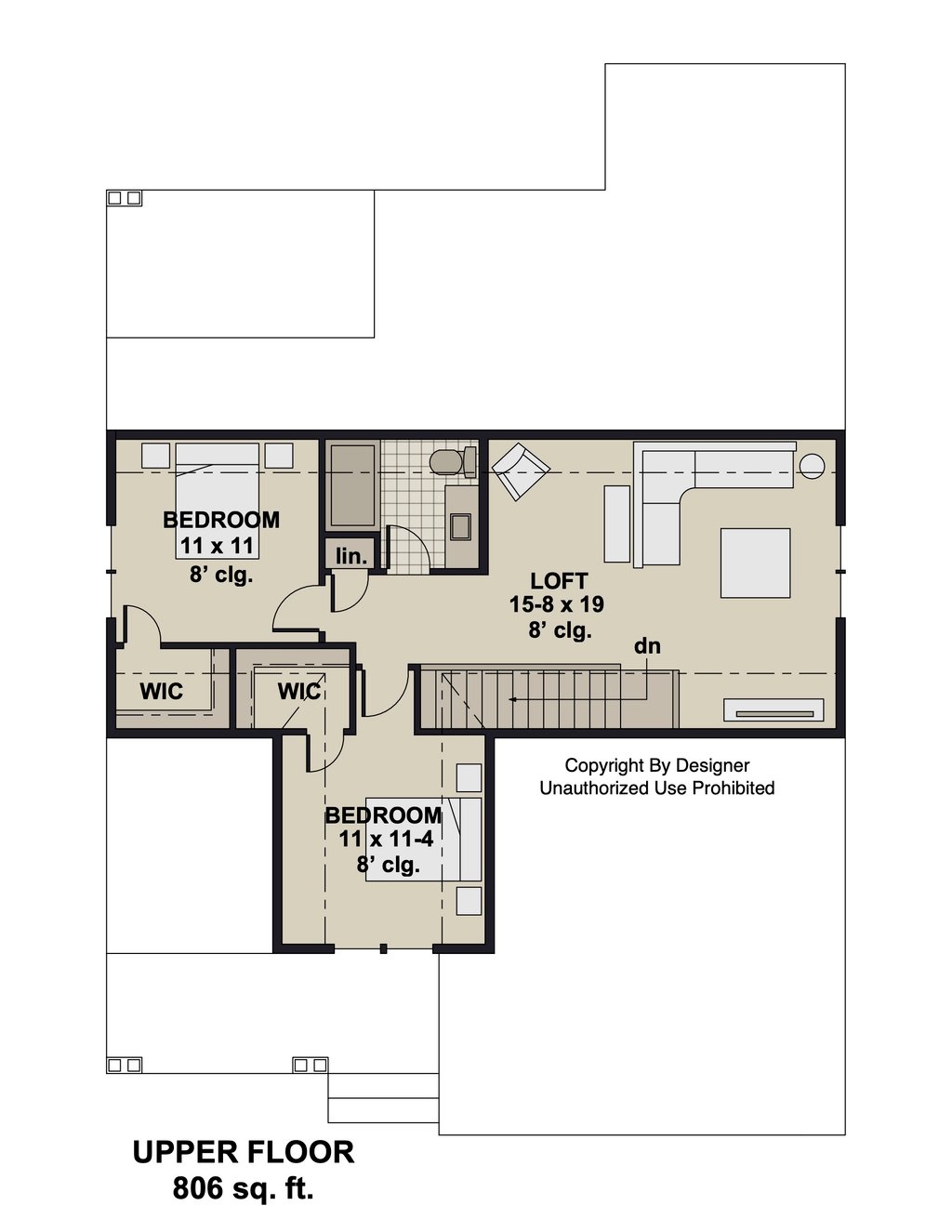

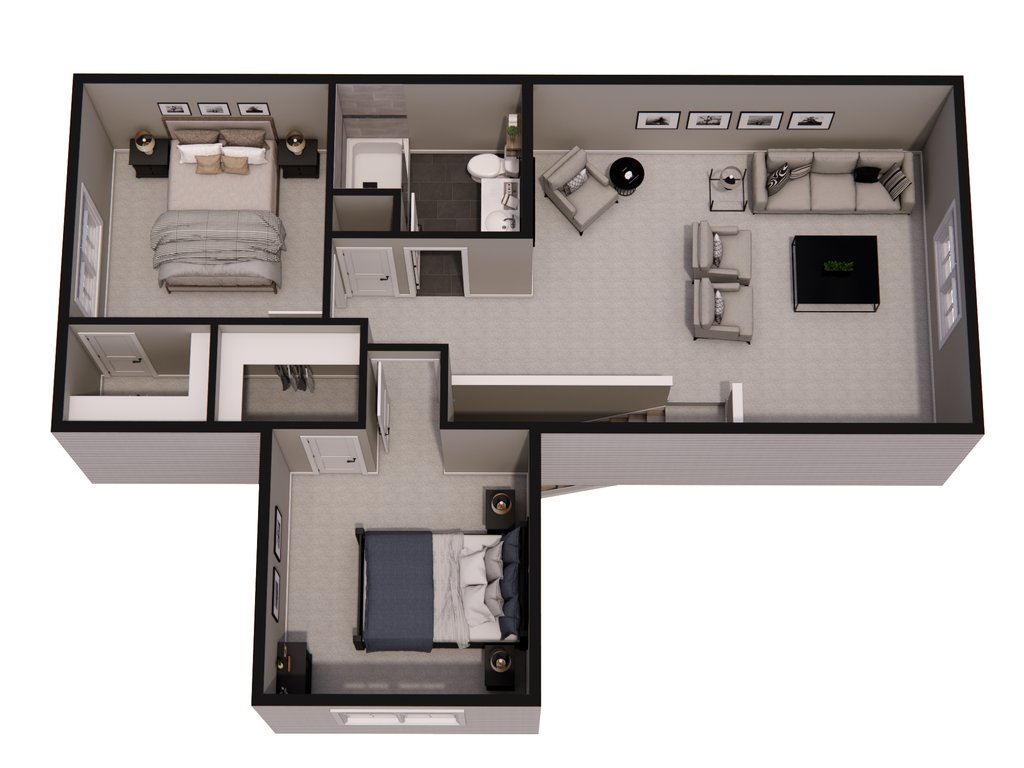

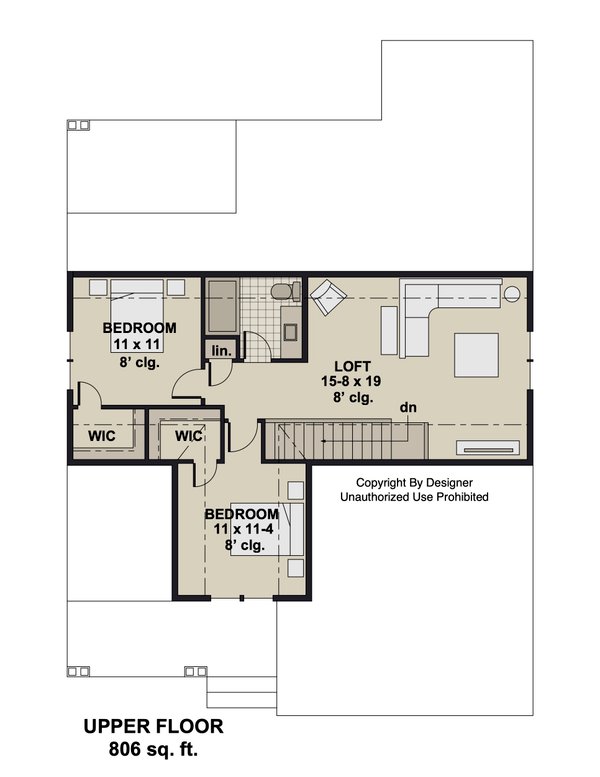

Floor Plan - Upper Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 26'
Width : 40'
Area
Main Floor : 1348 sq/ft
Upper Floor : 806 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Exterior Wall Framing
Framing : 2x6
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): This plan will not contain an electrical layout.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$1725.00
$1725.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1925.00
$1925.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$2025.00
$2025.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set:
$2025.00
$2025.00
8 printed plan sets mailed to you.
CAD Set:
$2450.00
$2450.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$400.00
$400.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$400.00
$400.00
Ideal for level lot, single layer concrete poured directly on grade.
Walk Out Basement:
$400.00
$400.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$250.00
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
