PLAN 455-574
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Welcome to our spacious 12x22 carport with a touch of architectural elegance. This versatile structure seamlessly blends functionality with aesthetic appeal, providing you with a sheltered haven for your vehicle while incorporating a clever use of space. The key feature of this carport is its cathedral ceiling design that spans over the whole structure. This unique architectural element not only enhances the overall visual impact but also serves a practical purpose by allowing for taller vehicles or equipment to be comfortably accommodated. The cathedral ceiling creates an open and airy atmosphere, making the carport feel more like an extension of your home rather than a simple shelter. As you move towards the rear of the carport, you'll discover a dedicated storage space spanning 6 feet. This well-conceived area provides ample room to stow away gardening tools, outdoor equipment, or seasonal items. Cleverly tucked away, the storage space ensures that your belongings remain organized and protected from the elements, all while maximizing the utility of the carport. Crafted with durability in mind, the carport is constructed from high-quality materials that can withstand the rigors of various weather conditions. Its sturdy frame offers robust support, ensuring your vehicles and possessions are shielded from rain, snow, and harsh sunlight. Whether you're looking for a dependable shelter for your cars or an innovative outdoor storage solution, this carport seamlessly combines form and function to meet your needs. Revel in the convenience and elegance this structure brings to your outdoor space, as it offers both practicality and a touch of architectural charm.
Floor Plans

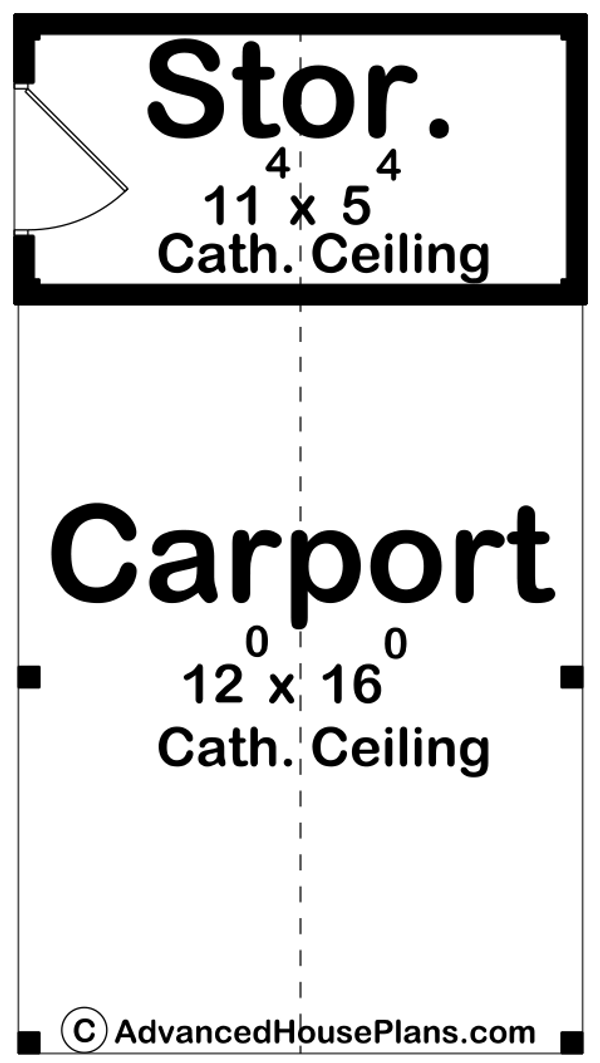

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 22'
Height : 12' 6"
Width : 12'
Area
Main Floor : 72 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The carport and storage area feature cathedral ceilings.
Main Ceiling : 9'
Roof
Primary Pitch : 6/12
Roof Framing : Trusses
Exterior Wall Framing
Framing : Post and Pier
Additional Room Features
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Corner Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$499.00
$499.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$794.00
$794.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$1498.00
$1498.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Pier:
$0.00
$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
