Plan 52-110
2407 sq/ft
4 beds
3 baths
72' wide
67' deep
Plan QR Code
Pricing
Plan Set
5 Copy Set
$792.00
PDF Set
$935.00
Reproducible Set
$935.00
Single Set
$651.00
Foundation
Slab
+$0.00
Additional Construction Sets
Each Additional Set
+$50.00/each
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Lighting Design
Each
$100.00
Mirror Reversed Sets
Each Additional Set
+$0.00

Full Specs & Features


Dimension
Depth : 67'
Height : 30'
Width : 72'
Area
First Floor: 2407 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
More
Jack & Jill Bath
Rooms

Bedroom 2:

154 sq/ft width 11' x depth 14'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Dining Room:

144 sq/ft width 12' x depth 12'

Entry:

84 sq/ft width 7' x depth 12'

Garage:

660 sq/ft width 22' x depth 30'

Great Room:

420 sq/ft width 21' x depth 20'

Kitchen:

169 sq/ft width 13' x depth 13'

Master Bathroom:

112 sq/ft width 8' x depth 14'

Master Bedroom:

240 sq/ft width 15' x depth 16'

Master Closet - Hers:

72 sq/ft width 8' x depth 9'

Master Closet - His:

24 sq/ft width 6' x depth 4'

Nook:

120 sq/ft width 10' x depth 12'

Patio:

77 sq/ft width 7' x depth 11'

Porch - Rear:

160 sq/ft width 20' x depth 8'

Study:

132 sq/ft width 12' x depth 11'

Utility Room:

45 sq/ft width 7' 6" x depth 6'

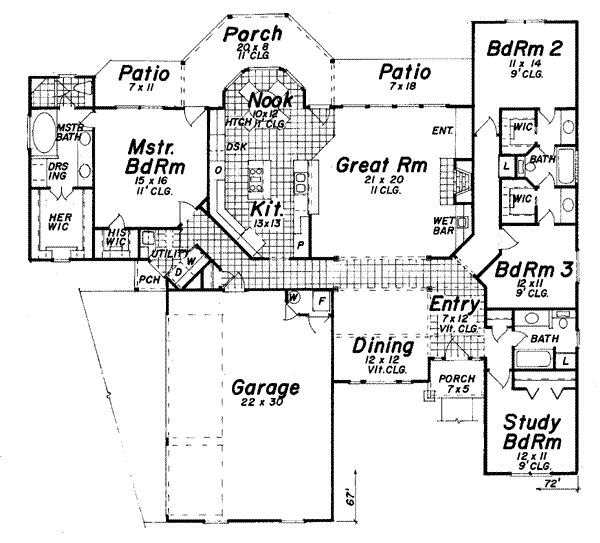

Floor Plan - Main Floor

Home Plan - European Floor Plan - Main Floor Plan #52-110
HomePlans.com
Questions about this plan? Visit HomePlans.com today or call 1-888-447-1946
View this plan at /plan/2407-square-feet-4-bedroom-3-00-bathroom-3-garage-sp127036

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see /help/faq#faq13.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
