Full Specs & Features
Height : 24'
Width : 71' 10"
First Floor: 2684 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Covered Front Porch
Covered Rear Porch
3rd BR Closet:
18 sq/ft width 3' x depth 6'
Basement Foundation:
4998 sq/ft width 71' 10" x depth 69' 7"
Bathroom 2:
144 sq/ft width 9' 4" x depth 15' 6"
Bedroom 2:
159 sq/ft width 13' 4" x depth 12'
Bedroom 3:
164 sq/ft width 13' 4" x depth 12' 4"
Breakfast Room:
139 sq/ft width 13' 4" x depth 10' 6"
Crawlspace Foundation:
4998 sq/ft width 71' 10" x depth 69' 7"
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
105 sq/ft width 7' 6" x depth 14'
Garage:
516 sq/ft width 21' 6" x depth 24'
Garage Storage:
36 sq/ft width 12' 4" x depth 3'
Gathering Room:
384 sq/ft width 18' 4" x depth 21'
Kitchen:
192 sq/ft width 12' x depth 16'
Master Bathroom:
115 sq/ft width 11' x depth 10' 6"
Master Bedroom:
270 sq/ft width 15' 4" x depth 17' 8"
Master Closet:
32 sq/ft width 7' 4" x depth 4' 6"
Porch - Front:
33 sq/ft width 9' 6" x depth 3' 6"
Porch - Rear:
456 sq/ft width 38' x depth 12'
Slab Foundation:
4998 sq/ft width 71' 10" x depth 69' 7"
Study:
149 sq/ft width 10' 8" x depth 14'
Utility Room:
60 sq/ft width 10' x depth 6'

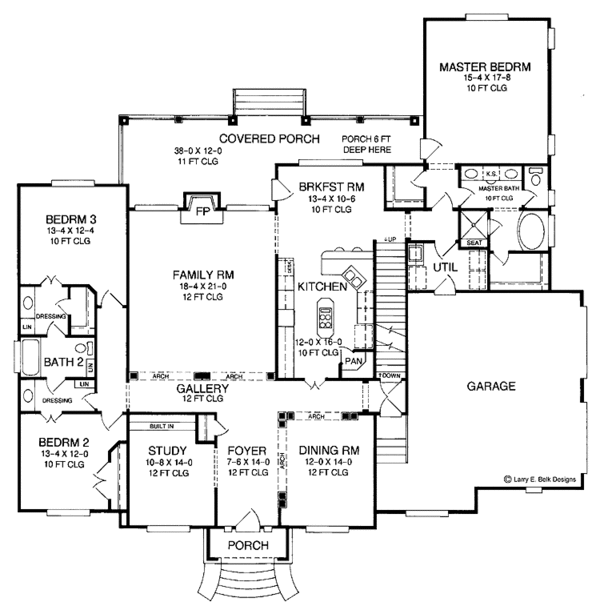

Floor Plan - Main Floor

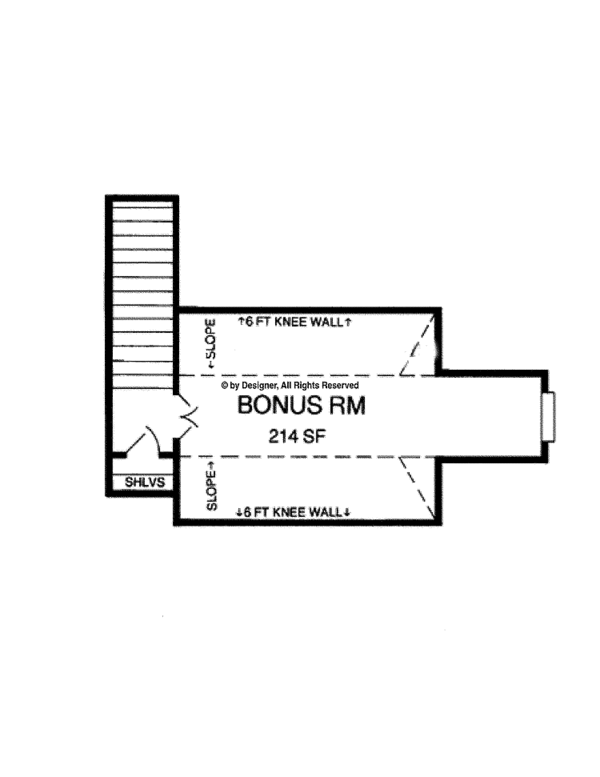

Floor Plan - Other Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
