Height : 38'
Width : 87' 4"
Second Floor: 1087 sq/ft
Roof Framing : Truss
Roof Type : Slate
Framing : 2 x 6
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Family Room Keeping Room
Bedroom 2:
209 sq/ft width 13' 6" x depth 15' 6"
Bedroom 3:
202 sq/ft width 13' 6" x depth 15'
Bedroom 4:
141 sq/ft width 11' 2" x depth 12' 8"
Dining Room:
208 sq/ft width 13' x depth 16'
Foyer:
150 sq/ft width 16' 2" x depth 9' 4"
Garage:
756 sq/ft width 21' 6" x depth 35' 2"
Kitchen:
224 sq/ft width 14' x depth 16'
Living Room:
289 sq/ft width 17' x depth 17'
Master Bedroom:
321 sq/ft width 15' 8" x depth 20' 6"
Master Closet:
46 sq/ft width 9' x depth 5' 2"
Study:
141 sq/ft width 11' 2" x depth 12' 8"

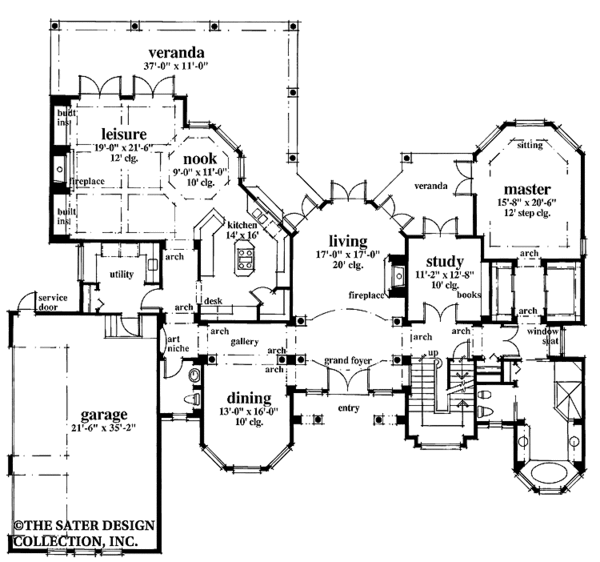

Floor Plan - Main Floor

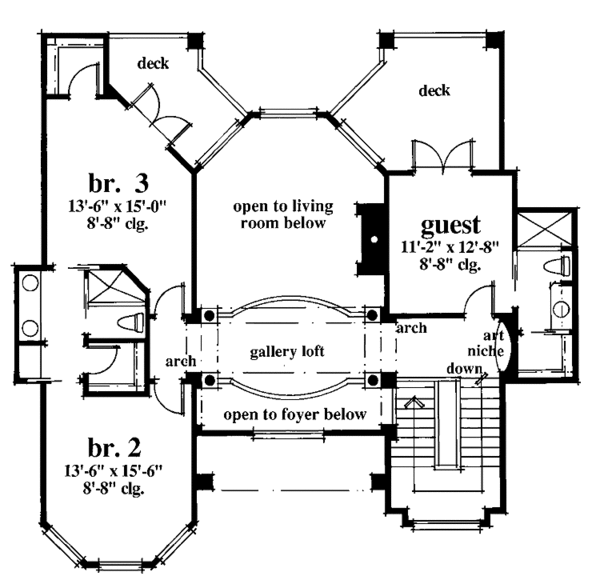

Floor Plan - Upper Floor
Floor Plan - Other Floor
