Full Specs & Features
Height : 34' 11"
Width : 69' 8"
Garage: 1059 sq/ft
Second Floor: 995 sq/ft
Roof Framing : Truss
Roof Type : Shingle
Framing : Block
Guest Suite
Walk In Closet
Kitchen Island
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Bedroom 3:
159 sq/ft width 13' 4" x depth 12'
Bedroom 4:
184 sq/ft width 12' 4" x depth 15'
Breakfast:
182 sq/ft width 13' x depth 14'
Covered Porch:
579 sq/ft width 15' 8" x depth 37'
Dining Room:
168 sq/ft width 12' 4" x depth 13' 8"
Family Room:
376 sq/ft width 17' 8" x depth 21' 4"
Game Room:
302 sq/ft width 20' 2" x depth 15'
Garage:
1063 sq/ft width 48' 4" x depth 22'
Guest Suite:
154 sq/ft width 12' 2" x depth 12' 8"
Kitchen:
266 sq/ft width 16' 4" x depth 16' 4"
Laundry Room:
62 sq/ft width 8' 2" x depth 7' 8"
Library:
216 sq/ft width 16' 8" x depth 13'
Master Bathroom:
195 sq/ft width 15' x depth 13'
Master Suite:
304 sq/ft width 19' x depth 16'
Master Walk-In Closet:
177 sq/ft width 13' 8" x depth 13'

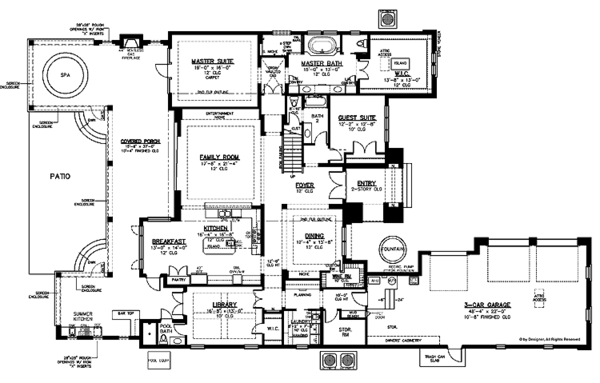

Floor Plan - Main Floor

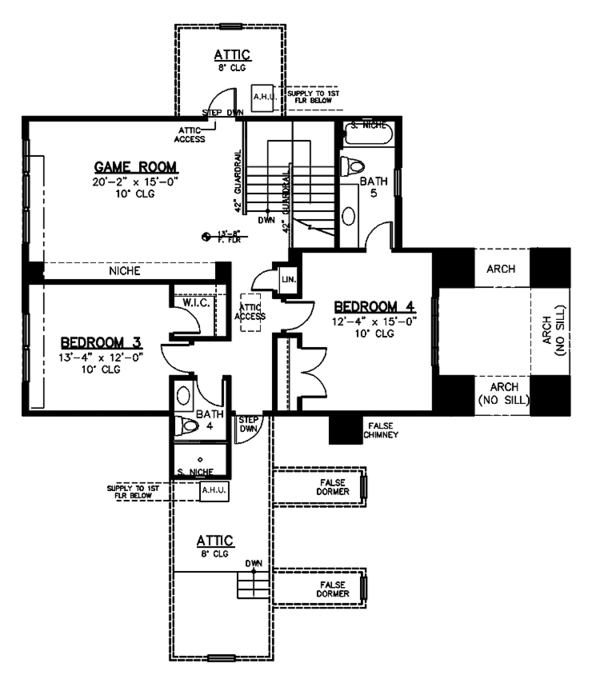

Floor Plan - Upper Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
