Full Specs & Features
Height : 27' 10"
Width : 65'
First Floor: 1622 sq/ft height 9' 1"
Garage: 822 sq/ft
Porch: 62 sq/ft
Second Floor: 1928 sq/ft height 8' 1"
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x6
Formal Living Room / Parlor
Upstairs Master Bedrooms
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Hobby Rec Room Game Room
Open Floor Plan
Upstairs Laundry
Deck
Basement Foundation:
817 sq/ft width 30' 8" x depth 26' 8"
Bedroom 2:
163 sq/ft width 11' 5" x depth 14' 4"
Bedroom 2 Closet:
27 sq/ft width 7' 11" x depth 3' 5"
Bedroom 3:
163 sq/ft width 11' 5" x depth 14' 4"
Bedroom 3 Closet:
24 sq/ft width 7' 8" x depth 3' 2"
Bedroom 4:
219 sq/ft width 13' 4" x depth 16' 6"
Bedroom 4 Closet:
35 sq/ft width 13' x depth 2' 9"
Bonus Room - Finished:
295 sq/ft width 17' 7" x depth 16' 10"
Breakfast Room:
115 sq/ft width 12' 4" x depth 9' 4"
Coat Closet:
20 sq/ft width 11' 10" x depth 1' 9"
Crawlspace Foundation:
537 sq/ft width 31' 2" x depth 17' 3"
Deck:
126 sq/ft width 11' 9" x depth 10' 9"
Dining Room:
168 sq/ft width 14' 1" x depth 12'
Family Room:
313 sq/ft width 19' 6" x depth 16' 1"
Foyer:
88 sq/ft width 9' x depth 9' 10"
Game Room:
270 sq/ft width 13' 5" x depth 20' 2"
Garage:
819 sq/ft width 32' 8" x depth 25' 1"
Hall:
117 sq/ft width 28' 8" x depth 4' 1"
Hall Bathroom:
61 sq/ft width 12' 4" x depth 5'
Kitchen:
190 sq/ft width 13' 6" x depth 14' 1"
Kitchen Island:
28 sq/ft width 4' x depth 7'
Laundry Room:
92 sq/ft width 10' 3" x depth 9'
Linen Closet:
11 sq/ft width 5' 6" x depth 2' 1"
Living Room:
184 sq/ft width 14' 1" x depth 13' 1"
Master Bathroom:
214 sq/ft width 13' 11" x depth 15' 5"
Master Bedroom:
258 sq/ft width 14' 3" x depth 18' 2"
Master Closet:
60 sq/ft width 11' 10" x depth 5' 1"
Master Closet Two:
55 sq/ft width 7' 6" x depth 7' 5"
Pantry:
17 sq/ft width 5' 3" x depth 3' 3"
Porch - Front:
61 sq/ft width 9' 11" x depth 6' 2"
Powder Room:
36 sq/ft width 7' 1" x depth 5' 1"
Slab Foundation:
732 sq/ft width 32' 4" x depth 22' 8"
Storage Closet:
20 sq/ft width 4' 1" x depth 4' 11"
Toilet Closet:
16 sq/ft width 5' 8" x depth 2' 11"
Utility Room:
62 sq/ft width 5' 9" x depth 10' 11"

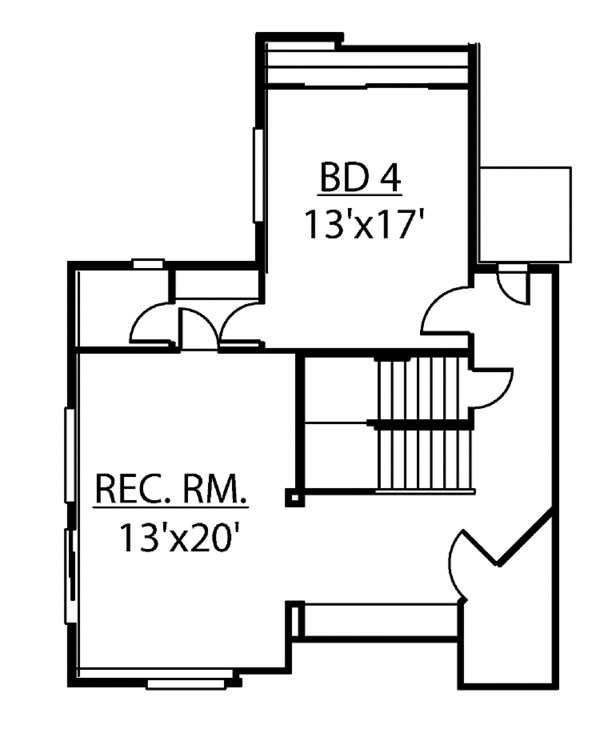

Floor Plan - Lower Floor

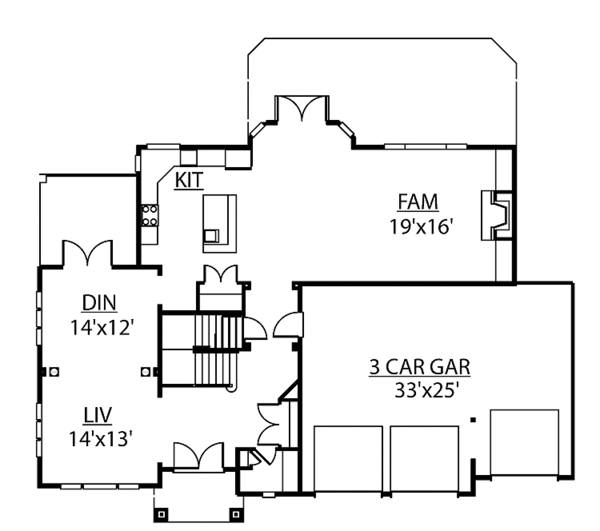

Floor Plan - Main Floor

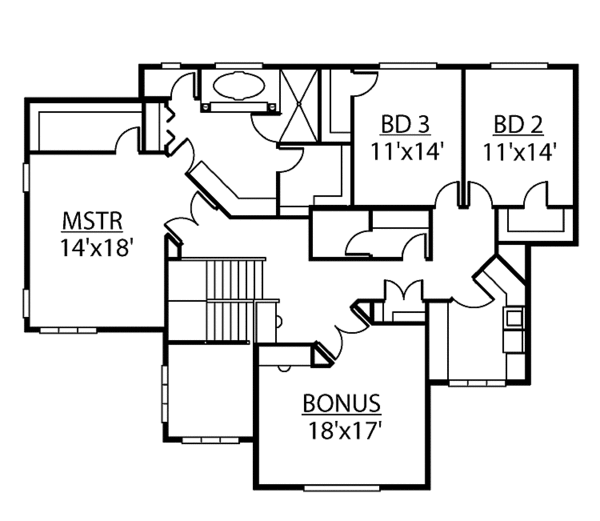

Floor Plan - Upper Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
