View plan at https://www.homeplans.com/plan/5335-square-feet-4-bedroom-5-50-bathroom-3-garage-sp141814
Full Specs & Features
Height : 35'
Width : 95'
Second Floor: 619 sq/ft
Roof Framing : Combination Truss/Conventional
Roof Type : Tile
Framing : Block
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Main Floor Laundry
Master Sitting Area
Deck
Bedroom 2:
171 sq/ft width 14' x depth 12' 3"
Bedroom 3:
170 sq/ft width 14' 2" x depth 12'
Bedroom 4:
549 sq/ft width 25' 2" x depth 21' 10"
Breakfast Room:
99 sq/ft width 9' x depth 11'
Deck:
148 sq/ft width 10' 4" x depth 14' 4"
Dining Room:
208 sq/ft width 15' 10" x depth 13' 2"
Garage:
914 sq/ft width 25' 2" x depth 36' 4"
Kitchen:
317 sq/ft width 17' x depth 18' 8"
Leisure Room:
462 sq/ft width 22' 8" x depth 20' 5"
Loggia:
332 sq/ft width 15' 10" x depth 21'
Master Bathroom:
237 sq/ft width 15' 2" x depth 15' 8"
Master Bedroom:
297 sq/ft width 20' 6" x depth 14' 6"
Master Foyer:
132 sq/ft width 11' x depth 12'
Master Sitting Room:
156 sq/ft width 12' x depth 13'
Study:
247 sq/ft width 15' x depth 16' 6"

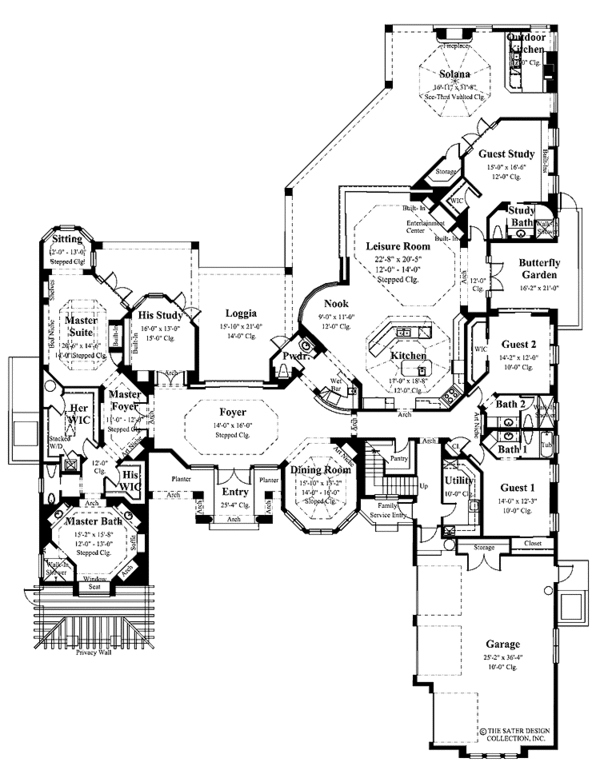

Floor Plan - Main Floor

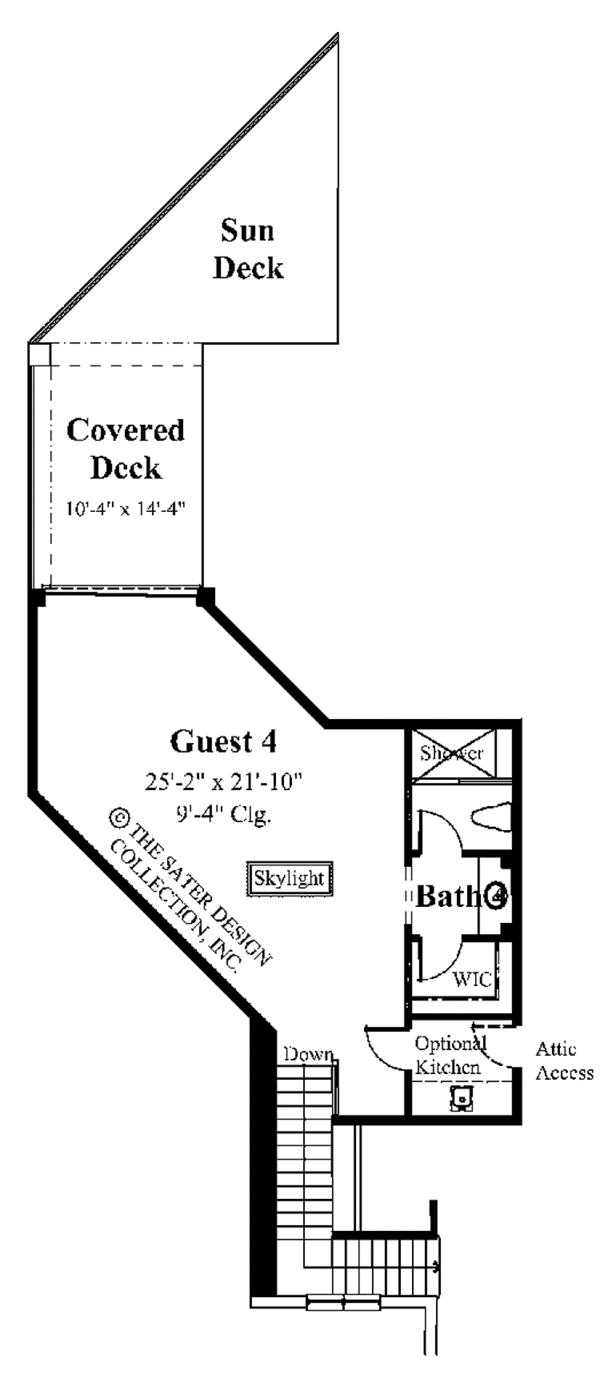

Floor Plan - Upper Floor
View this plan at https://www.homeplans.com/plan/5335-square-feet-4-bedroom-5-50-bathroom-3-garage-sp141814
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see https://www.homeplans.com/help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
