PLAN 47-735
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

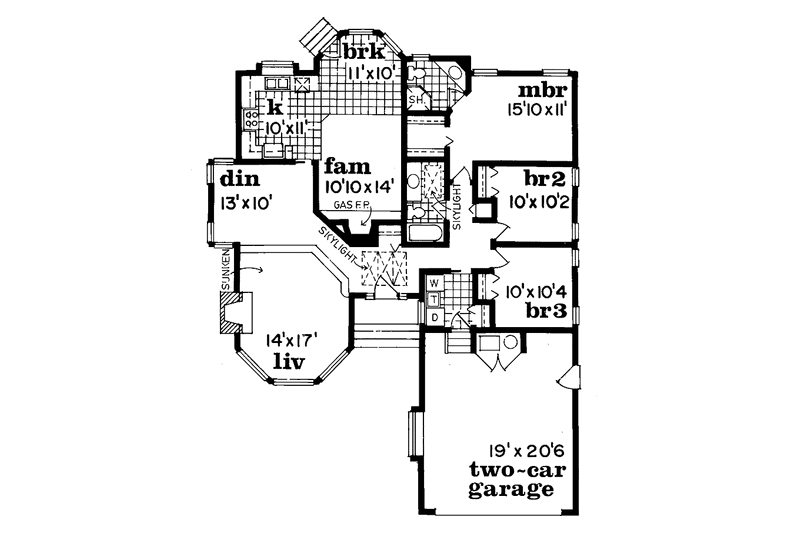

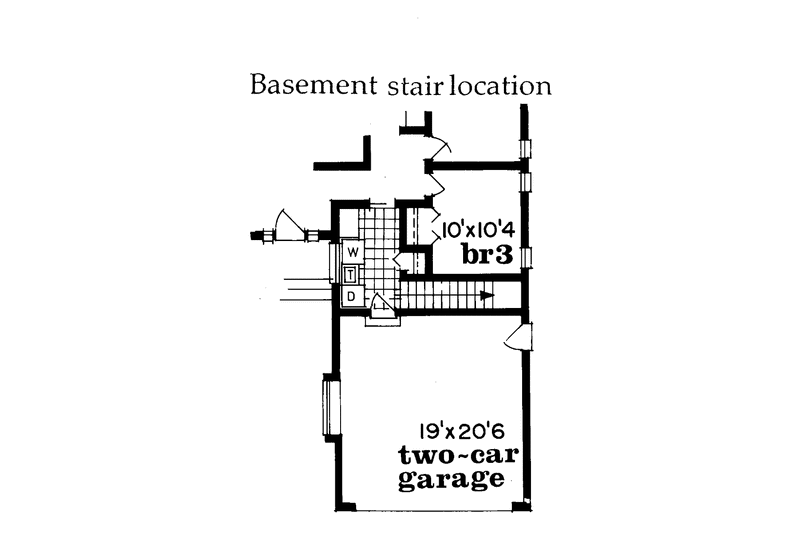

Floor Plans
Full Specs & Features
Dimension
Depth : 62' 6"
Height : 21'
Width : 47'
Area
First Floor: 1592 sq/ft height 8'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Rooms
3rd BR Closet:
8 sq/ft width 2' x depth 4'
Basement Foundation:
2122 sq/ft width 47' x depth 45' 2"
Bedroom 2:
101 sq/ft width 10' x depth 10' 2"
Bedroom 2 Closet:
8 sq/ft width 2' x depth 4' 5"
Bedroom 3:
103 sq/ft width 10' x depth 10' 4"
Bedroom 3 Closet:
8 sq/ft width 2' x depth 4' 5"
Breakfast Room:
110 sq/ft width 11' x depth 10'
Crawlspace Foundation:
2122 sq/ft width 47' x depth 45' 2"
Dining Room:
130 sq/ft width 13' x depth 10'
Foyer:
52 sq/ft width 8' 8" x depth 6'
Garage:
446 sq/ft width 19' x depth 23' 6"
Gathering Room:
154 sq/ft width 11' x depth 14'
Hall Bathroom:
50 sq/ft width 5' x depth 10' 2"
Kitchen:
110 sq/ft width 10' x depth 11'
Living Room:
238 sq/ft width 14' x depth 17'
Master Bathroom:
45 sq/ft width 7' x depth 6' 6"
Master Bedroom:
174 sq/ft width 15' 10" x depth 11'
Master Closet:
30 sq/ft width 5' x depth 6' 2"
Utility Room:
42 sq/ft width 6' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1056.00
$1188.00
$1320.00
$1320.00
$2112.00
Foundation
$0.00
$0.00
$275.00
$275.00
Framing
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$495.00
$39.00
$150.00
$85.00
$0.00
$995.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
