PLAN 70-866
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

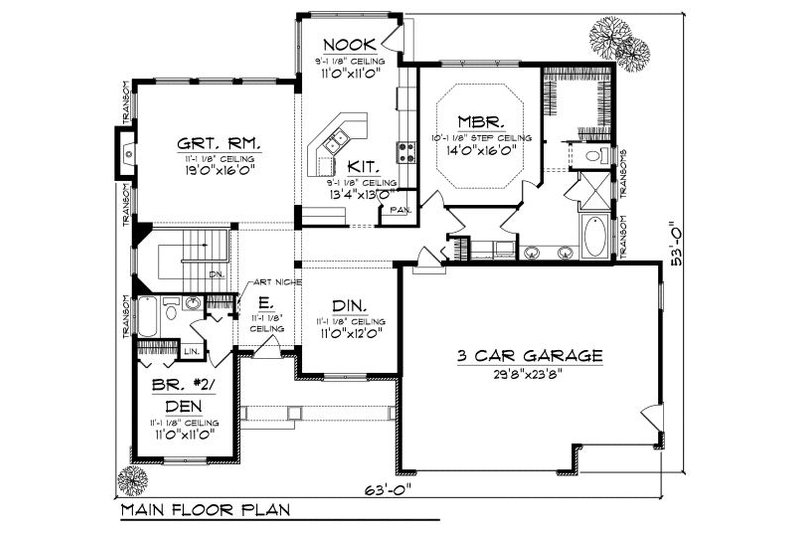

Floor Plans
Full Specs & Features
Dimension
Depth : 53'
Height : 27' 6"
Width : 63'
Area
First Floor: 1829 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Garage Features
Oversized Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bathroom 2:
56 sq/ft width 7' 8" x depth 7' 5"
Bedroom 2 Closet:
9 sq/ft width 4' 8" x depth 2'
Breakfast Nook:
121 sq/ft width 11' x depth 11'
Den/Office or Bedroom 2:
121 sq/ft width 11' x depth 11'
Dining Room:
132 sq/ft width 11' x depth 12'
Foyer:
43 sq/ft width 6' 6" x depth 6' 8"
Garage:
702 sq/ft width 29' 8" x depth 23' 8"
Great Room:
304 sq/ft width 19' x depth 16'
Hall:
19 sq/ft width 3' 2" x depth 6' 1"
Hall:
12 sq/ft width 3' 1" x depth 4'
Hall Closet 1:
6 sq/ft width 3' x depth 2'
Hall Closet 2:
5 sq/ft width 2' x depth 2' 6"
Kitchen:
173 sq/ft width 13' 4" x depth 13'
Laundry Room:
47 sq/ft width 7' 9" x depth 6' 1"
Master Bathroom:
145 sq/ft width 10' 8" x depth 13' 8"
Master Bedroom:
224 sq/ft width 14' x depth 16'
Master Closet:
66 sq/ft width 7' 10" x depth 8' 6"
Pantry:
16 sq/ft width 4' 2" x depth 4'
Porch - Front:
143 sq/ft width 18' 8" x depth 7' 8"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

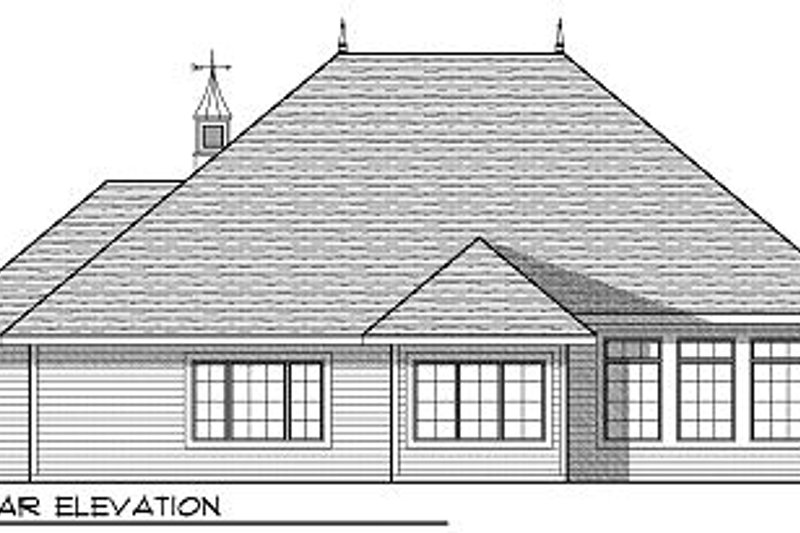

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
