PLAN 118-153
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 37'
Height : 26'
Width : 65' 6"
Area
Basement Unfinished: 1130 sq/ft height 8'
First Floor: 1149 sq/ft height 8'
Second Floor: 1066 sq/ft height 8'
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Loft
Main Floor Laundry
Outdoor Spaces
Balcony
Covered Front Porch
Rooms

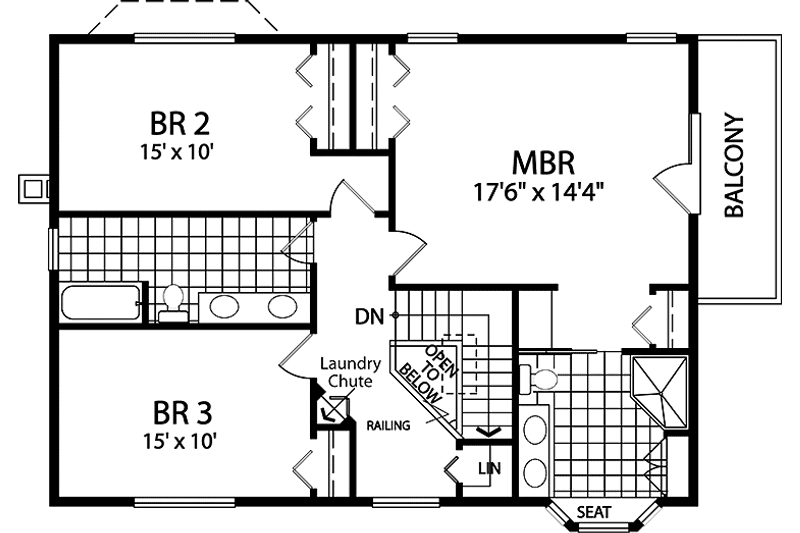

Bedroom 2:
150 sq/ft width 15' x depth 10'
Bedroom 3:
150 sq/ft width 15' x depth 10'

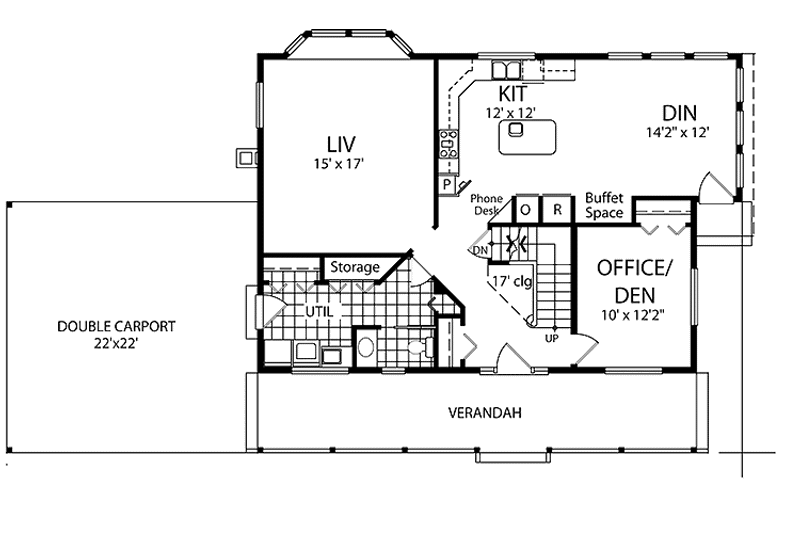

Carport:
484 sq/ft width 22' x depth 22'
Den:
121 sq/ft width 10' x depth 12' 2"
Dining Room:
170 sq/ft width 14' 2" x depth 12'
Kitchen:
144 sq/ft width 12' x depth 12'
Living Room:
255 sq/ft width 15' x depth 17'
Master Bedroom:
250 sq/ft width 17' 6" x depth 14' 4"
What's Included In This Plan Set
- Cover sheet with rendering and art floor plans
- General notes and specifications
- Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
- Foundation plan at 1/4″=1′-0″
- Main floor plan at 1/4″=1′-0″
- Second floor plan at 1/4″=1′-0″, if applicable
- Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
- Electrical floor plans
- Minimum of two cross sections at 1/4″=1′-0″
- Details as required
- All four elevations at 1/4″=1′-0″
- Generic detail sheet
- Plans are engineered by a structural engineer, but not stamped or sealed
- Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
- Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
- Assumed soil bearing capacity 1560 psf
- Electrical fixtures / switches / smoke alarms by location only on floor plans
- Plumbing fixtures by location only on floor plans
- Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
Plan Set
$945.00
Foundation
$0.00
Framing
$0.00
Additional Options
$150.00
$39.00
$100.00
$95.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
