PLAN 20-2070
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

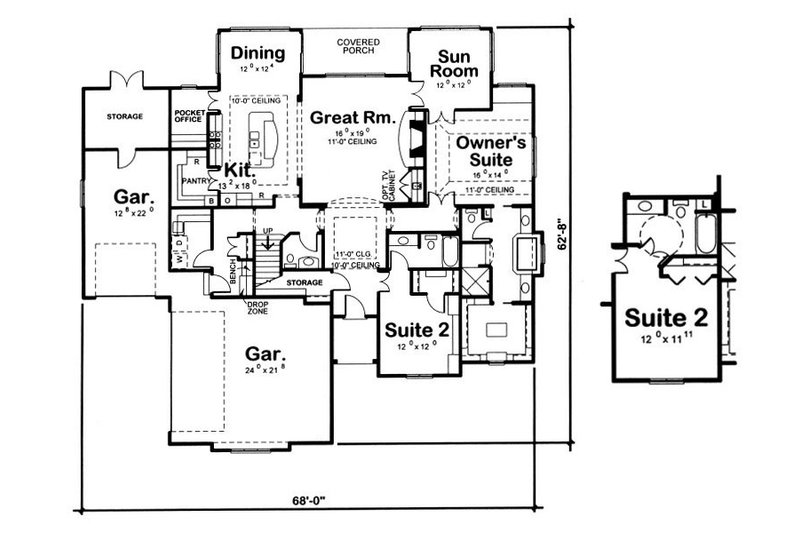

Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 27' 2"
Width : 68'
Area
Bonus: 380 sq/ft height 8'
First Floor: 2279 sq/ft height 9'
Garage: 869 sq/ft height 9'
Porch: 112 sq/ft
Storage: 121 sq/ft
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : stick
Roof Load : 30
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features

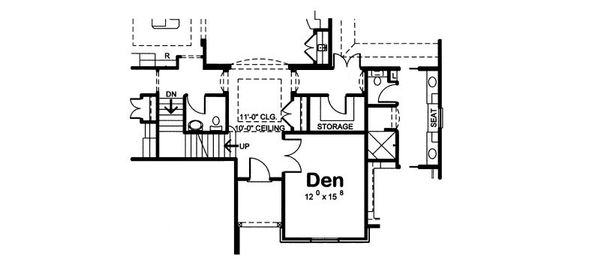

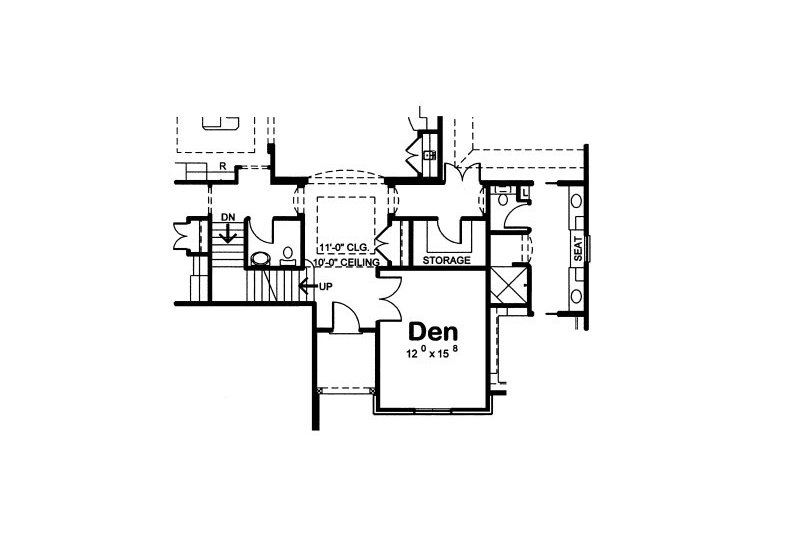

Den Office Study Computer

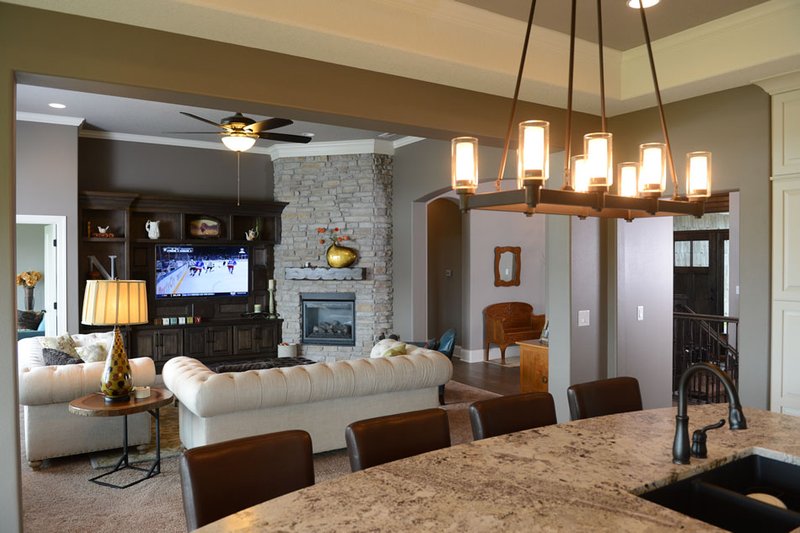

Great Room Living Room
Master Sitting Area
Play Flex Room
Storage Area
Sunroom
Garage Features
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'

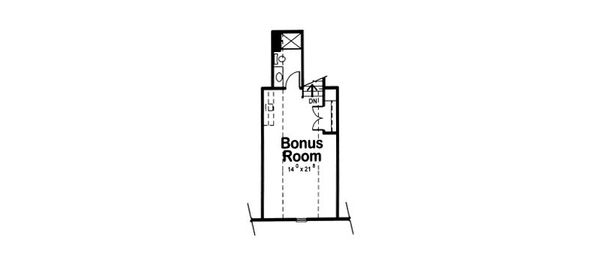

Bonus Room - Unfinished:
303 sq/ft width 14' x depth 21' 8"
Dining Room:
147 sq/ft width 12' x depth 12' 4"
Garage:
520 sq/ft width 24' x depth 21' 8"
Garage Two:
278 sq/ft width 12' 8" x depth 22'
Great Room:
304 sq/ft width 16' x depth 19'

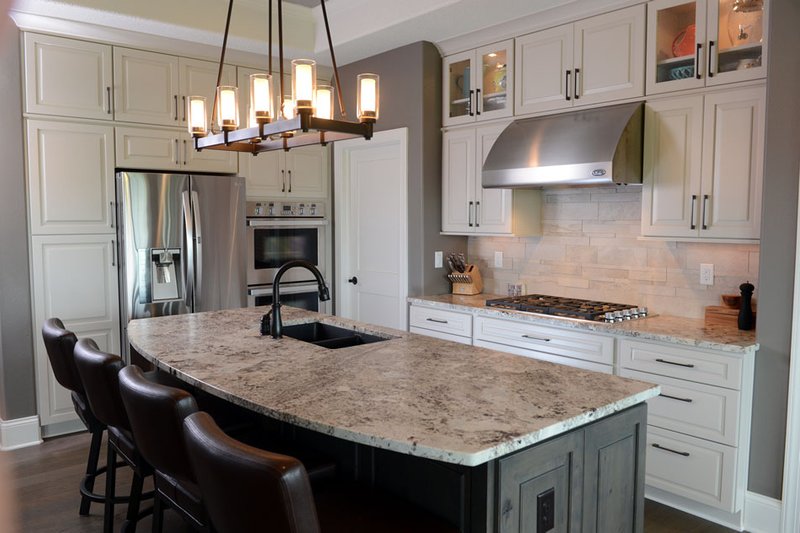

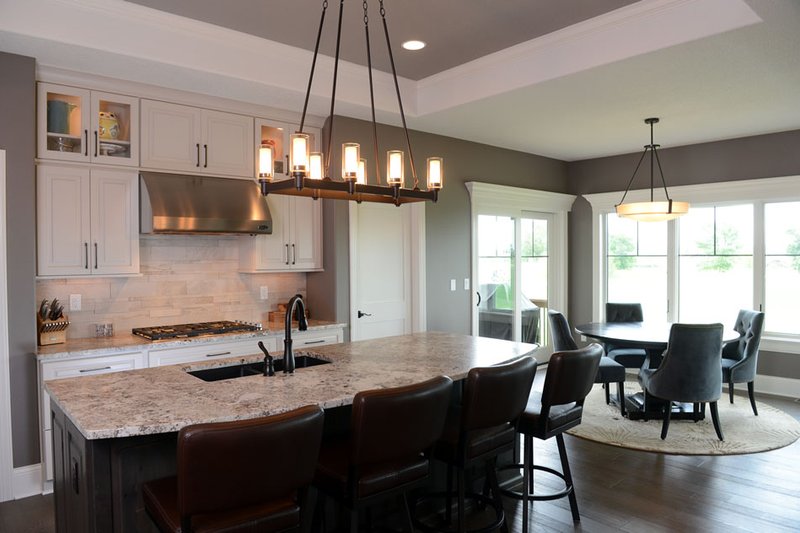

Kitchen:
237 sq/ft width 13' 2" x depth 18'

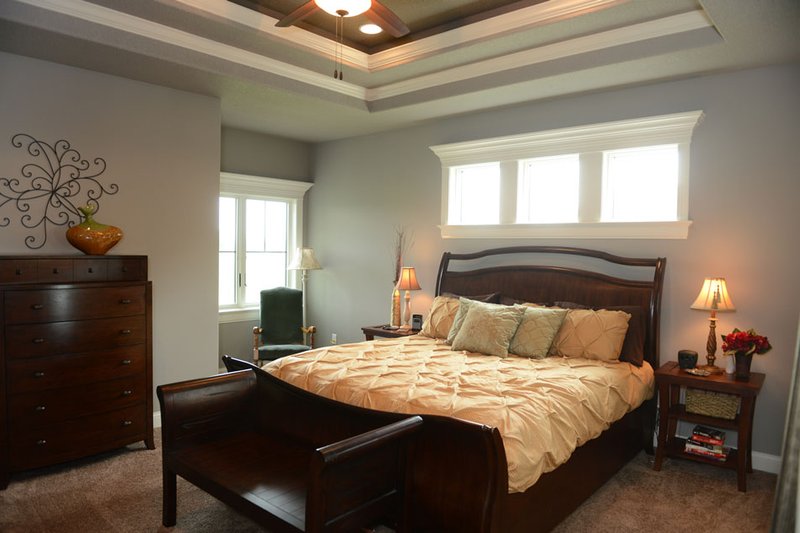

Master Bedroom:
224 sq/ft width 16' x depth 14'
Sun Room:
144 sq/ft width 12' x depth 12'
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

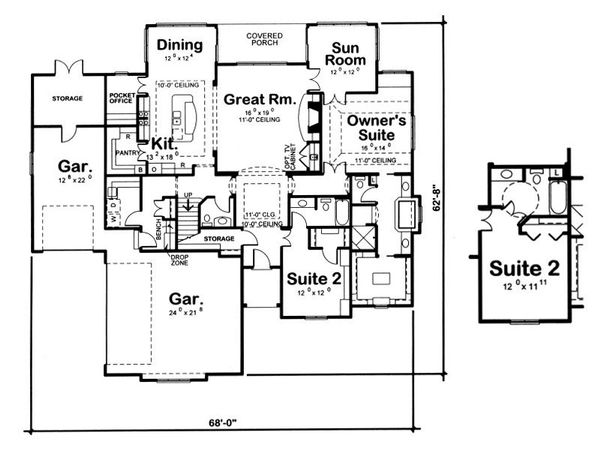

- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$1155.00
$1655.00
$1880.00
$2380.00
Foundation
$0.00
$295.00
$295.00
$390.00
Framing
$0.00
$295.00
Additional Options
$295.00
$250.00
$100.00
$39.00
$195.00
$500.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
