Key Specs
1893
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-308
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

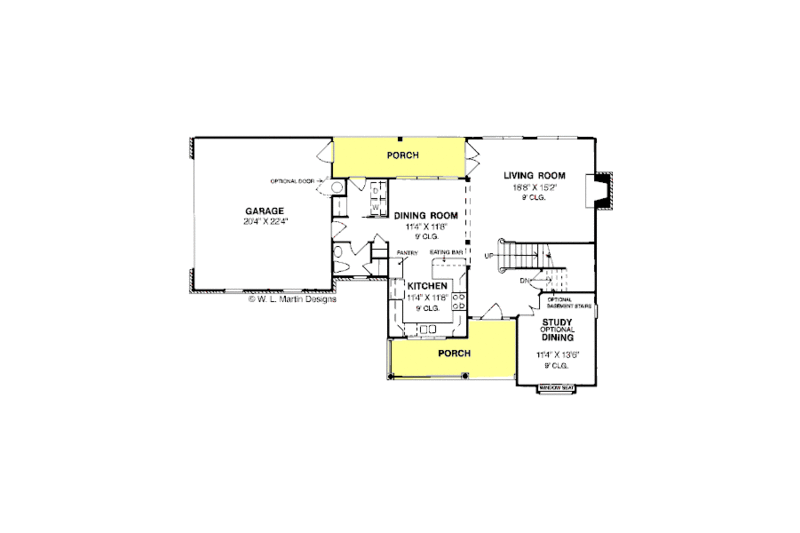

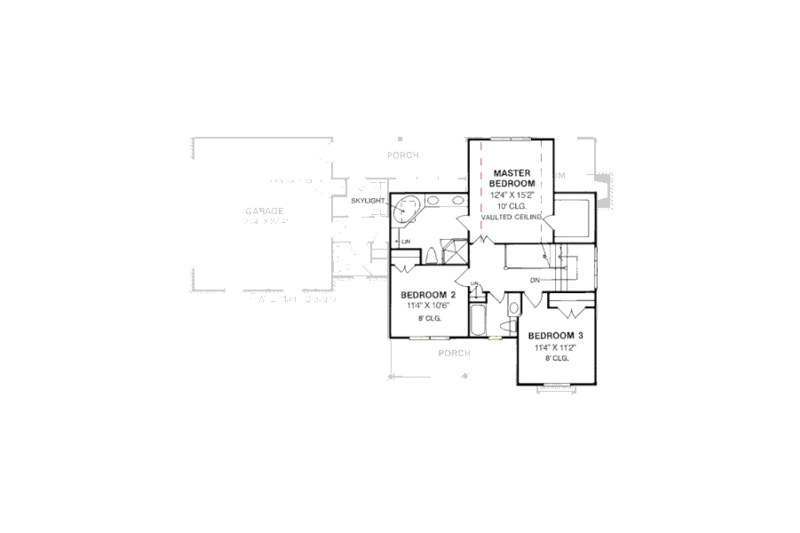

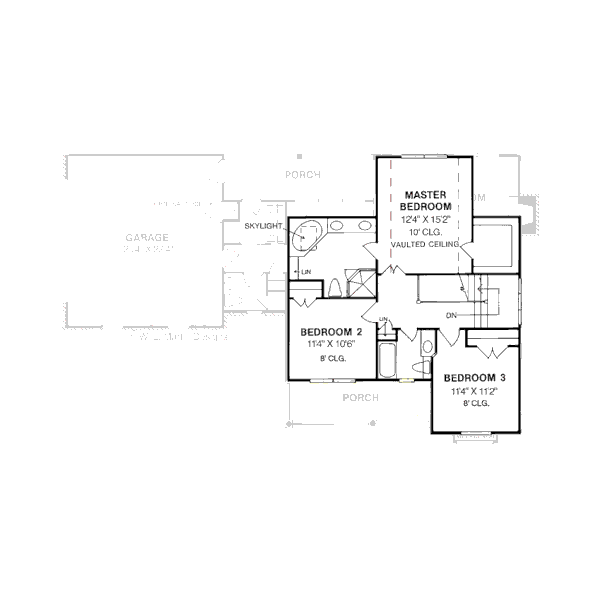

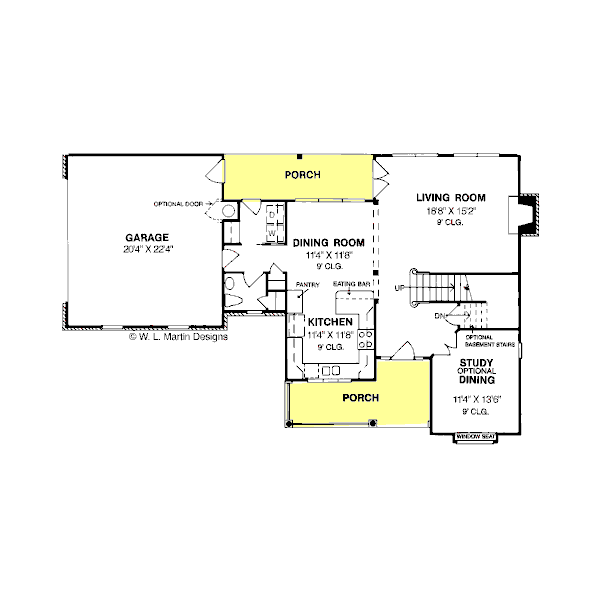

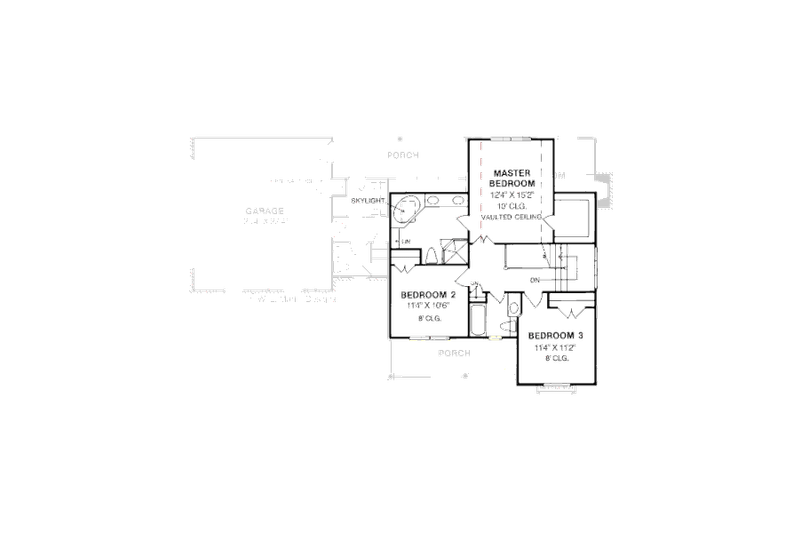

Floor Plans
Full Specs & Features
Dimension
Depth : 37'
Height : 30'
Width : 60'
Area
First Floor: 1035 sq/ft height 9'
Garage: 488 sq/ft
Second Floor: 858 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
25 sq/ft width 5' 4" x depth 4' 10"
Bathroom 3:
45 sq/ft width 7' x depth 6' 6"
Bedroom 2:
118 sq/ft width 11' 4" x depth 10' 6"
Bedroom 3:
126 sq/ft width 11' 4" x depth 11' 2"
Dining Room:
132 sq/ft width 11' 4" x depth 11' 8"
Foyer:
81 sq/ft width 9' x depth 9'
Garage:
454 sq/ft width 20' 4" x depth 22' 4"
Kitchen:
132 sq/ft width 11' 4" x depth 11' 8"
Living Room:
283 sq/ft width 18' 8" x depth 15' 2"
Master Bathroom:
117 sq/ft width 11' 4" x depth 10' 4"
Master Bedroom:
187 sq/ft width 12' 4" x depth 15' 2"
Master Closet:
42 sq/ft width 7' x depth 6'
Study:
152 sq/ft width 11' 4" x depth 13' 6"
Utility Room:
44 sq/ft width 8' x depth 5' 6"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

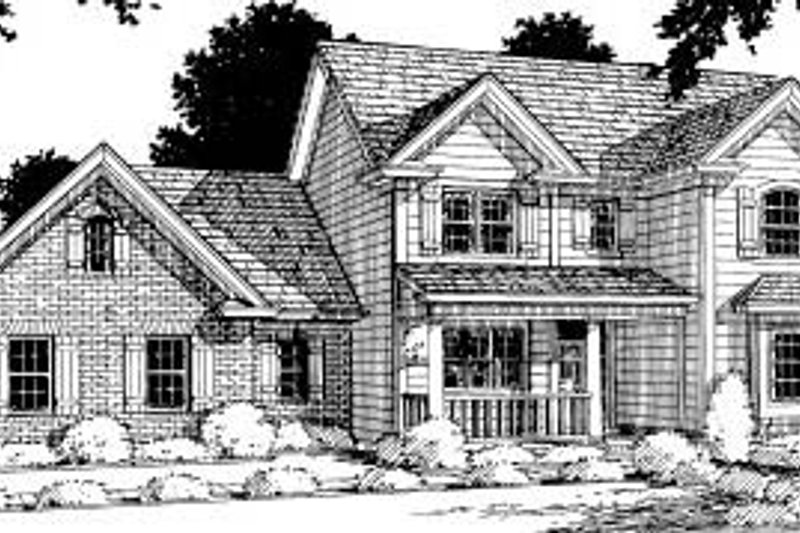

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1005.00
$1300.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
