PLAN 20-336

Photographs may show modified designs.

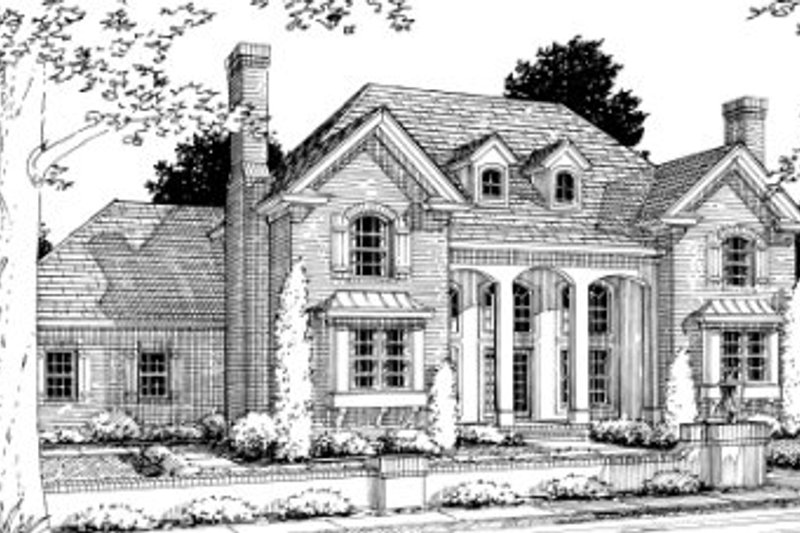

Home Plan - Southern Exterior - Front Elevation Plan #20-336

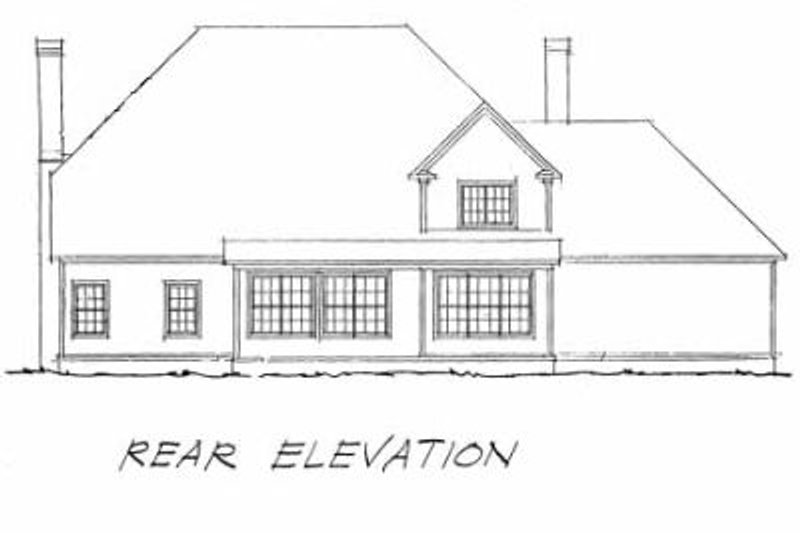

Home Plan - Southern Exterior - Rear Elevation Plan #20-336

Home Plan - Southern Floor Plan - Main Floor Plan #20-336

Home Plan - Southern Floor Plan - Upper Floor Plan #20-336

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Southern

Key Specs

3477
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$335.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1225.00 NOW $1041.25

You save $183.75 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 20-336

Home > Style > Southern

Key Specs

3477
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This southern design floor plan is 3477 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

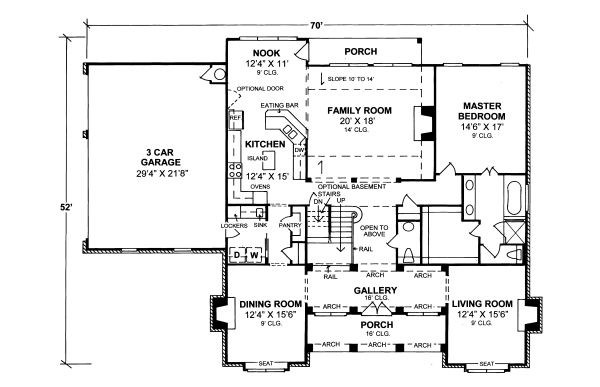

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

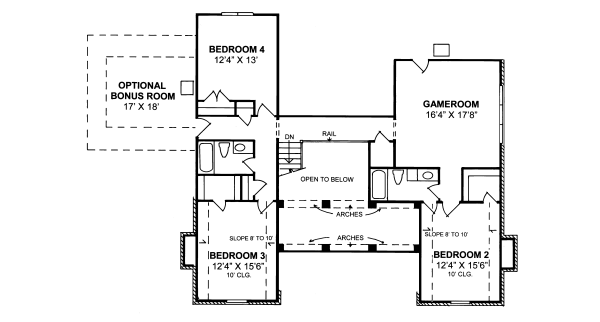

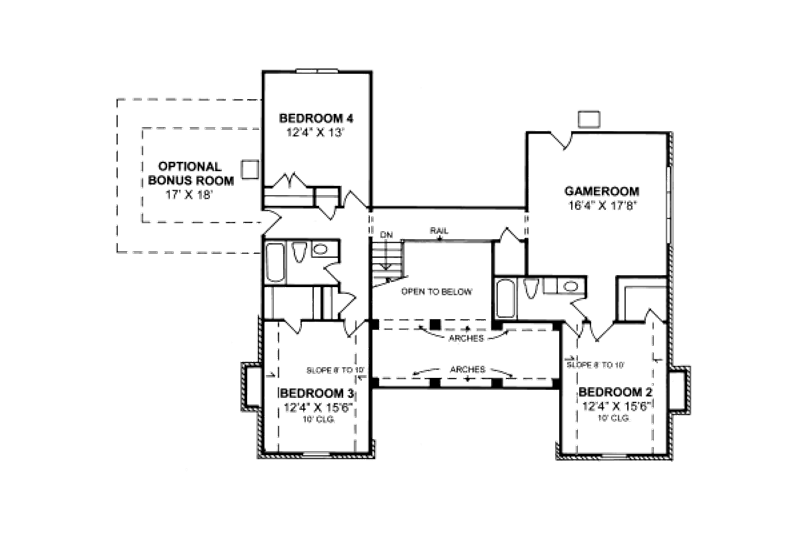

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 48'

Height : 34'

Width : 70'

Area

First Floor: 2180 sq/ft

Second Floor: 1297 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Play Flex Room

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bathroom 2:

24 sq/ft width 3' 6" x depth 7'

Bathroom 3:

43 sq/ft width 8' 8" x depth 5'

Bathroom 4:

52 sq/ft width 10' 6" x depth 5'

Bedroom 2:

191 sq/ft width 12' 4" x depth 15' 6"

Bedroom 3:

191 sq/ft width 12' 4" x depth 15' 6"

Bedroom 4:

160 sq/ft width 12' 4" x depth 13'

Bonus Room - Unfinished:

306 sq/ft width 17' x depth 18'

Dining Room:

191 sq/ft width 12' 4" x depth 15' 6"

Family Room:

360 sq/ft width 20' x depth 18'

Foyer:

165 sq/ft width 22' x depth 7' 6"

Game Room:

288 sq/ft width 16' 4" x depth 17' 8"

Garage:

635 sq/ft width 29' 4" x depth 21' 8"

Kitchen:

184 sq/ft width 12' 4" x depth 15'

Kitchen Island:

6 sq/ft width 2' x depth 3'

Living Room:

191 sq/ft width 12' 4" x depth 15' 6"

Master Bathroom:

140 sq/ft width 10' x depth 14'

Master Bedroom:

246 sq/ft width 14' 6" x depth 17'

Master Closet:

81 sq/ft width 9' x depth 9'

Nook:

135 sq/ft width 12' 4" x depth 11'

Pantry:

10 sq/ft width 2' x depth 5' 4"

Utility Room:

54 sq/ft width 6' x depth 9'

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Questions? Call 1-888-447-1946

Plan Set

PDF Unlimited Build:
$1041.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1292.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$165.75

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$165.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$165.75

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$335.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
