This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Depth : 50'
Height : 24' 8"
Width : 50'
Garage : 2500 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 16'
Primary Pitch : 4/12
Roof Load : 30 psf
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Vertical Metal Siding
Framing : 2x6
Insulation : R-19
Additional Room Features
Front Entry Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

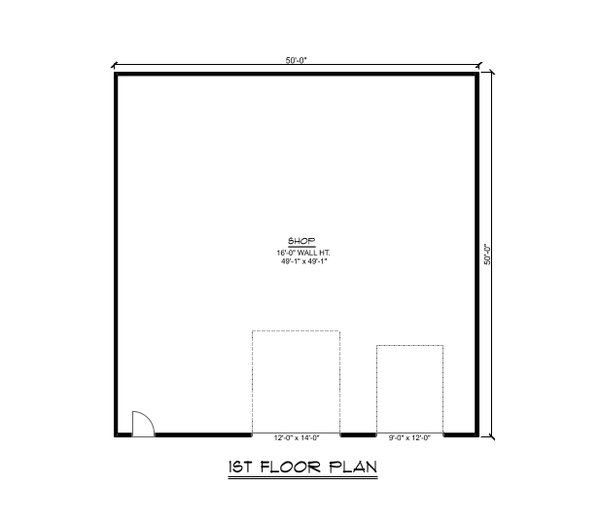

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

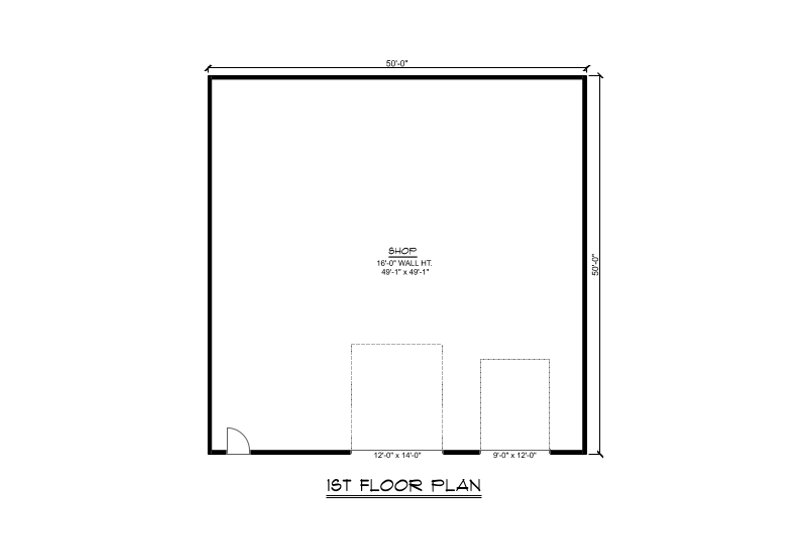

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6 Exterior Walls
Wood 2x4 Exterior Walls
Choose this option to reverse your plans and to have the text and dimensions readable.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
