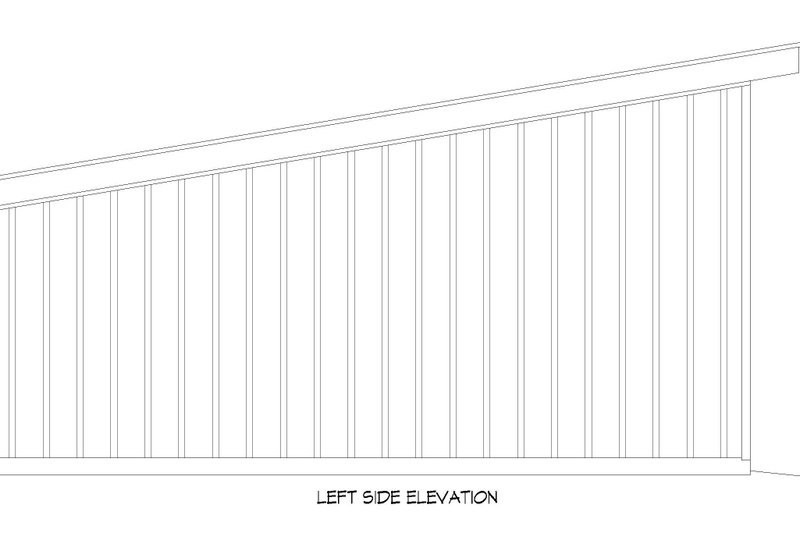

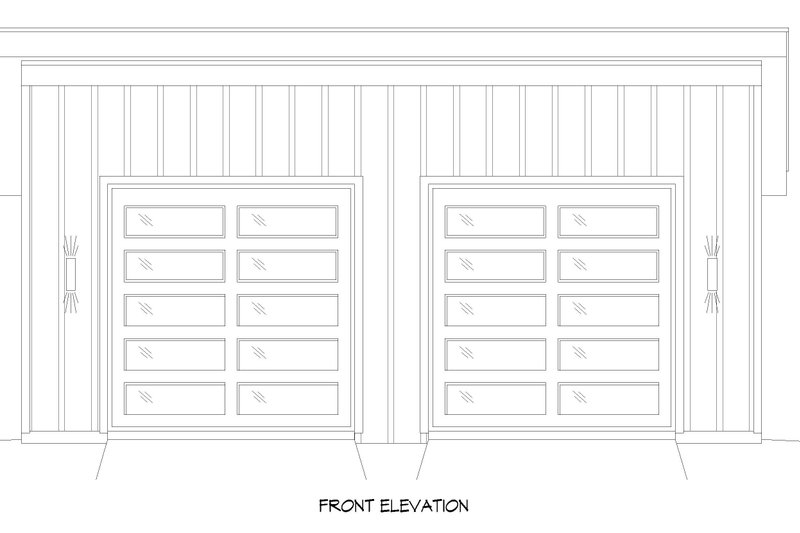

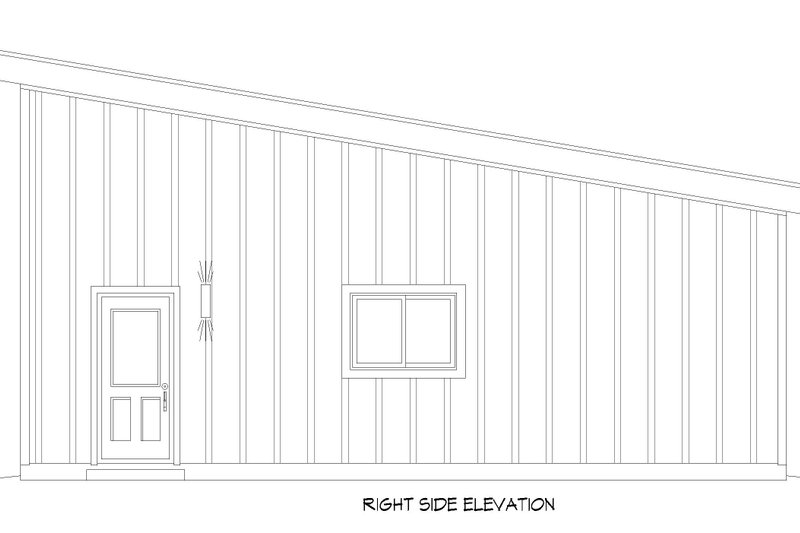

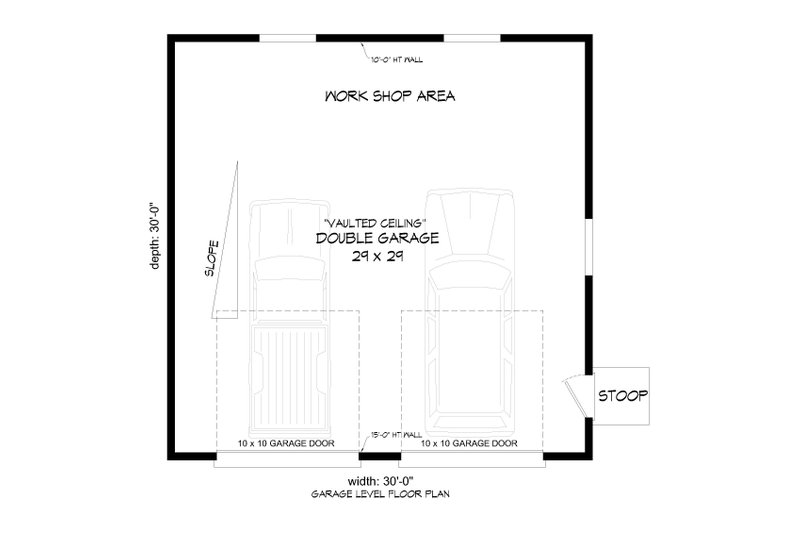

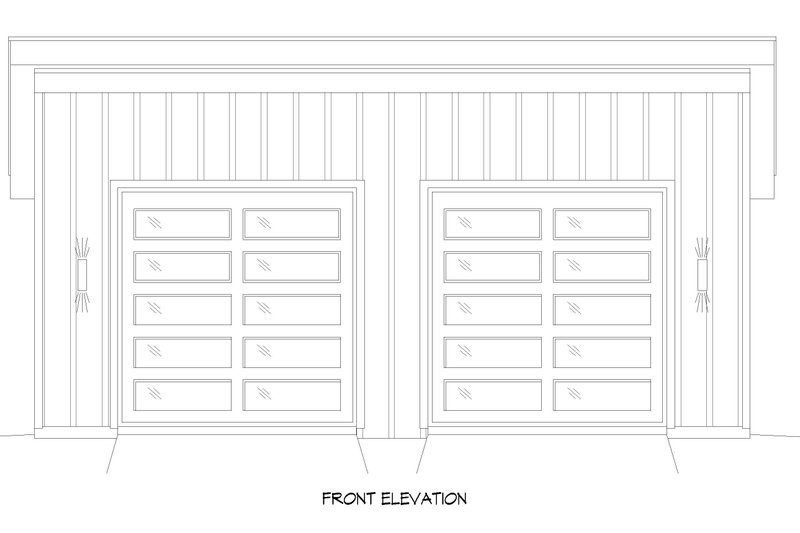

Vaulted double garage with ample space for work shop area. Ceiling height 10'-0" to 15'-0".
Full Specs & Features
Depth : 30'
Height : 16' 4"
Width : 30'
Garage : 900 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Vaulted ceiling height 10'-0" to 15'-0"
Garage Ceiling : 10'
Primary Pitch : 2:12
Roof Framing : Conventional
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
