Full Specs & Features
Depth : 49' 4"
Height : 16'
Width : 34'
Garage : 1000 sq/ft
Porch : 371 sq/ft
Upper Floor : 1000 sq/ft
Ceiling Details : 7' to 13'-6" ht vaulted ceilings up
Main Ceiling : 9'
Primary Pitch : 2:12
Roof Framing : gable
Roof Load : 30
Roof Type : coventional
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Upstairs Master Bedrooms
Additional Room Features
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

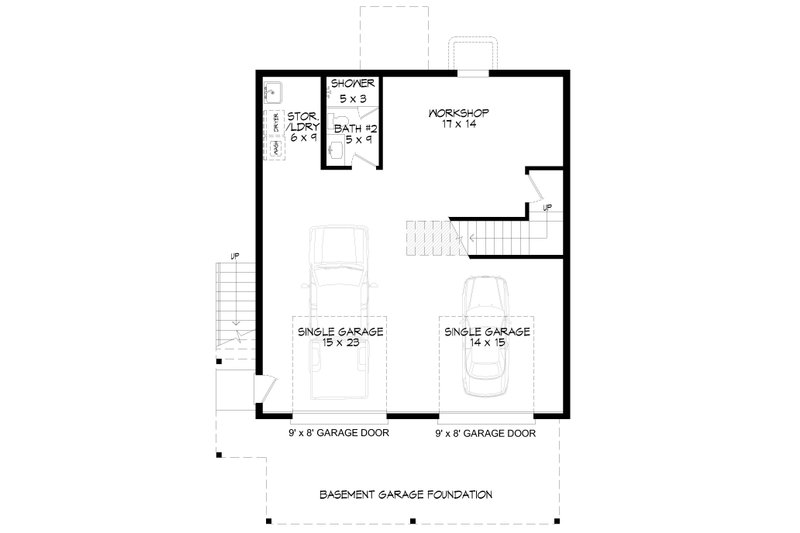

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

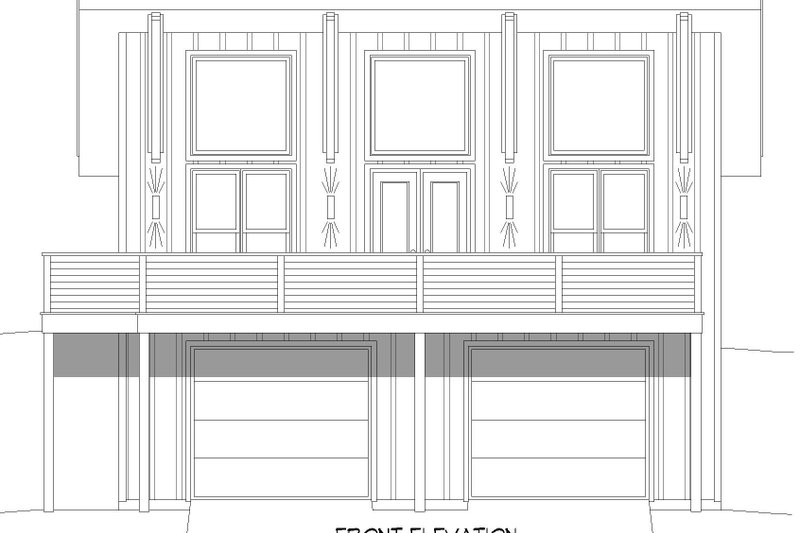

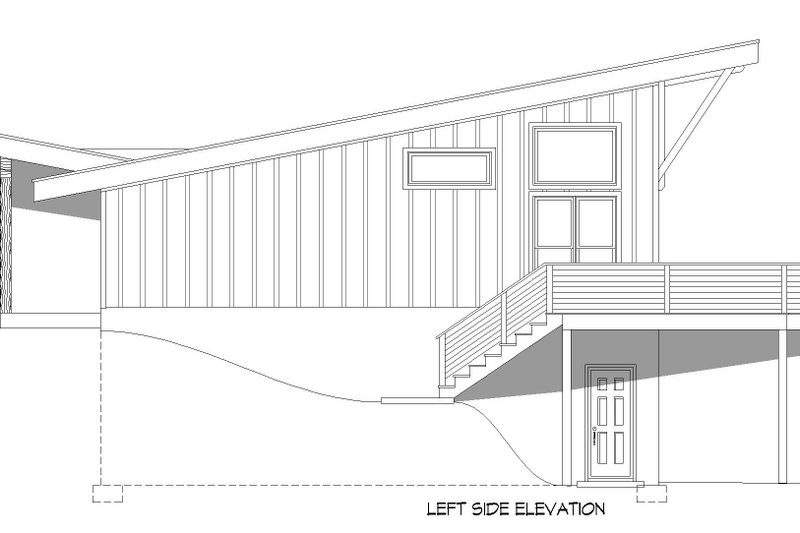

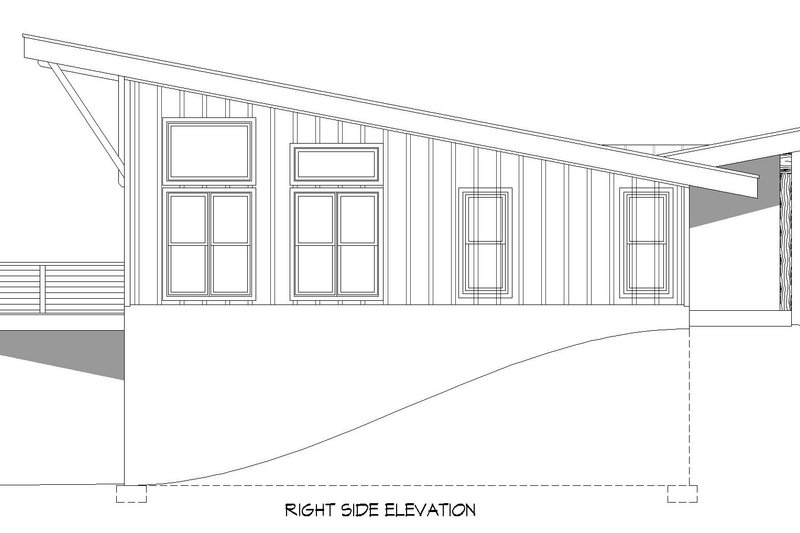

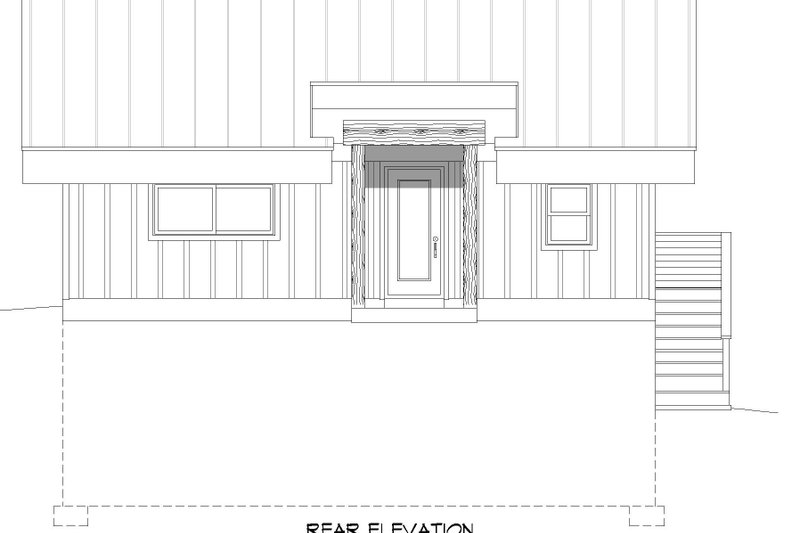

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
