Plan Description
To accommodate a very narrow lot, this plan can be built without the deck and the garage, though the plan includes the options for both. The lower floor can be finished later into a family room and additional bedrooms and a bath. The cathedral entry offers steps up to the main living areas. The living room provides a fireplace and leads to the L-shaped kitchen. Bedrooms include a master suite and two family bedrooms.
Floor Plans

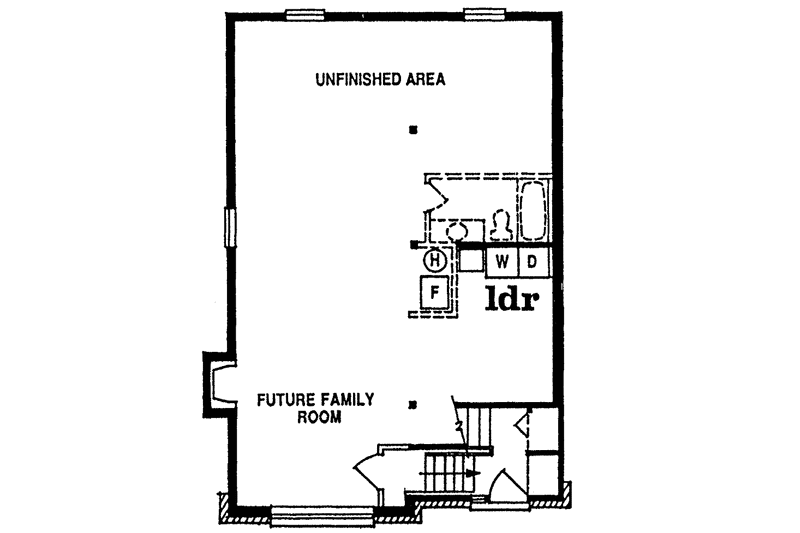

Floor Plan - Lower Floor

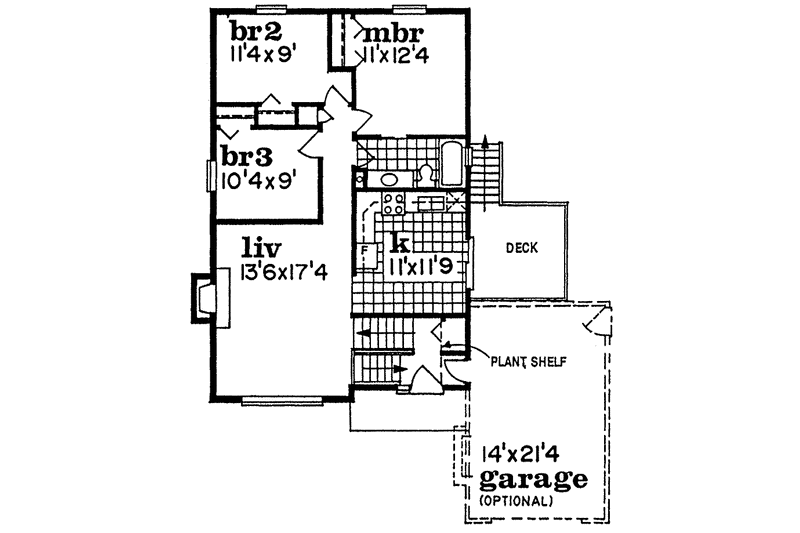

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 39' 4"
Height : 19'
Width : 26'
Area
Basement Unfinished: 1008 sq/ft
First Floor: 1008 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
7 sq/ft width 2' x depth 3' 10"
Basement Foundation:
1022 sq/ft width 39' 4" x depth 26'
Bedroom 2:
101 sq/ft width 9' x depth 11' 4"
Bedroom 2 Closet:
7 sq/ft width 2' x depth 3' 10"
Bedroom 3:
92 sq/ft width 9' x depth 10' 4"
Bedroom 3 Closet:
7 sq/ft width 2' x depth 3' 10"
Deck:
100 sq/ft width 10' x depth 10'
Hall:
21 sq/ft width 6' 10" x depth 3' 1"
Hall Bathroom:
55 sq/ft width 5' x depth 11'
Hall Closet:
6 sq/ft width 3' 4" x depth 2'
Kitchen:
128 sq/ft width 11' 8" x depth 11'
Living Room:
233 sq/ft width 17' 4" x depth 13' 6"
Master Bedroom:
135 sq/ft width 12' 4" x depth 11'
Master Closet:
11 sq/ft width 5' 8" x depth 2'
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

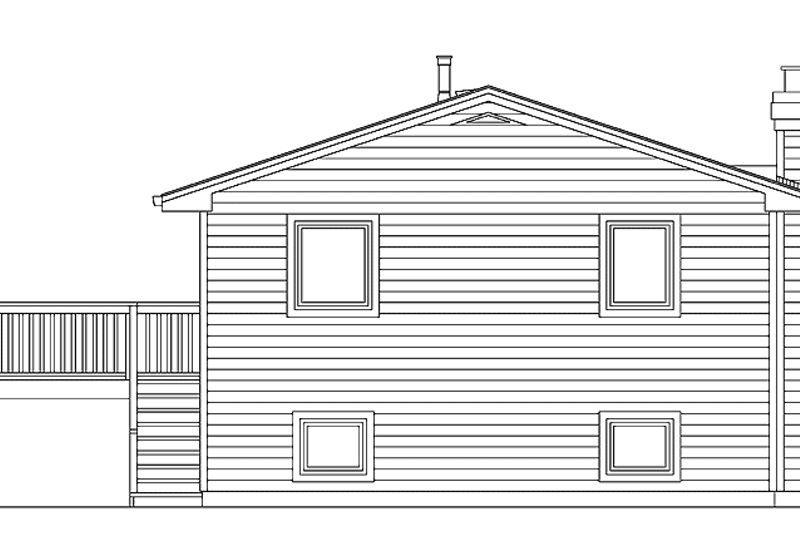

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
