PLAN 112-177

Photographs may show modified designs.

Save
  • Jump to:
  • All (4)
  • Floor plans (2)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

1024
sq ft

Plan Bedrooms

1
Beds

Plan Bathrooms

1
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$75.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$950.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 112-177

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

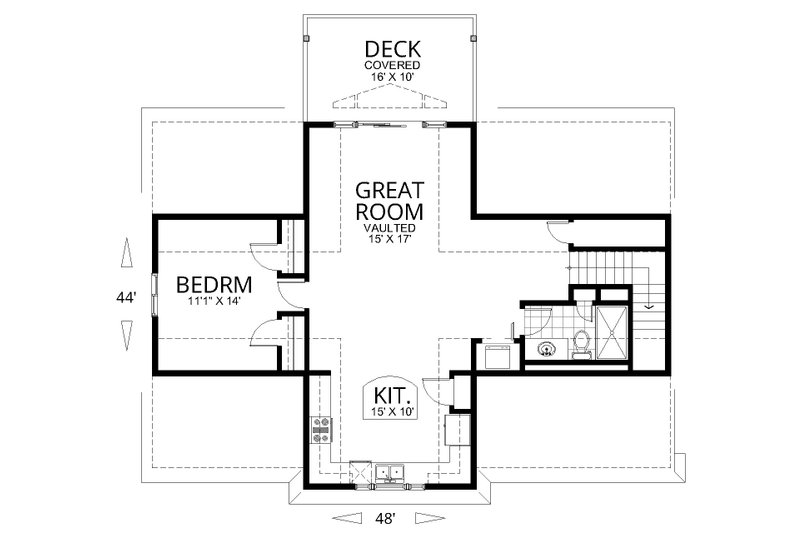

- Detailed accents enhance the beauty of this craftsman style home. - An over-sized Garage makes a perfect staging area for the construction of your dream home. - The huge open Kitchen features an island with eating bar, a pantry and tons of cabinets. - Vaulted ceilings throughout the living space are enhanced by transom windows in the Great Room. - The Covered Deck is a perfect place to hang out and enjoy the view. - The Bedroom features two closets. - A stacking washer and dryer is located in a closet.

Full Specs & Features


Dimension

Depth : 46'

Height : 23' 8"

Width : 28'

Area

Decks : 160 sq/ft

Garage : 1596 sq/ft

Main Floor : 1596 sq/ft

Porch : 16 sq/ft

Upper Floor : 1024 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Upper floor has 7'-0" at wall sloping to 9'-6" at interior ridge

Garage Ceiling : 9' 6"

Main Ceiling : 9'

Upper Ceiling Ft : 7'

Roof

Primary Pitch : 8/12

Roof Framing : Roof Trusses-Scissor Trusses

Roof Load : 40 L.L. /15 D.L.

Roof Type : Standard/Scissor

Exterior Wall Framing

Exterior Wall Finish : Lap siding, Shakes, Stone

Framing : 2x6

Insulation : R-21

Bedroom Features

Upstairs Bedrooms

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Upstairs Laundry

Workshop

Garage Features

Front Entry Garage

Garage Under

Oversized Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Grill Deck Sundeck

More

Economical To Build

Empty Nester

Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set


    Exterior Elevations:
    • Front, Rear, and Side Elevations
    • Scale 1/4" = 1'-0"
    • Roof Slopes

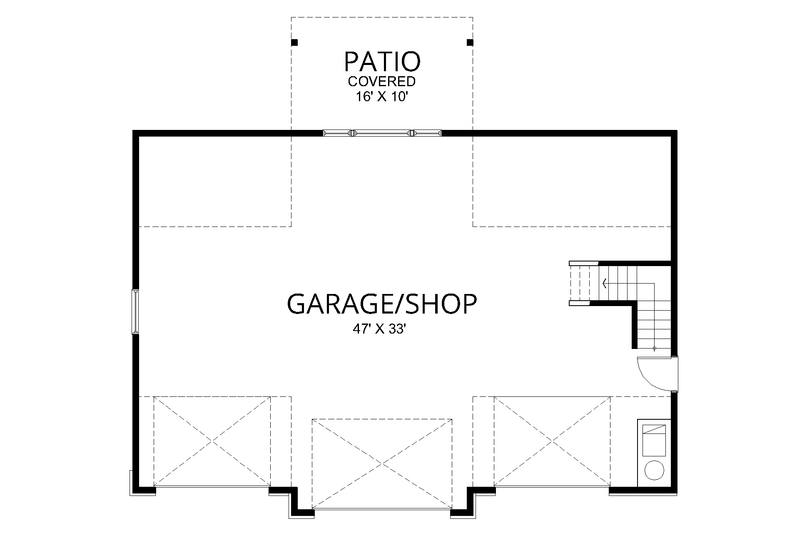

    Floor Plans:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • Beam and Header Sizes
    • Door and Window Sizes
    • Ceiling Details
    • Floor & Deck Joist Size & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    • Square Footage of Floor Area, Garage, Decks, and Patios
    Foundation Plan:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • All Foundation Wall and Footing Sizes
    • Beam and Header Sizes
    • Door and Window Sizes
    • Floor & Deck Joist Sizes & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    Roof Framing Plan:
    • Scale 1/4" = 1'-0"
    • All Framing Members Type and Size
    • All Beam & Header Sizes & Locations
    • Truss Hangers
    • Roof Lines, Ridges, Valleys, & Hips
    • Notes Pertaining to Code Requirements
    • Over-Framed or Over-Build Areas
    • Girder and Hip Master Truss Locations
    • Raised and Lowered Plate Heights
    Building Sections:
    • Scale 1/4" = 1'-0"
    • Roof Trusses and Rafter Framing
    • Beam Connections and Locations
    • Special Framing Details
    • Plate Heights and Foundation Wall Heights
    • Roof Slopes and Construction Materials
    • Structural Members
    Braced Wall Panel Plans: May Require Local Engineering
    • Scale 1/4" = 1'-0"
    • Braced Panel Locations
    • Alternate Braced Panel Locations
    • Engineered Panel Locations
    • Alternate Braced Panel Details
    • Braced Panel Notes and Tables
    Wall Sections:
    • Scale 1/2" = 1'-0"
    • All Materials and Construction Notes
    • Insulation Requirements
    Stair Detail:
    • Scale 1/2" = 1'-0"
    • Section Through Stairway
    • Notes Pertaining to Code Requirements
    • Floor to Floor Heights
    • Rise and Run Dimensions
    Cabinet Elevations:
    • Scale 3/8" = 1'-0"
    • Dimensions and Details of All Cabinets
    • Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1200.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1400.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD Single Build:
$1400.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Unlimited Build:
$1700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$2100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
