Full Specs & Features
Depth : 33'
Height : 22' 11"
Width : 38'

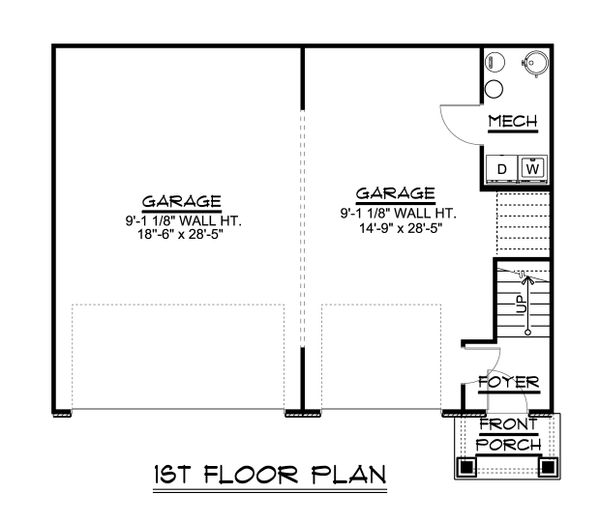

Garage : 1064 sq/ft
Porch : 32 sq/ft

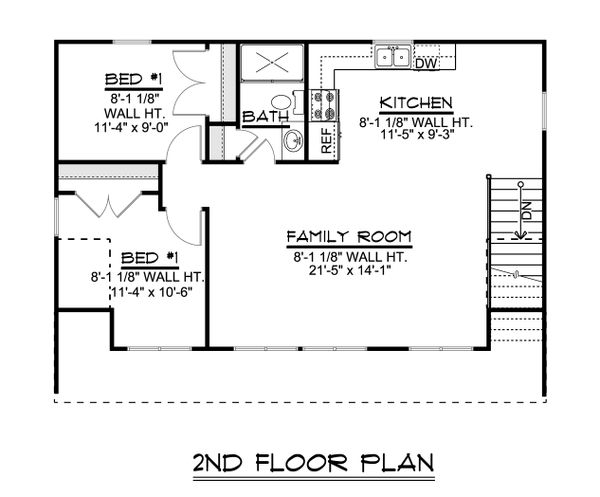

Upper Floor : 886 sq/ft
Garage Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Primary Pitch : 10/12
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Shingles
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Insulation : R-13
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Front Entry Garage
Suited For Narrow Lot
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
