Full Specs & Features
Depth : 48'
Height : 31'
Width : 28'
First Floor: 135 sq/ft
Garage: 700 sq/ft

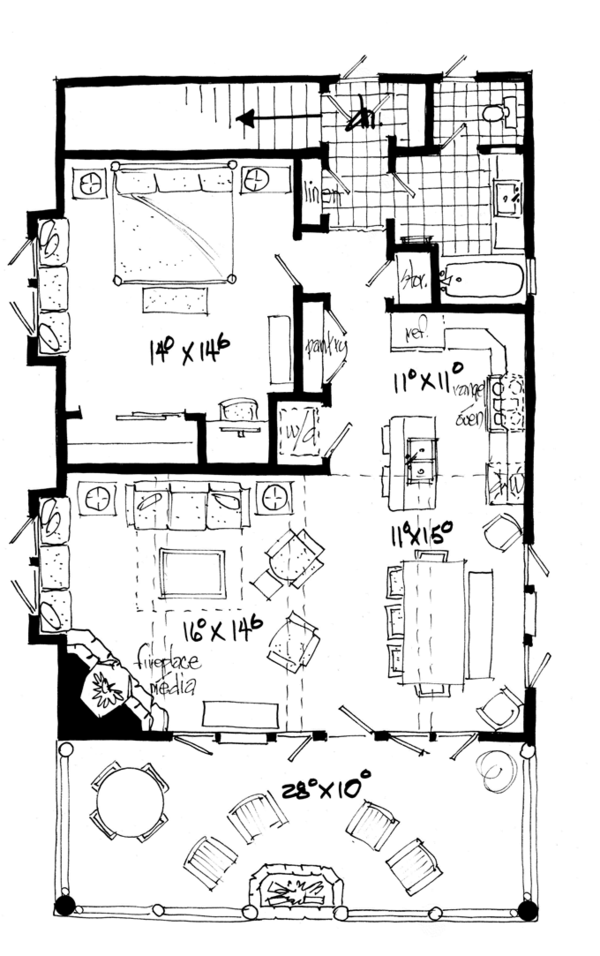

Second Floor: 1025 sq/ft
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6 Wood - 2x4
Upstairs Master Bedrooms
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Front Entry Garage
width 14' x depth 14' 6"
width 11' x depth 15'

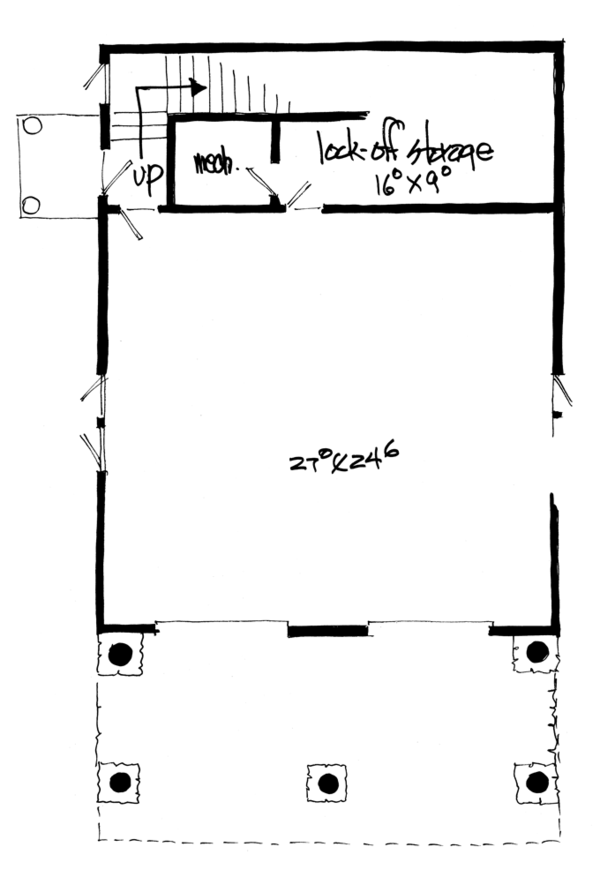

700 sq/ft width 27' x depth 24' 6"
width 16' x depth 14' 6"
width 11' x depth 11'
Side Entry Porch:
width 16' x depth 9'
Upper Level Deck:
280 sq/ft width 28' x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

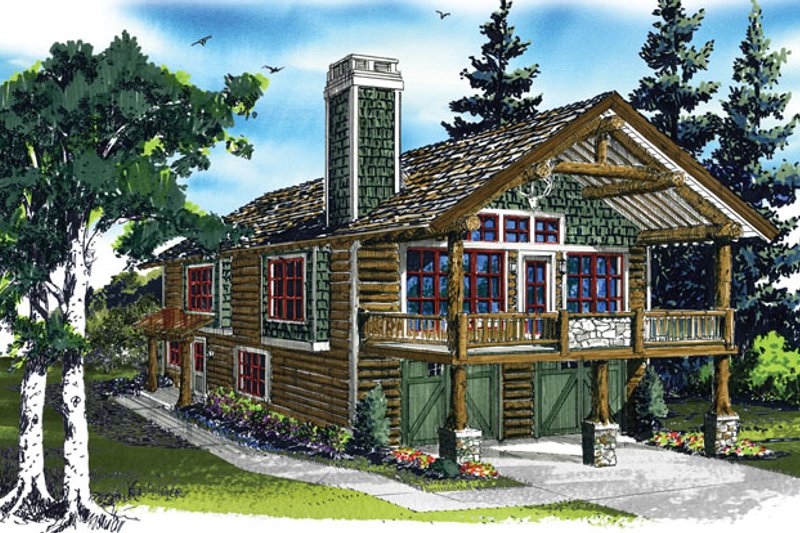

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
