PLAN 1066-86
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

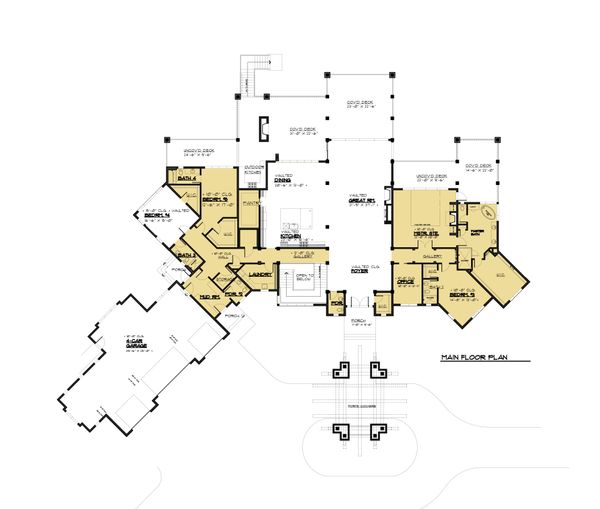

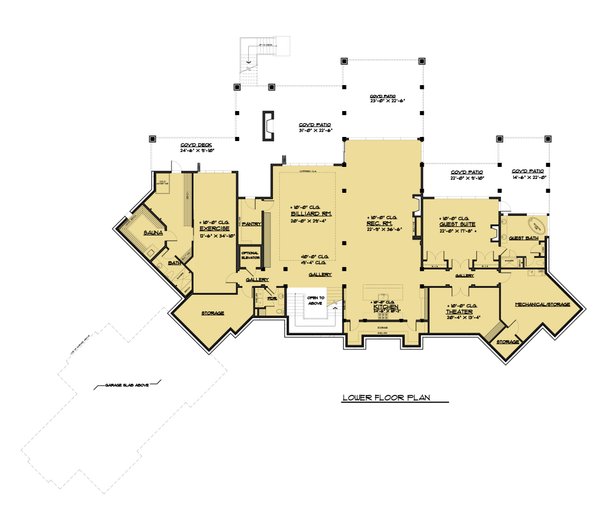

Floor Plans
Full Specs & Features
Dimension
Depth : 127'
Height : 33'
Width : 163' 8"
Area
Decks : 2069 sq/ft
Garage : 1493 sq/ft
Lower Floor : 5417 sq/ft
Main Floor : 5337 sq/ft
Patios : 2119 sq/ft
Porch : 101 sq/ft
Ceiling
Ceiling Details : Some parts of garage ceiling are 12'. Great room, main level kitchen, and master suite have vaulted ceilings.
Garage Ceiling : 10' 6"
Lower Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 10/12
Roof Framing : Trusses
Roof Load : 39 PSF
Roof Type : Composition Shingles and Metal
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone, and Some Timber
Framing : 2X6
Insulation : R21
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Wet Bar
Garage Features
Carport Porte Cochere
Front Entry Garage
Oversized Garage
Split Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Elevator
What's Included In This Plan Set
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
Plan Set
$5377.00
$5677.00
$5827.00
$10216.00
Foundation
$0.00
$300.00
$300.00
Framing
$0.00
Additional Options
$250.00
$165.00
$495.00
$39.00
$165.00
$350.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
