PLAN 47-711
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

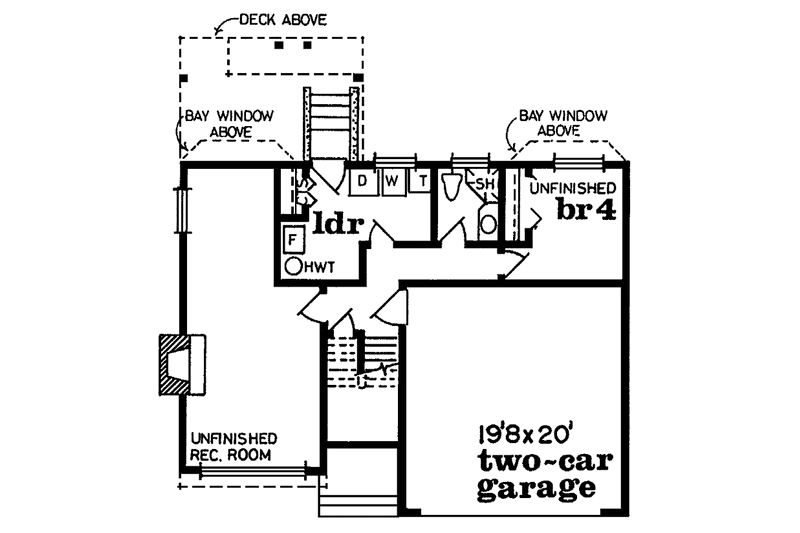

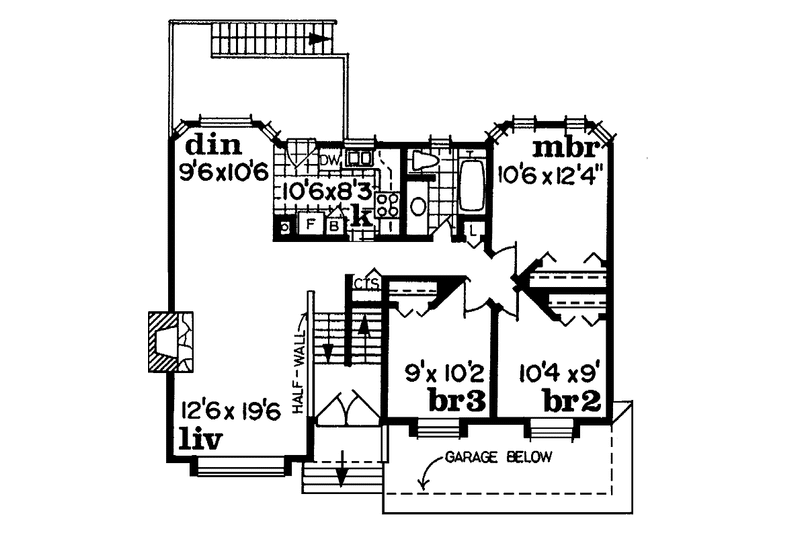

Floor Plans
Full Specs & Features
Dimension
Depth : 34'
Height : 25'
Width : 40'
Area
Basement Unfinished: 770 sq/ft
First Floor: 1100 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
10 sq/ft width 2' x depth 5'
Basement Foundation:
1133 sq/ft width 28' 4" x depth 40'
Bedroom 2:
92 sq/ft width 9' x depth 10' 4"
Bedroom 2 Closet:
12 sq/ft width 2' x depth 6'
Bedroom 3:
91 sq/ft width 10' 2" x depth 9'
Bedroom 3 Closet:
12 sq/ft width 2' x depth 6'
Deck:
160 sq/ft width 10' x depth 16'
Garage:
390 sq/ft width 20' x depth 19' 6"
Hall:
31 sq/ft width 5' x depth 6' 4"
Hall Bathroom:
60 sq/ft width 8' 1" x depth 7' 6"
Hall Closet:
6 sq/ft width 2' x depth 3'
Kitchen:
201 sq/ft width 10' x depth 20' 2"
Living Room:
243 sq/ft width 19' 6" x depth 12' 6"
Master Bedroom:
129 sq/ft width 12' 4" x depth 10' 6"
Master Closet:
14 sq/ft width 2' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$924.00
$1056.00
$1188.00
$1188.00
$1848.00
Foundation
$0.00
$275.00
$275.00
$275.00
Framing
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$295.00
$39.00
$150.00
$85.00
$0.00
$995.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
