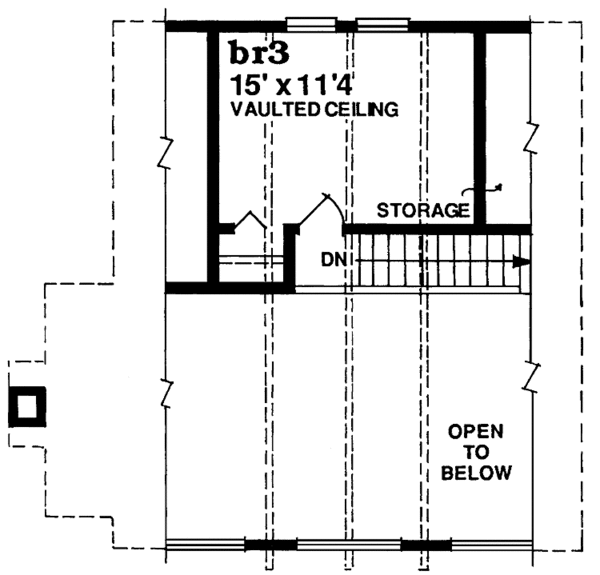

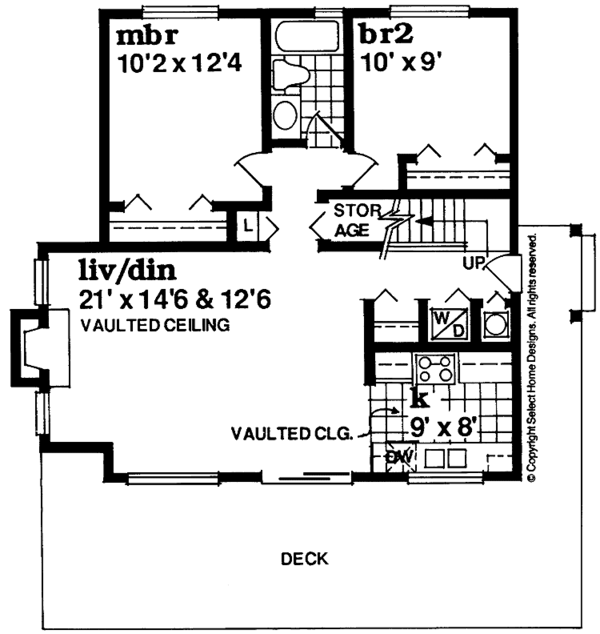

Abundant windows and sliding glass doors take advantage of views in this vacation home. A full deck wraps around to a covered side entry. Vaulted ceilings throughout the living and dining rooms and the large upstairs bedroom give a feeling of spaciousness to the plan and allow for tall, bright windows. The galley-style kitchen is open to the dining room. Two bedrooms line the rear of the plan an owners bedroom and a secondary bedroom. They share the full bath, as does Bedroom 3. Convenient storage is found under the stairs.
3rd BR Closet:
10 sq/ft width 2' 10" x depth 3' 8"
90 sq/ft width 9' x depth 10'
Bedroom 2 Closet:
12 sq/ft width 2' x depth 6' 2"
167 sq/ft width 11' 2" x depth 15'
Bedroom 3 Closet:
12 sq/ft width 2' x depth 6' 2"
945 sq/ft width 30' 6" x depth 31'
29 sq/ft width 3' 4" x depth 9'
38 sq/ft width 7' 8" x depth 5'
7 sq/ft width 2' 6" x depth 3' 1"
72 sq/ft width 8' x depth 9'
125 sq/ft width 12' 4" x depth 10' 2"
15 sq/ft width 2' x depth 7' 10"
Porch - Front:
350 sq/ft width 10' x depth 35'
Porch - Right:
65 sq/ft width 16' 4" x depth 4'
All plans are drawn at ¼” scale or larger and include :
