Plan Description
Site this home to take advantage of views at the front of the lot. A huge
window wall and sliding glass doors to the front deck off the living/dining
area make this possible. The entry--113 square feet--has a staircase leading up
to the main living level, but unfinished space on the lower level may be
developed for a future family room or extra bedroom. A central fireplace
spreads warmth throughout the home. Other special features of the plan include
a private balcony off the master bedroom and a convenient U-shaped kitchen with
a window sink.
Floor Plans

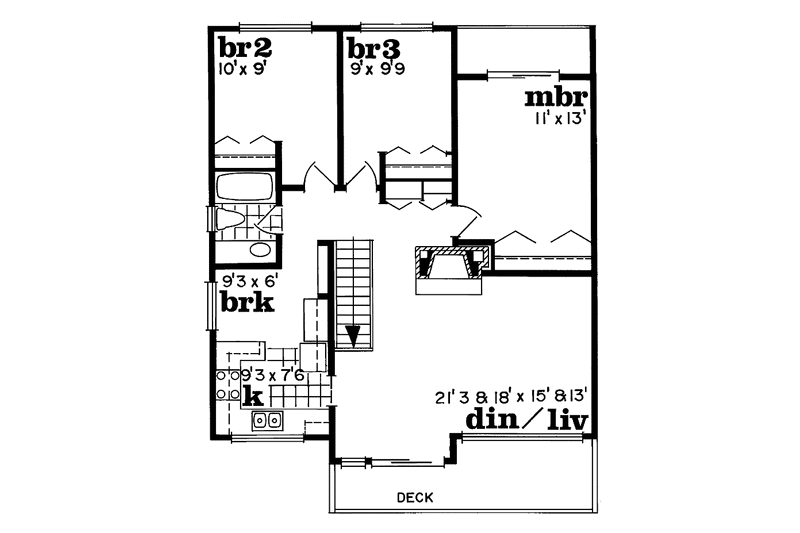

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 40'
Height : 25'
Width : 32'
Area
First Floor: 113 sq/ft height 8'
Second Floor: 1063 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
11 sq/ft width 2' x depth 5' 6"
Bedroom 2:
90 sq/ft width 9' x depth 10'
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 3:
87 sq/ft width 9' 9" x depth 9'
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5'
Dining Room:
85 sq/ft width 9' x depth 9' 6"
Foyer:
42 sq/ft width 6' x depth 7'
Hall Bathroom:
35 sq/ft width 7' 2" x depth 5'
Hall Closet:
12 sq/ft width 6' x depth 2'
Kitchen:
130 sq/ft width 14' x depth 9' 4"
Living Room:
234 sq/ft width 13' x depth 18'
Master Bedroom:
145 sq/ft width 13' x depth 11' 2"
Master Closet:
18 sq/ft width 2' 4" x depth 7' 11"
Porch - Front:
52 sq/ft width 5' x depth 10' 6"
Slab Foundation:
1040 sq/ft width 32' 6" x depth 32'
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

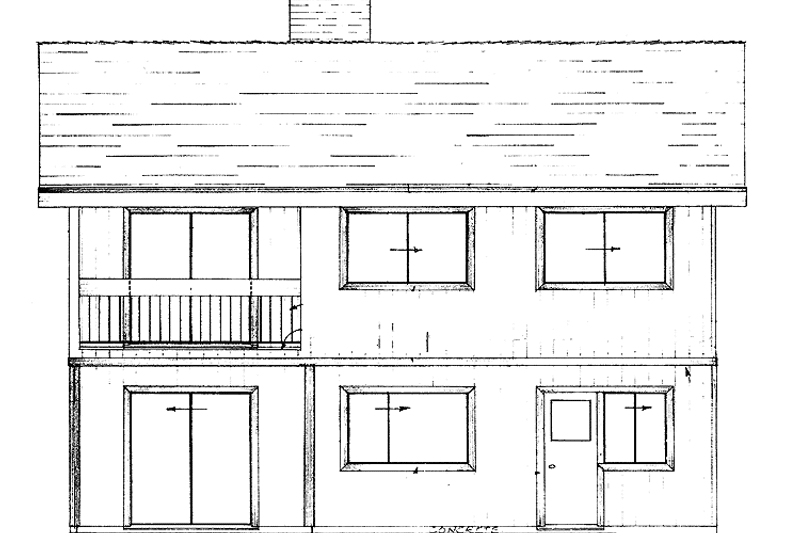

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
