PLAN 513-2058
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 38'
Height : 24'
Width : 51'
Area
First Floor: 806 sq/ft
Garage: 440 sq/ft
Porch: 48 sq/ft
Second Floor: 382 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Roof Trusses
Roof Load : 30/20
Roof Type : Roof Trusses
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features

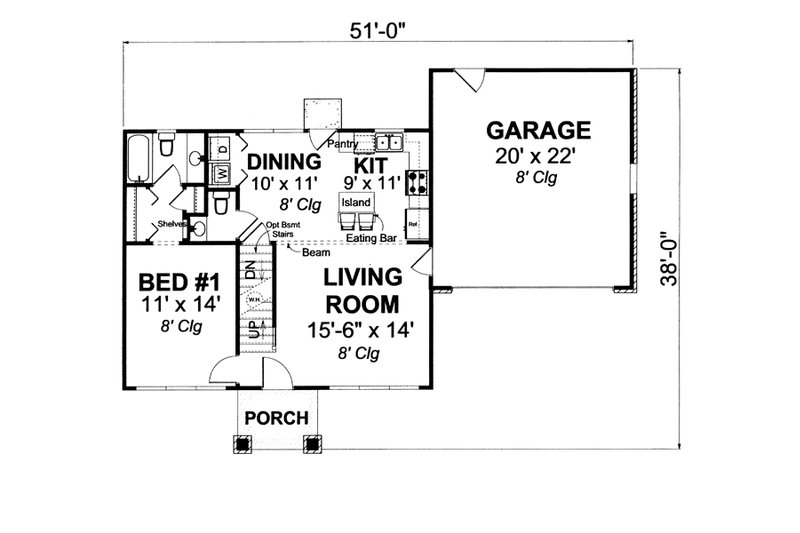

Main Floor Master Bedroom

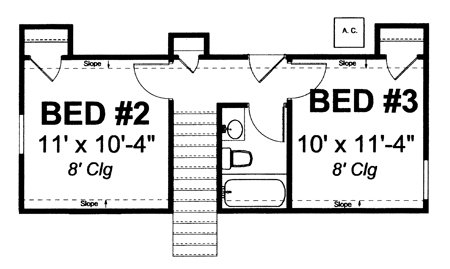

Upstairs Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bathroom 2:
38 sq/ft width 7' 8" x depth 5'
Bedroom 1:
154 sq/ft width 11' x depth 14'
Bedroom 2:
113 sq/ft width 11' x depth 10' 4"
Bedroom 3:
113 sq/ft width 10' x depth 11' 4"
Dining Room:
110 sq/ft width 10' x depth 11'
Foyer:
12 sq/ft width 3' 8" x depth 3' 6"
Garage:
440 sq/ft width 20' x depth 22'
Half Bathroom:
25 sq/ft width 5' x depth 5'
Kitchen:
99 sq/ft width 9' x depth 11'
Kitchen Island:
7 sq/ft width 3' 6" x depth 2'
Living Room:
217 sq/ft width 15' 6" x depth 14'
Master Closet:
11 sq/ft width 2' x depth 5' 6"
Master Closet Two:
5 sq/ft width 2' x depth 2' 8"
Utility Room:
16 sq/ft width 3' x depth 5' 6"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

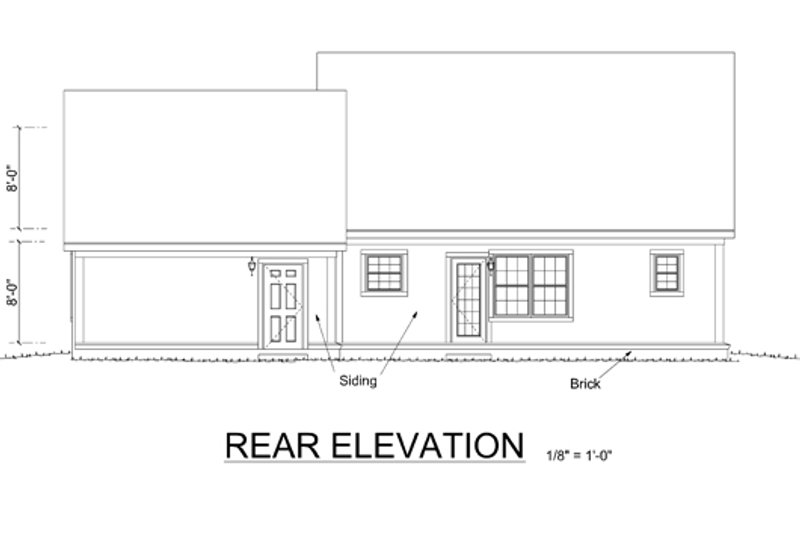

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$925.00
$1220.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
$0.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
