PLAN 100-450
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This ranch design floor plan is 1193 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

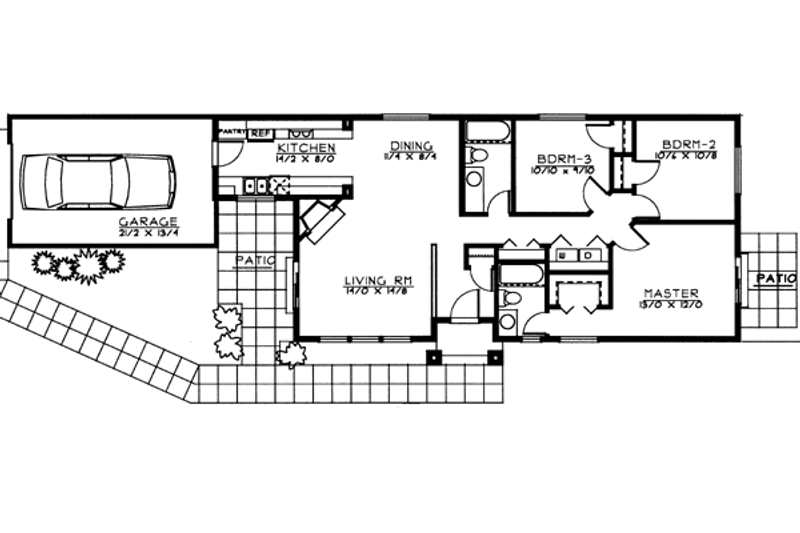

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 24'
Height : 15'
Width : 77'
Area
First Floor: 1193 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Kitchen Features
Walk In Pantry Cabinet Pantry
More
Economical To Build
What's Included In This Plan Set
-

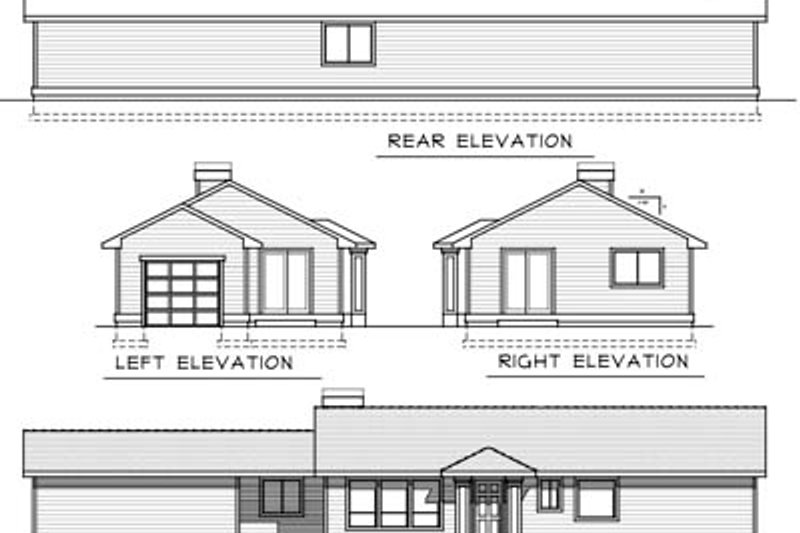

Elevations drawn at 1/4" = 1'-0" scale, and includes:
- Material labels
- Floor-to-floor heights
- Roof slope indicators
- Attic ventilation notes
- Material labels
-
Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- Room labels and interior room sizes
- Electrical layouts
- Code-related notes
- Building section markers
- Floor joist type, spacing and direction
- All post and beam locations
-
Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- All foundation wall and footing sizes
- Code-related notes
- Building section markers
- Floor and deck joist type, spacing and direction
- Mechanical equipment location
- Electrical layouts
- All post and beam locations
-
Roof Plan drawn at 1/4" = 1'-0", and includes:
- All beam and header locations
- Building section markers
- Code-related notes
- All necessary notes pertaining to the structural system
- All beam and header locations
-
Building Sections drawn at 1/4" = 1'-0" scale, and includes:
- Beam connections and locations
- Floor joist type and spacing
- Floor-to-floor heights
- Non-typical plate heights indicated
- Beam connections and locations
-
Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
- All labels indicating wall construction
- Foundation wall thickness and minimum reinforcing
- Insulation type and rating
- All labels indicating wall construction
- Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
