Full Specs & Features
Depth : 58' 6"
Height : 18' 6"
Width : 39' 4"

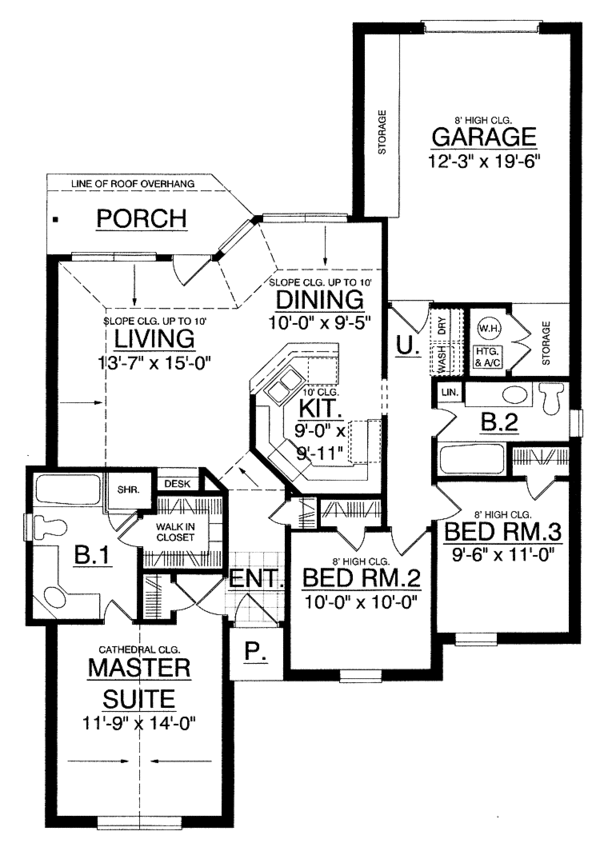

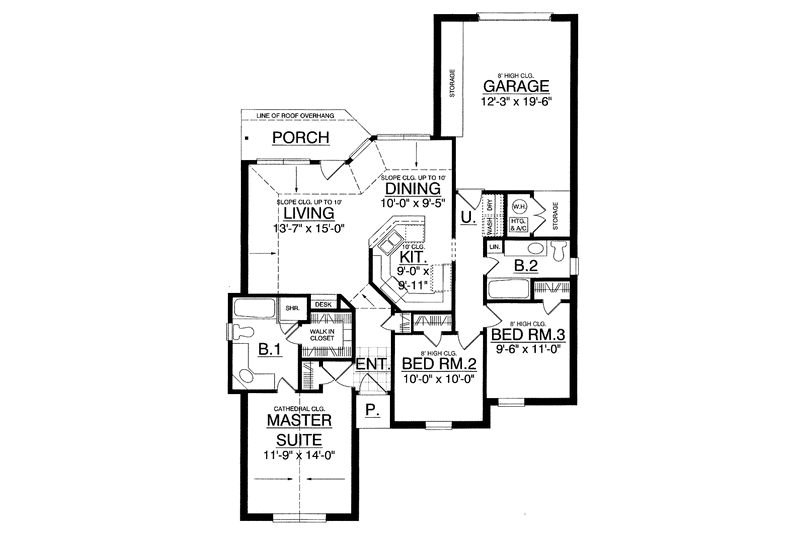

First Floor: 1205 sq/ft
Garage: 355 sq/ft
Porch: 110 sq/ft
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
100 sq/ft width 10' x depth 10'
104 sq/ft width 9' 6" x depth 11'
94 sq/ft width 10' x depth 9' 5"
238 sq/ft width 12' 3" x depth 19' 6"
89 sq/ft width 9' x depth 9' 11"
203 sq/ft width 13' 7" x depth 15'
164 sq/ft width 11' 9" x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

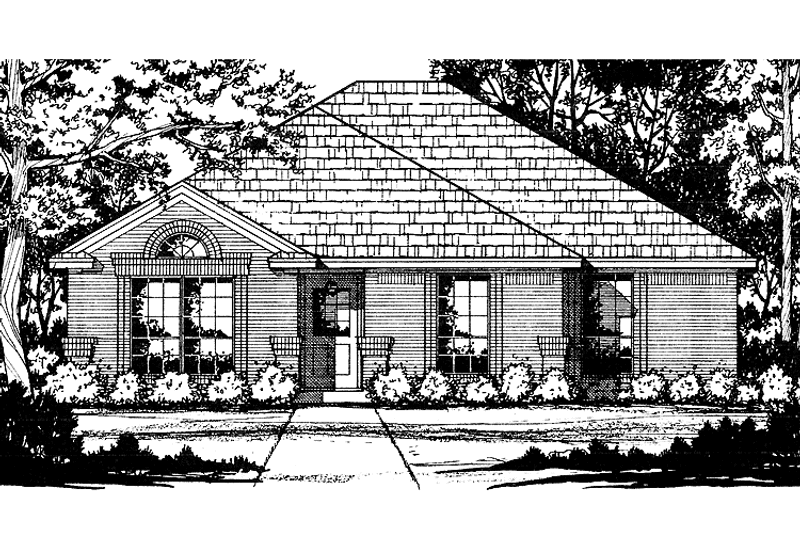

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
