Full Specs & Features
Depth : 38'
Height : 24' 8"
Width : 42'
Main Floor : 1223 sq/ft
Ceiling Details : Main floor ceilings: 9 ft & 10 ft
Lower Ceiling : 7' 8"
Main Ceiling : 9' 2"
Primary Pitch : 4/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Stucco, Wood
Framing : Wood - 2 x 6
Insulation : R20
Additional Room Features
Great Room Living Room
Main Floor Laundry
Economical To Build
What's Included In This Plan Set
Please note that this plan is not available in PDF or CAD format for building in Quebec or Ontario.
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.

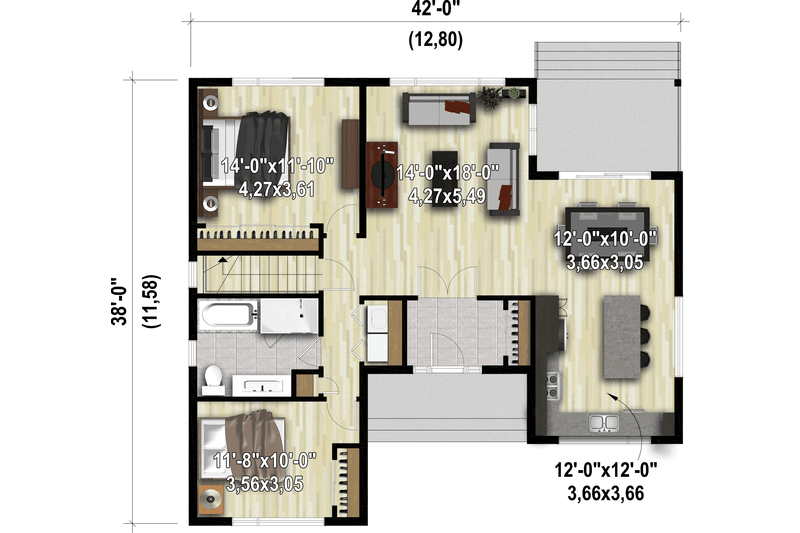

- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
Four detailed exterior elevations showing the final appearance of each side of the house.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
