Full Specs & Features
Depth : 59' 10"
Width : 29' 6"
First Floor: 1250 sq/ft height 8'
Garage: 315 sq/ft
Garage Ceiling : 8'
Main Ceiling : 8'
Primary Pitch : 7:12
Roof Framing : stick
Roof Type : hip
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Insulation : 13
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Zero Lot Lines
Covered Front Porch
Covered Rear Porch
Suited For Vacation Home
Structural Information Provided

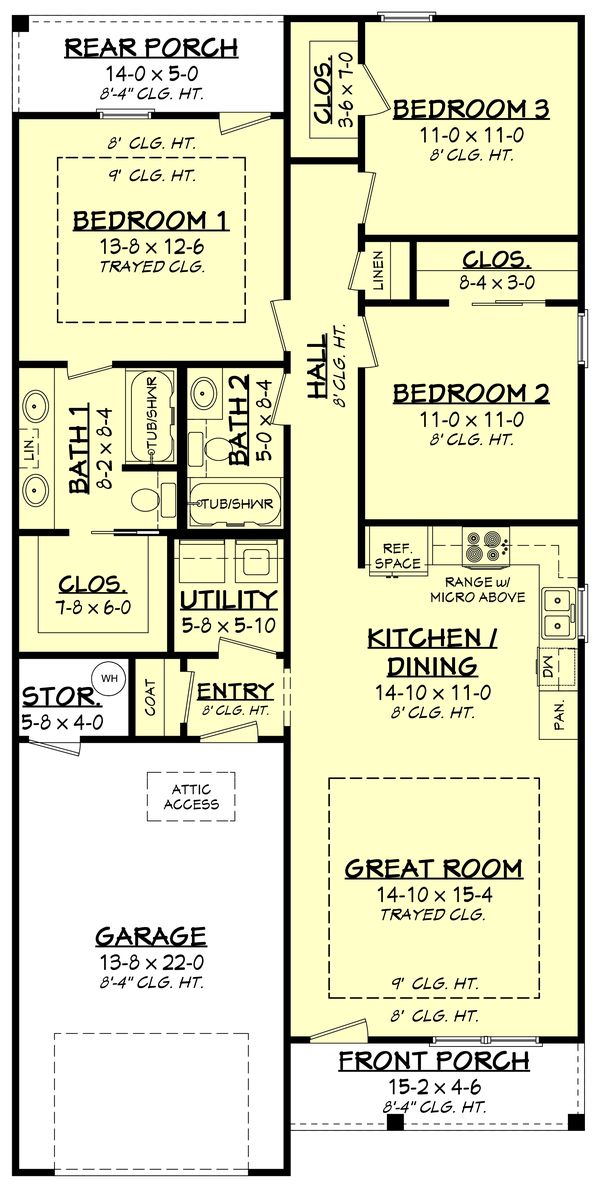

Structural 1st Floor Framing
width 11' x depth 11'
width 11' x depth 11'
Covered Front Porch:
68 sq/ft width 15' 2" x depth 4' 6"
Covered Rear Porch:
70 sq/ft width 14' x depth 5'
315 sq/ft width 13' 8" x depth 22'
Kitchen/ Dining Area:
width 14' 10" x depth 11'
width 14' 10" x depth 15' 4"
width 7' 6" x depth 6'
width 8' 2" x depth 8' 4"
width 13' 8" x depth 12' 6"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license.
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.

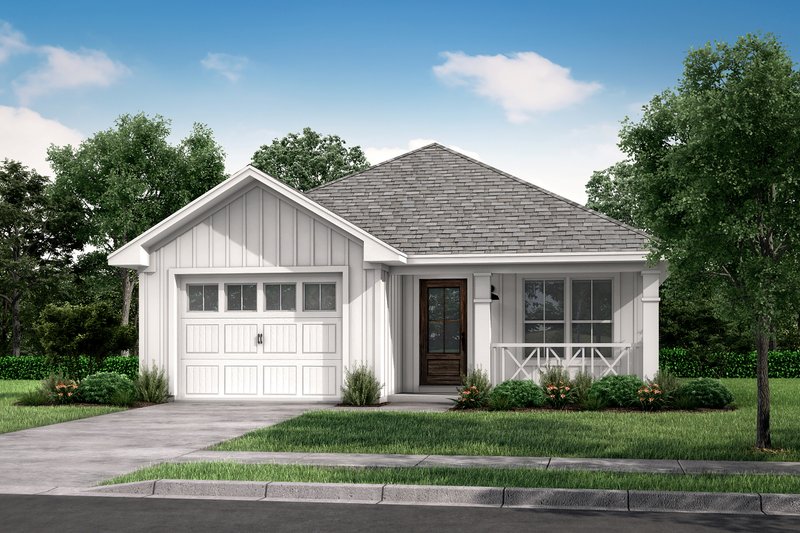

- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
- Wall Section(s) – Detail of wall materials and assembly.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
- Cabinet Elevations – Displays interior kitchen cabinet views.
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.
Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
