Home Plan - Craftsman Exterior - Front Elevation Plan #513-2106

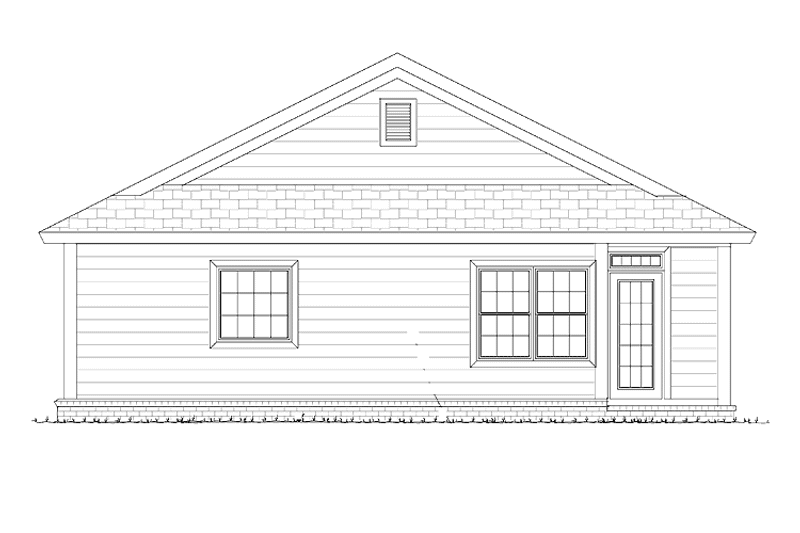

Home Plan - Craftsman Exterior - Rear Elevation Plan #513-2106

Home Plan - Craftsman Floor Plan - Main Floor Plan #513-2106

Jump to:
All (5)
Exterior (4)
Floor plans (1)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1253
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$945.00 NOW $803.25

You save $141.75 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 513-2106

Home > Style > Craftsman

Key Specs

1253
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 1253 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 59'

Height : 20'

Width : 35'

Area

First Floor: 1253 sq/ft

Garage: 472 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Formal Living Room / Parlor

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

37 sq/ft width 7' 6" x depth 5'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Dining Room:

110 sq/ft width 11' x depth 10'

Front Porch:

134 sq/ft width 15' 4" x depth 8' 9"

Garage:

380 sq/ft width 20' x depth 19'

Kitchen:

99 sq/ft width 11' x depth 9'

Kitchen Island:

16 sq/ft width 5' 6" x depth 3'

Living Room:

283 sq/ft width 18' x depth 15' 9"

Master Bathroom:

112 sq/ft width 9' x depth 12' 6"

Master Bedroom:

180 sq/ft width 12' x depth 15'

Master Closet:

32 sq/ft width 5' x depth 6' 6"

Pantry:

4 sq/ft width 2' x depth 2'

Rear porch:

79 sq/ft width 6' 6" x depth 12' 2"

Utility Room:

32 sq/ft width 5' 2" x depth 6' 4"

What's Included In This Plan Set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

Questions? Call 1-888-447-1946

Plan Set

PDF Unlimited Build:
$803.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1054.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$165.75

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$165.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$165.75

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.
