PLAN 47-866
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
1256
sq ft
3
Beds
1.5
Baths
2
Floors
0
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBFALL
Use Code CTBFALL
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 47-866
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
A surrounding sundeck and expansive window wall capitalize on vacation-home views in this design. The full-height windows flood the large living/dining room with abundant natural light and bring attention to the high vaulted ceilings. A wood stove in the living area warms cold winter nights. The efficient U-shaped kitchen also offers a view from the window above the sink. Coming in with sandy shoes? Leave them in the laundry room by the front entrance. The master bedroom sits on this floor and has a large wall closet and windows on two sides. Two family bedrooms offer more sleeping space on the second floor and have use of a half-bath.
Floor Plans

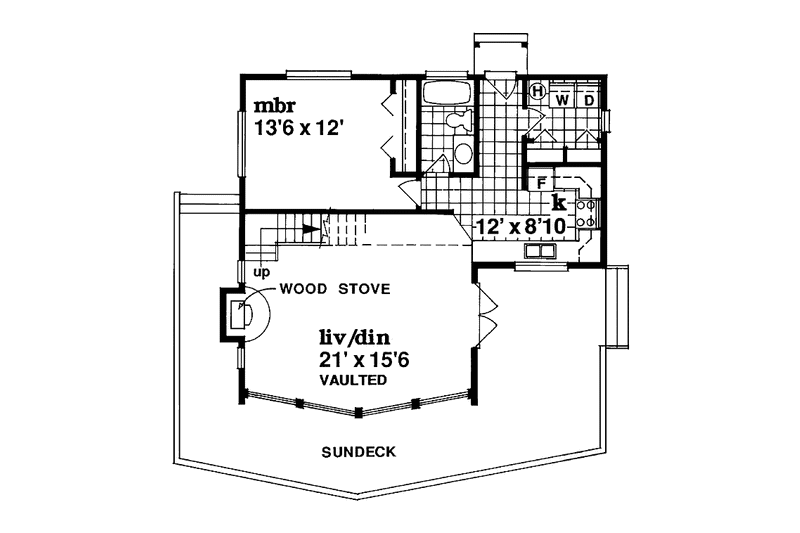

Floor Plan - Main Floor

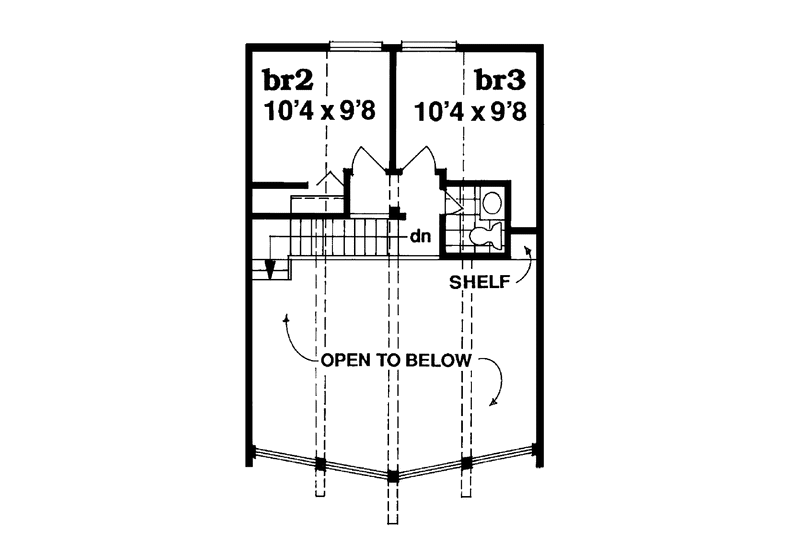

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 26'
Width : 34'
Area
First Floor: 898 sq/ft height 8'
Second Floor: 358 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Deck
Wrap Around Porch
Rooms
Bedroom 2:
99 sq/ft width 9' 8" x depth 10' 4"
Bedroom 3:
99 sq/ft width 9' 8" x depth 10' 4"
Crawlspace Foundation:
1088 sq/ft width 32' x depth 34'
Foyer:
36 sq/ft width 8' 10" x depth 4' 2"
Hall Bathroom:
42 sq/ft width 8' 6" x depth 5'
Kitchen:
105 sq/ft width 8' 10" x depth 12'
Master Bathroom:
41 sq/ft width 5' x depth 8' 4"
Master Bedroom:
162 sq/ft width 12' x depth 13' 6"
Porch - Front:
320 sq/ft width 8' x depth 40'
Porch - Left:
102 sq/ft width 17' x depth 6'
Porch - Rear:
15 sq/ft width 3' x depth 5'
Porch - Right:
144 sq/ft width 12' x depth 12'
Powder Room:
24 sq/ft width 5' 2" x depth 4' 8"
Utility Room:
38 sq/ft width 5' 6" x depth 7'
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$785.40
$785.40
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$897.60
$897.60
5 printed plan sets mailed to you.
8 Copy Set:
$1009.80
$1009.80
8 printed plan sets mailed to you.
Reproducible Set:
$1009.80
$1009.80
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1570.80
$1570.80
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$233.75
$233.75
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$233.75
$233.75
Ideal for sloping lot, lower level of home partially underground.
Slab:
$233.75
$233.75
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$165.75
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$420.75
$420.75
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$72.25
$72.25
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$0.00
$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License:
$845.75
$845.75
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
