PLAN 70-1018

Key Specs


1264
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Stone walls and vertical siding give this home an extra boost in curb appeal, making it suitable for just about any neighborhood. A spacious great room with nine-foot ceilings greets you upon entering and beckons you to check out the rest of the home. The kitchen includes a breakfast bar large enough to seat four, and direct access to the dining area where a patio door leads you outside to the back yard deck. The master bedroom lies directly to the left of the entry and includes a private bathroom and plenty of closet space. The second bedroom, at the back of the home, ensures maximum privacy for mom and dad. Finally, a main floor laundry room leads you to the two-stall garage.

Floor Plans

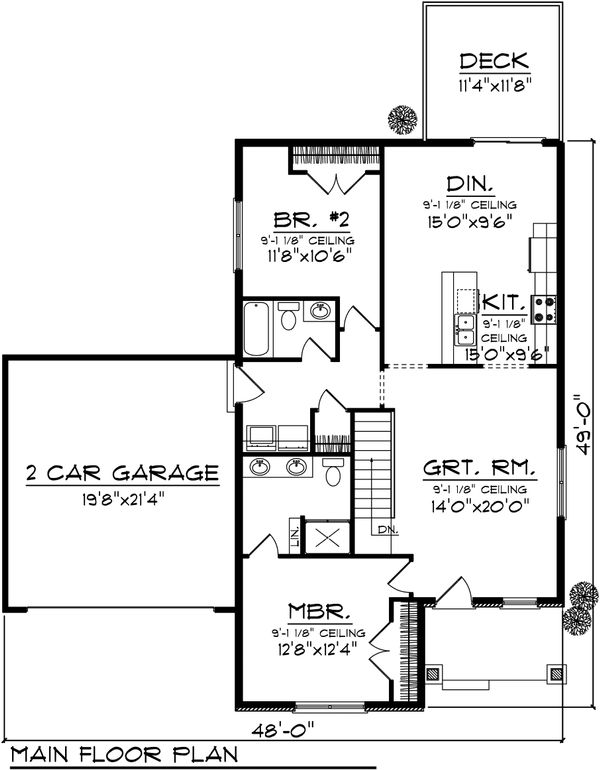

Floor Plan - Main Floor Plan
Reverse
Save Ranch Floor Plan - Main Floor Plan Plan #70-1018

Full Specs & Features


Dimension
Depth : 49'
Height : 22' 1"
Width : 48'
Area
First Floor: 1264 sq/ft height 9'
Garage: 440 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Stone / Siding
Framing : 2 x 6
Insulation : R-19
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Economical To Build
Rooms

Basement Foundation:

2352 sq/ft width 48' x depth 49'

Bedroom 2:

122 sq/ft width 11' 8" x depth 10' 6"

Bedroom 2 Closet:

15 sq/ft width 7' 7" x depth 2' 1"

Deck:

132 sq/ft width 11' 4" x depth 11' 8"

Dining Room:

142 sq/ft width 15' x depth 9' 6"

Garage:

419 sq/ft width 19' 8" x depth 21' 4"

Great Room:

280 sq/ft width 14' x depth 20'

Half Bathroom:

40 sq/ft width 8' x depth 5'

Hall:

47 sq/ft width 11' 9" x depth 4'

Hall Closet:

10 sq/ft width 3' 1" x depth 3' 6"

Laundry Room:

21 sq/ft width 5' 10" x depth 3' 9"

Master Bathroom:

79 sq/ft width 9' 4" x depth 8' 6"

Master Bedroom:

156 sq/ft width 12' 8" x depth 12' 4"

Master Closet:

18 sq/ft width 2' 1" x depth 8' 8"

Porch - Front:

84 sq/ft width 12' x depth 7'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
$865.00
5 printed plan sets mailed to you.
8 Copy Set :
$910.00
8 printed plan sets mailed to you.
PDF Set :
$1085.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1085.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1710.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$295.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
