This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Depth : 49'
Height : 17'
Width : 53'
First Floor: 1264 sq/ft
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Walk In Closet
Additional Room Features
Covered Front Porch
What's Included In This Plan Set

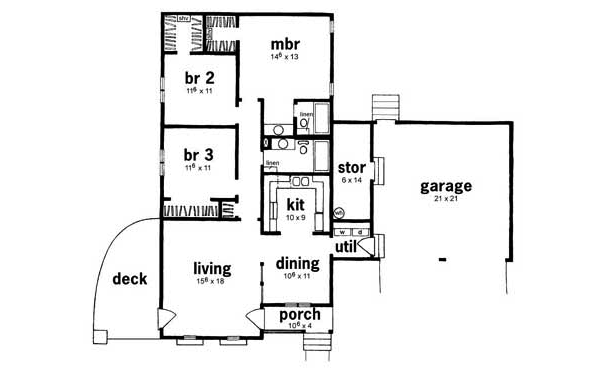

- Floor plan with dimensions.
- Electrical layout showing fixtures and switches, but not circuits.

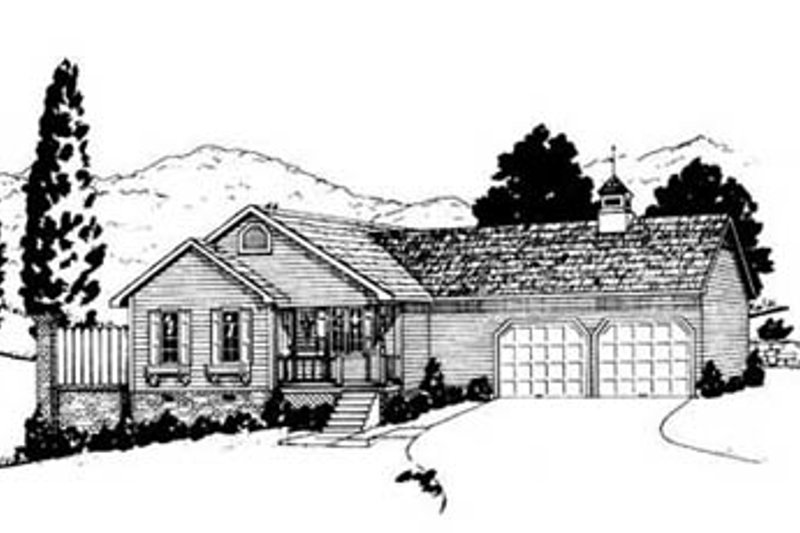

- Elevations from all 4 sides and top.
- Framing details including cornices and at least one section.
- Foundation with footing details. Plumbing is repeated on slab foundation.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
