Home Plan - Ranch Exterior - Front Elevation Plan #17-2719

Home / Style / Ranch

Key Specs

1265
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Roof Framing Detail

$149.00

Get a detailed plan for your roof framing.

Subtotal

$700.00

Also order by phone: 1-888-447-1946

Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 17-2719

Home / Style / Ranch

Key Specs

1265
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Perfect for narrow lot lines, this home is the ideal niche for new families. A quaint, columned porch accents the facade. Inside, the great room offers spacious living. Master bedroom plus two additional rooms are located on the other side of the home for separate, peaceful, sleeping space.

Floor Plans

Floor Plan - Main Floor

Reverse

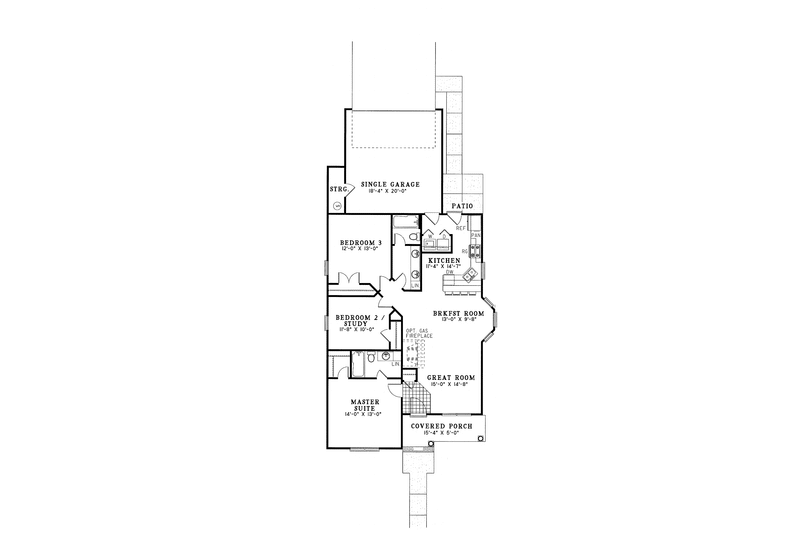

Home Plan - Ranch Floor Plan - Main Floor Plan #17-2719

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 65'

Width : 32' 4"

Area

First Floor: 1265 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Garage Features

Rear Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

116 sq/ft width 10' x depth 11' 8"

Bedroom 3:

156 sq/ft width 13' x depth 12'

Breakfast Room:

125 sq/ft width 9' 8" x depth 13'

Gathering Room:

220 sq/ft width 14' 8" x depth 15'

Kitchen:

165 sq/ft width 14' 7" x depth 11' 4"

Master Bedroom:

182 sq/ft width 13' x depth 14'

Porch - Front:

76 sq/ft width 5' x depth 15' 4"

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
CAD Unlimited Build comes with a free PDF.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$800.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1050.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1400.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Unlimited Build:
$1400.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Unlimited Build:
$1400.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$299.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Roof Framing Detail:
$149.00

Get a detailed plan for your roof framing.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
