Full Specs & Features
Depth : 30'
Height : 20' 11"
Width : 42'
Garage : 1278 sq/ft
Ceiling Details : Vaulted Scissor Truss
Garage Ceiling : 10'
Main Ceiling : 10'
Primary Pitch : 6/12
Roof Framing : Scissor Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 4
Additional Room Features
Front Entry Garage
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

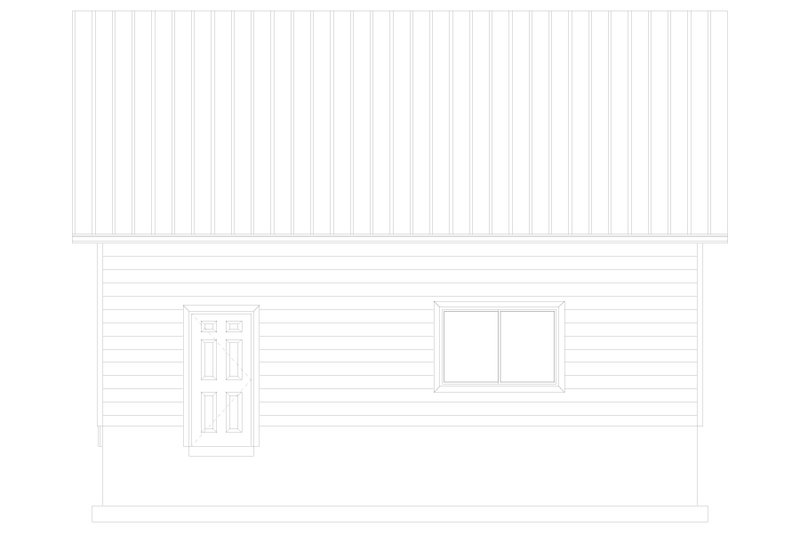

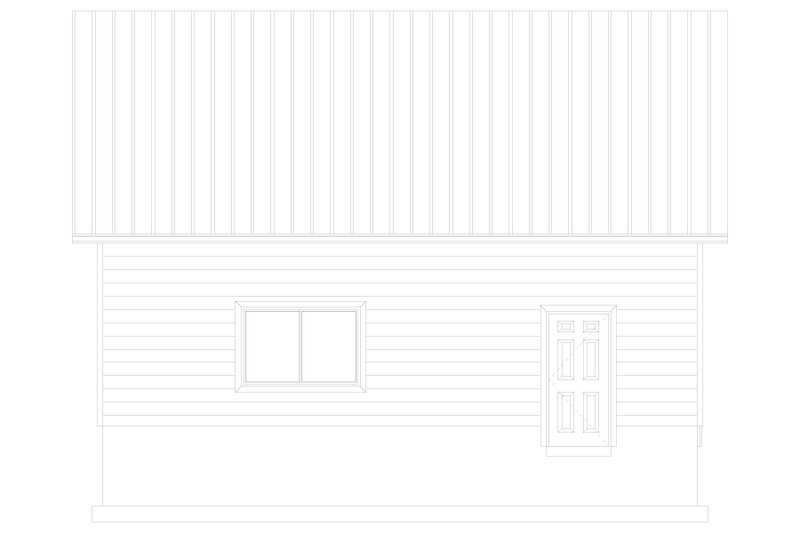

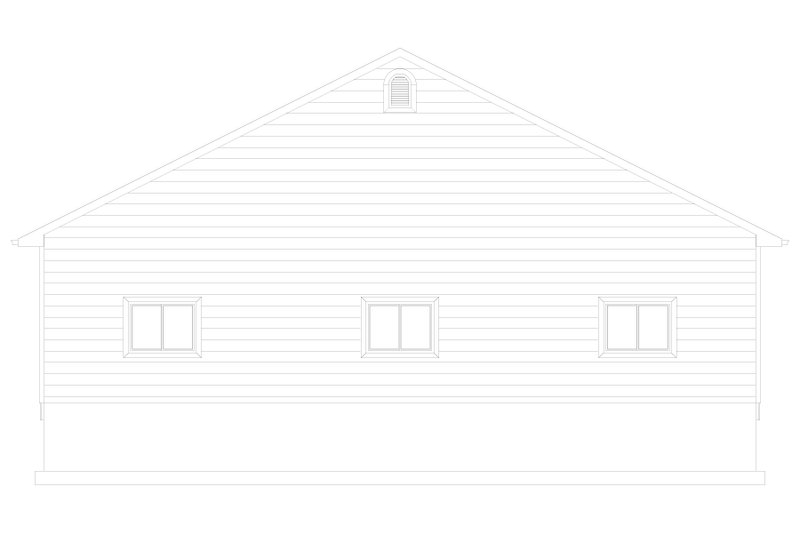

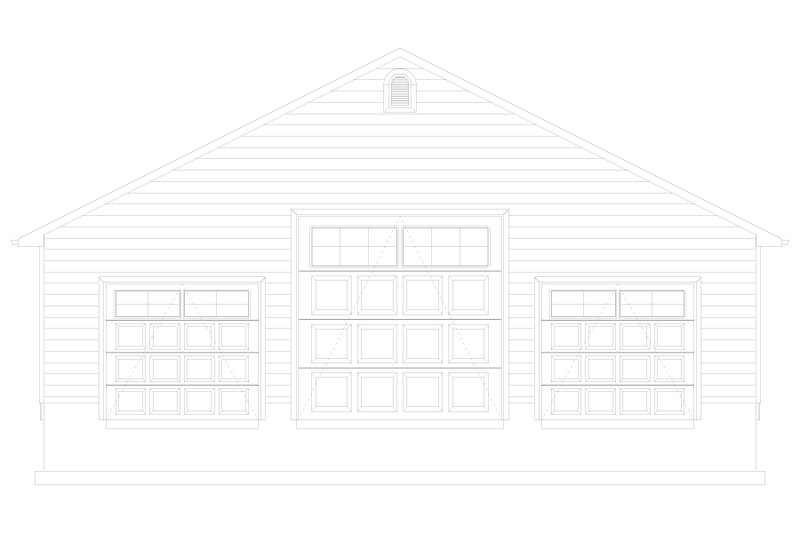

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

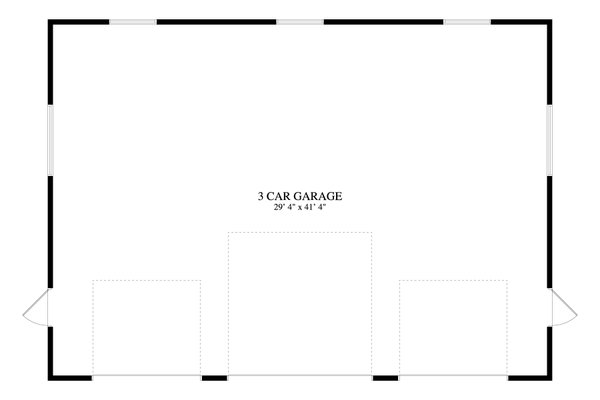

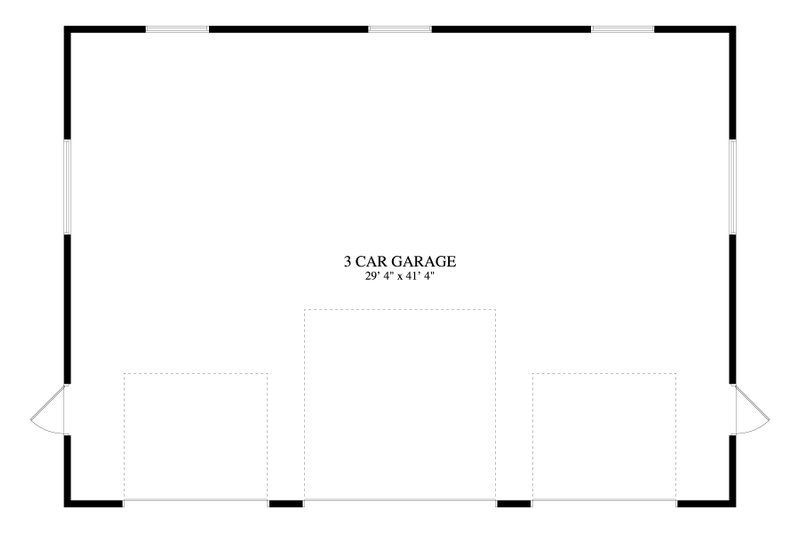

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
