Key Specs
1299
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 47-736
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

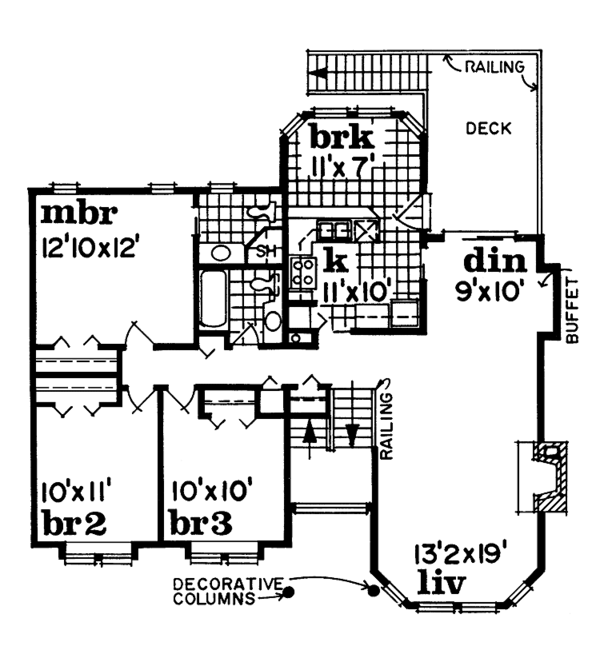

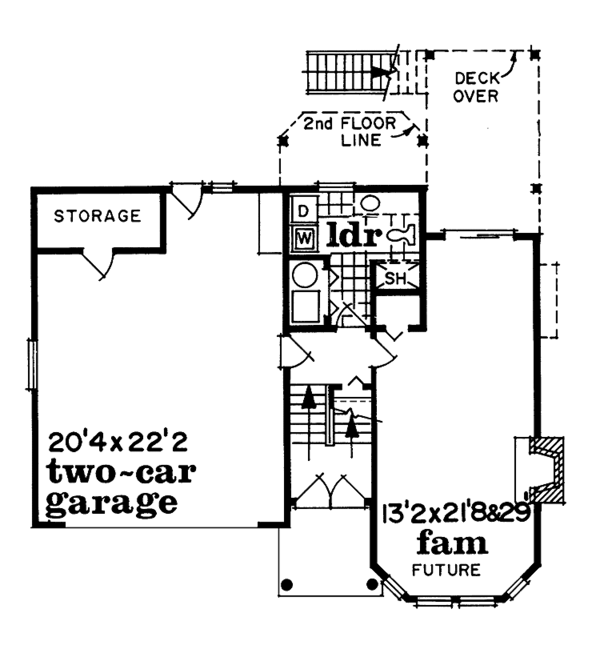

Floor Plans
Full Specs & Features
Dimension
Depth : 40'
Height : 26'
Width : 42'
Area
Basement Unfinished: 617 sq/ft
First Floor: 1299 sq/ft height 8'
Roof
Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Deck
Rooms
3rd BR Closet:
8 sq/ft width 4' 3" x depth 2'
Basement Foundation:
725 sq/ft width 21' 4" x depth 34'
Bedroom 2:
110 sq/ft width 10' x depth 11'
Bedroom 2 Closet:
13 sq/ft width 6' 10" x depth 2'
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 3 Closet:
13 sq/ft width 6' 10" x depth 2'
Breakfast Room:
77 sq/ft width 11' x depth 7'
Deck:
139 sq/ft width 9' 4" x depth 15'
Dining Room:
90 sq/ft width 9' x depth 10'
Foyer:
29 sq/ft width 6' 6" x depth 4' 7"
Garage:
450 sq/ft width 20' 4" x depth 22' 2"
Hall Bathroom:
42 sq/ft width 7' x depth 6'
Kitchen:
110 sq/ft width 11' x depth 10'
Living Room:
250 sq/ft width 13' 2" x depth 19'
Master Bathroom:
38 sq/ft width 7' x depth 5' 6"
Master Bedroom:
153 sq/ft width 12' 10" x depth 12'
Master Closet:
13 sq/ft width 6' 10" x depth 2'
Porch - Front:
45 sq/ft width 6' 6" x depth 7'
Storage:
45 sq/ft width 10' 2" x depth 4' 6"
