PLAN 44-160
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

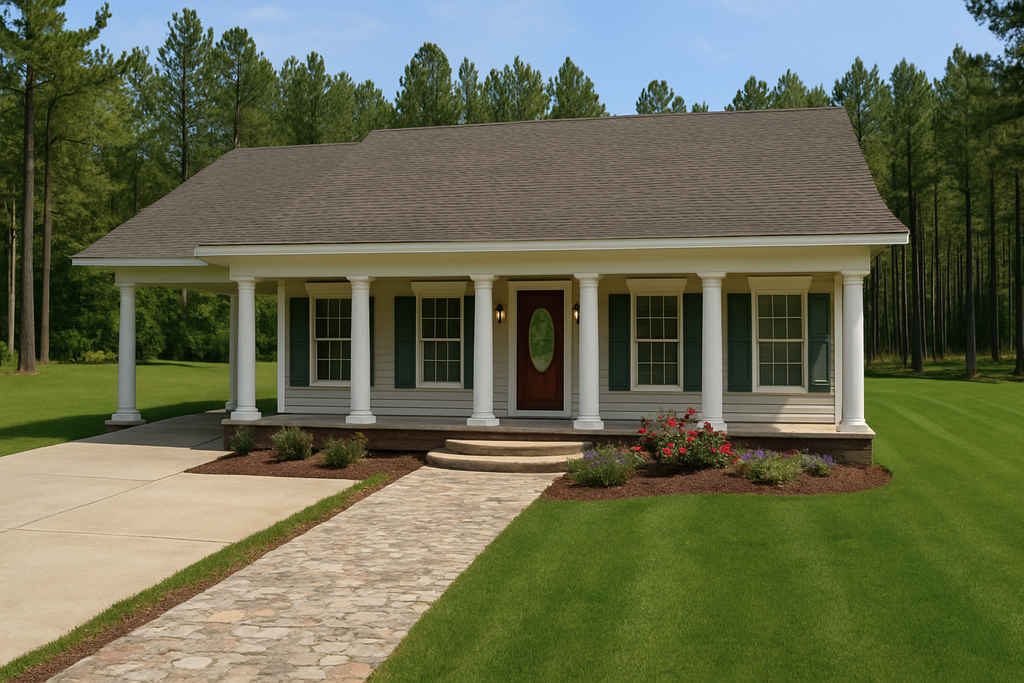

One story cottage retreat home with two large bedrooms and two full
bathrooms. This quaint home can easily be used for a vacation hide-away.
The covered front porch welcomes you into the great room of this comfy
cottage. The great room features a wall of built-in storage with upper
and lower cabinets and a vent-less gas fireplace.
The kitchen/dining area is open and airy, just perfect for entertaining
friends and family. A walk-in pantry can be found close to the kitchen.
The laundry area is tucked behind the kitchen, has plenty of cabinets
for storage, a laundry sink and easy access from the carport.
The home office is located at the rear of the home with cabinets for
storage.
The master suite has a walk-in closet, full bath, and exit to the
covered back porch.
See Houseplan #44-159 for a modified version of this plan.
Full Specs & Features
Dimension
Depth : 42'
Height : 22'
Width : 48'
Height : 22'
Width : 48'
Area
First Floor: 1301 sq/ft height 9'
Garage: 355 sq/ft
Porch: 204 sq/ft
Garage: 355 sq/ft
Porch: 204 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Great Room Living Room
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Empty Nester
Suited For Vacation Home
Rooms
Bedroom 2:
157 sq/ft width 13' 8" x depth 11' 6"
Bedroom 2 Closet:
35 sq/ft width 7' x depth 5'
Carport:
354 sq/ft width 14' x depth 25' 4"
Home Office:
58 sq/ft width 7' 2" x depth 8' 2"
Kitchen:
184 sq/ft width 13' 10" x depth 13' 4"
Laundry Room:
104 sq/ft width 9' 10" x depth 10' 8"
Living Room:
294 sq/ft width 20' 4" x depth 14' 6"
Master Bathroom:
61 sq/ft width 9' 6" x depth 6' 6"
Master Bedroom:
177 sq/ft width 13' 8" x depth 13'
Pantry:
11 sq/ft width 2' 2" x depth 5' 4"
Porch - Front:
204 sq/ft width 34' x depth 6'
Porch - Rear:
66 sq/ft width 10' 6" x depth 6' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $715.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $819.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $895.50 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse : $135.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $40.50 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $63.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
