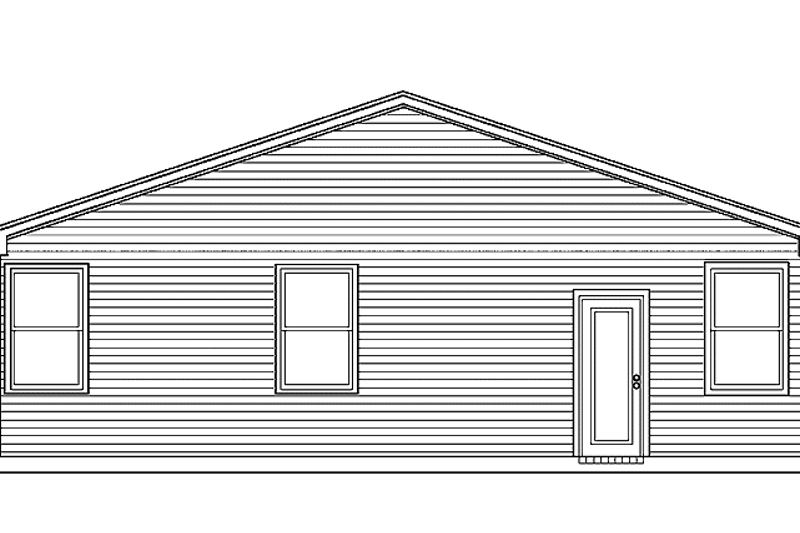

Home Plan - Ranch Exterior - Rear Elevation Plan #84-662

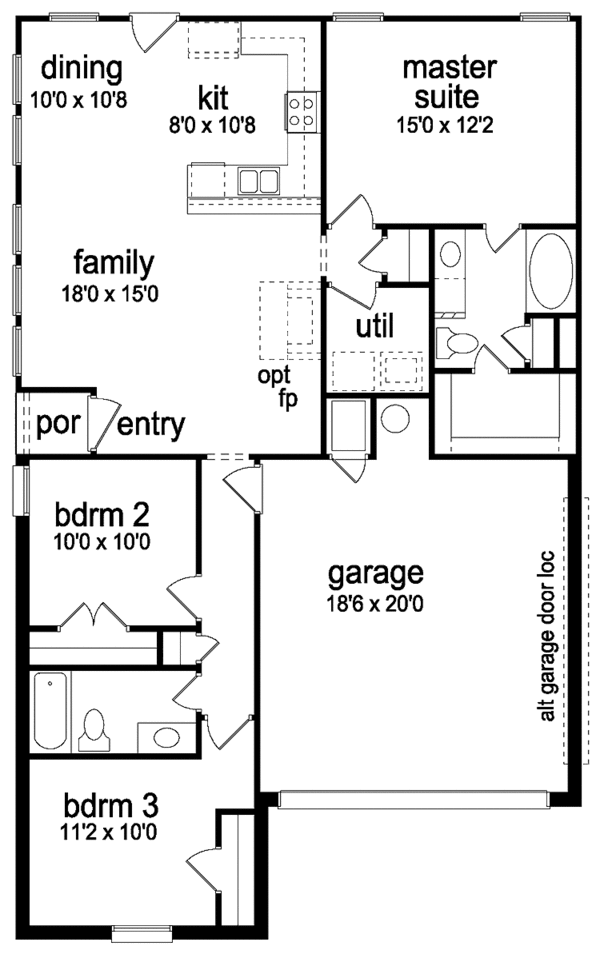

Home Plan - Ranch Floor Plan - Main Floor Plan #84-662

Jump to:
All (4)
Exterior (3)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch

Key Specs

1305
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$750.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 84-662

Home > Style > Ranch

Key Specs

1305
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Plan is a great little starter home or weekend getaway. Large family room is open to the kitchen and dining: great for entertaining, with view to the side and back. Private master suite has a garden tub and option for separate shower. Garage can be lengthened for a boat. Brick front elevation has country charm with siding details.

Floor Plans

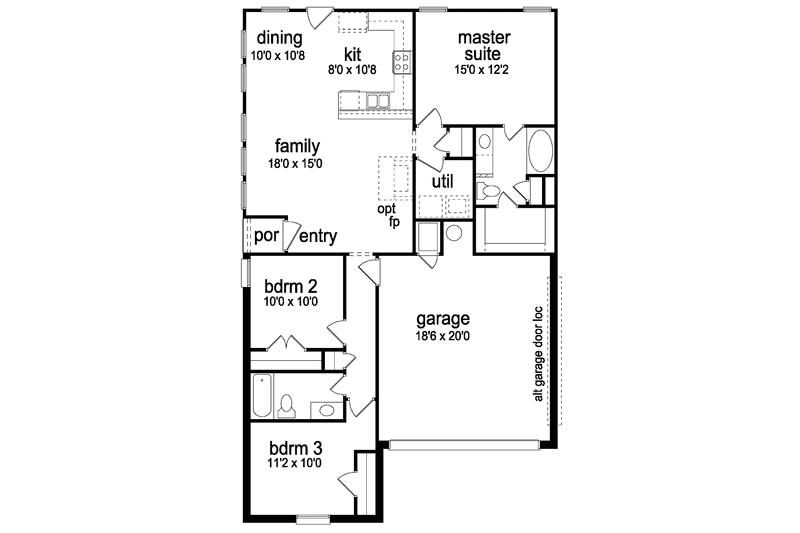

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 55' 6"

Height : 15' 6"

Width : 34'

Area

First Floor: 1305 sq/ft height 9'

Garage: 414 sq/ft height 9'

Porch: 17 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Garage Features

Side Entry Garage

Rooms

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

111 sq/ft width 11' 2" x depth 10'

Dining Room:

106 sq/ft width 10' x depth 10' 8"

Family Room:

270 sq/ft width 18' x depth 15'

Garage:

370 sq/ft width 18' 6" x depth 20'

Kitchen:

85 sq/ft width 8' x depth 10' 8"

Master Bedroom:

182 sq/ft width 15' x depth 12' 2"
