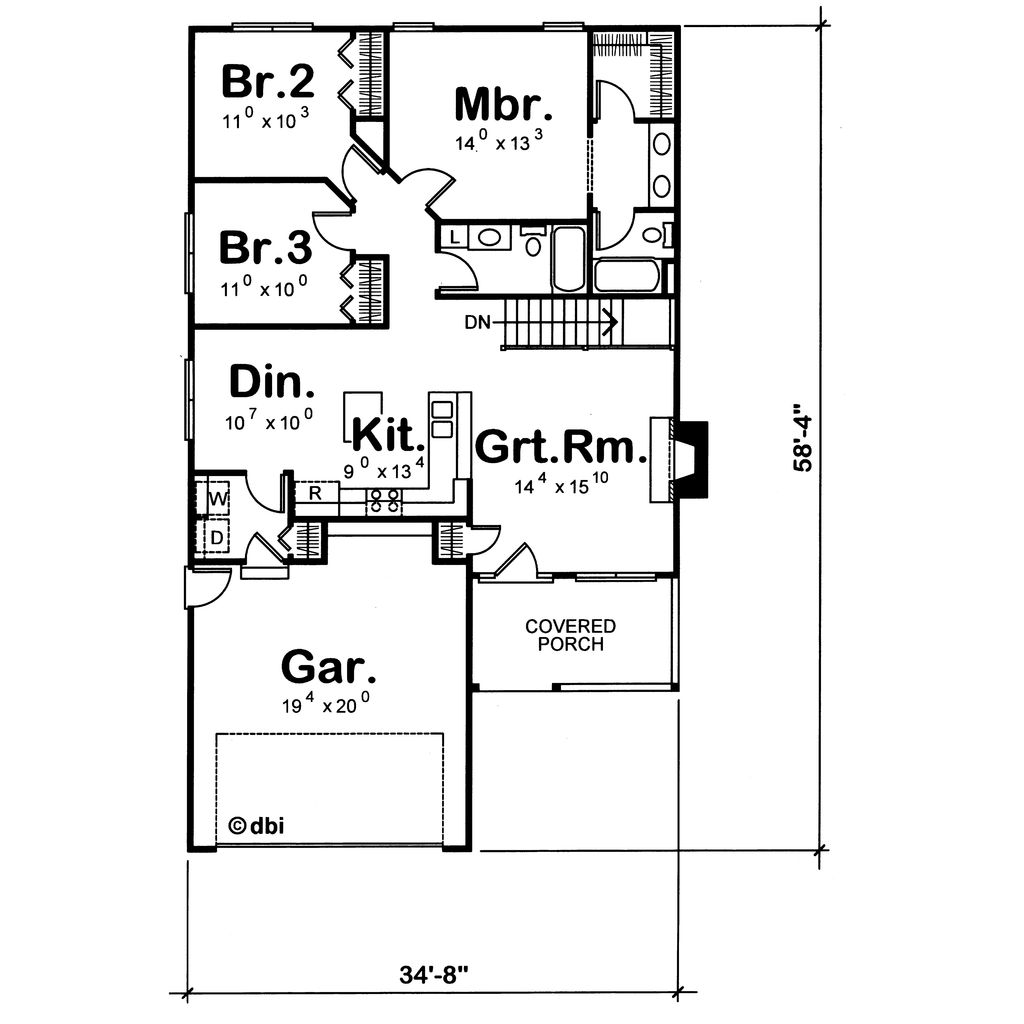

A pedimented arch, a keystone and a lintel adorn the garage of this home. The covered porch leads into the great room, which offers a hearth. The L-shaped kitchen features an island and connection to the dining room. Two family bedrooms and a master suite finish the plan.
112 sq/ft width 11' x depth 10' 3"
110 sq/ft width 11' x depth 10'
105 sq/ft width 10' 7" x depth 10'
386 sq/ft width 19' 4" x depth 20'
226 sq/ft width 14' 4" x depth 15' 10"
119 sq/ft width 9' x depth 13' 4"
40 sq/ft width 6' 8" x depth 6'
185 sq/ft width 14' x depth 13' 3"
35 sq/ft width 5' 10" x depth 6' 1"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One electronic set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
