Plan Description
This attractive split-level house is a good example of urban architecture. The home is 34 feet wide by 36 feet deep and provides 1,317 square feet of living space in addition to a 275 square foot one-car garage.
The ground floor has an 811 square foot living area and 9-foot high ceilings in the living room and the kitchen. The living room opens onto the dining room, and there is also a kitchen with a lunch counter, as well as a room that can be used as an office or a reading room.
The upper floor features 506 square feet of living space and includes two bedrooms and a bathroom.
Floor Plans

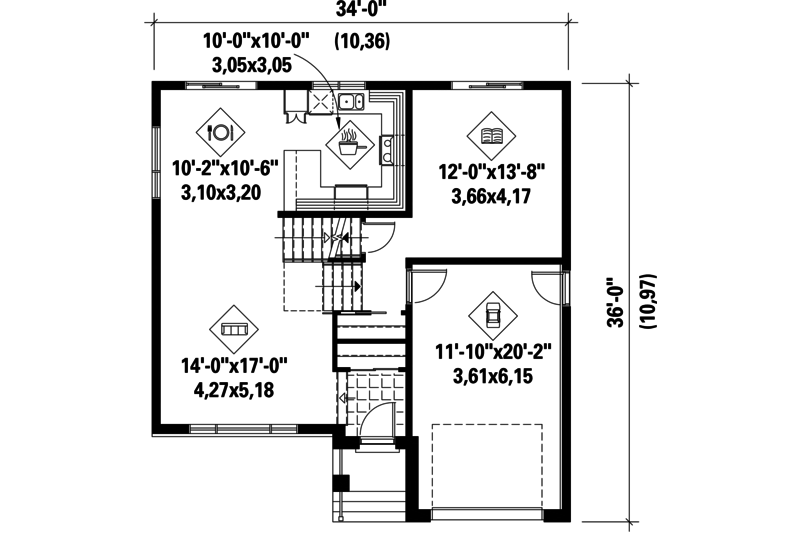

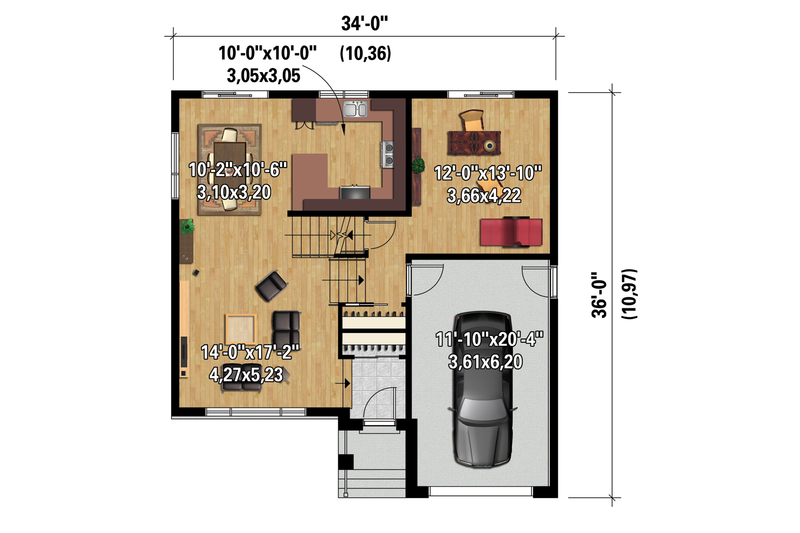

Floor Plan - Main Floor

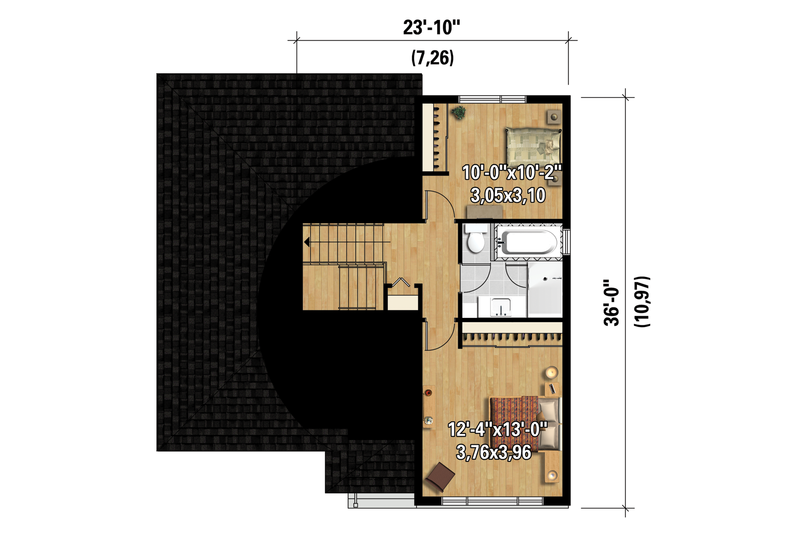

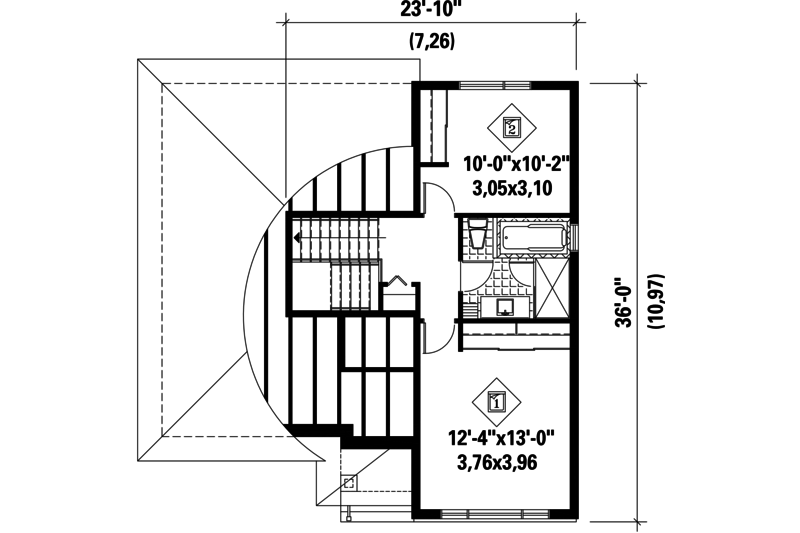

Floor Plan - Upper Floor
Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 36'
Height : 23' 4"
Width : 34'
Area
First Floor: 811 sq/ft height 8'
Second Floor: 506 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Roof Type : Shingle
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Siding Stone
Framing : Wood - 2 x 6
Insulation : R20
What's Included In This Plan Set
-
Exterior elevations:
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
-
Four detailed exterior elevations showing the final appearance of each side of the house.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$920.00
$920.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$965.00
$965.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1055.00
$1055.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1940.00
$1940.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$150.00
$150.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unlimited Use License:
$250.00
$250.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
