PLAN 1016-52

Photographs may show modified designs.

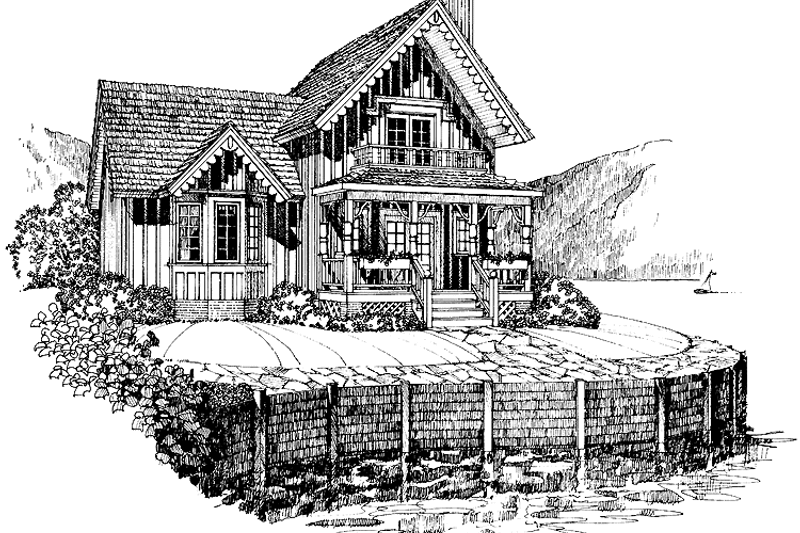

Home Plan - Craftsman Exterior - Front Elevation Plan #1016-52

Home Plan - Craftsman Exterior - Rear Elevation Plan #1016-52

Home Plan - Craftsman Floor Plan - Main Floor Plan #1016-52

Home Plan - Craftsman Floor Plan - Upper Floor Plan #1016-52

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1317
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$51.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$820.00 NOW $697.00

You save $123.00 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1016-52

Home > Style > Craftsman

Key Specs

1317
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This sweet lakeside cottage is sure to please with its quaint charm and convenient floor plan. A covered porch greets family and friends and offers a place to sit and enjoy the summer breezes. Inside, the living room--with its warming fireplace--flows nicely into the kitchen/dining area. A snack bar, pantry, and plenty of cabinet and counter space are just some of the features found here. The first-floor master suite includes a bay window, walk-in closet, and private bath. Upstairs, two bedrooms share a bath and linen closet.

Floor Plans

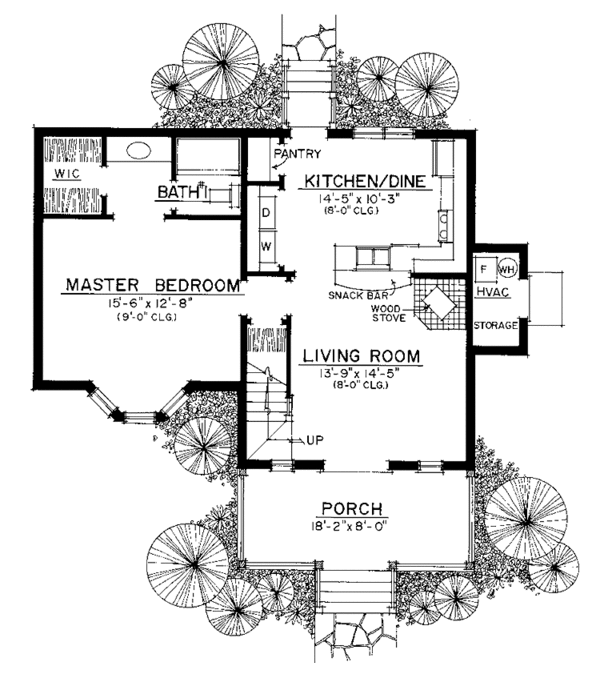

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

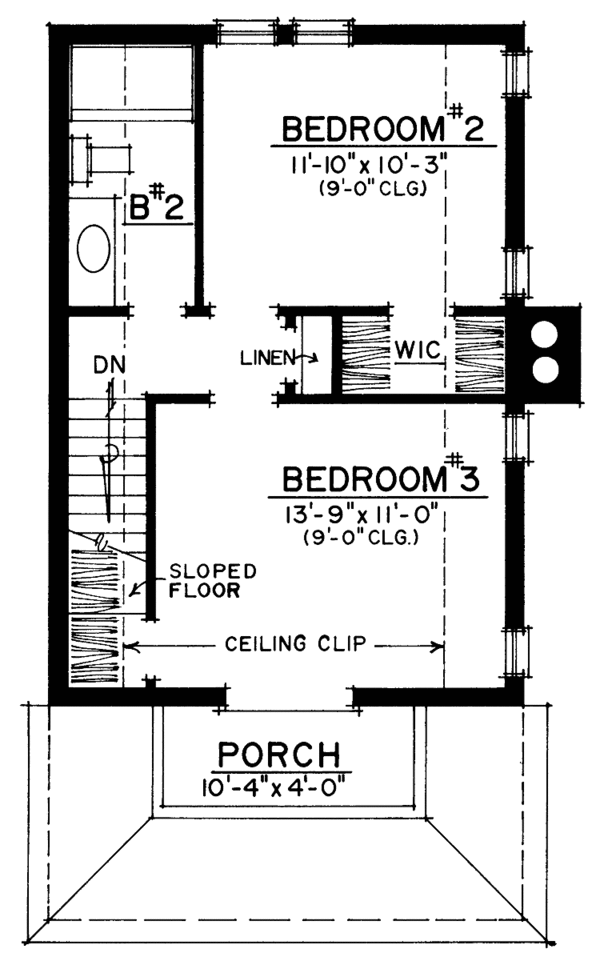

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 34'

Height : 28'

Width : 38' 2"

Area

First Floor: 836 sq/ft height 8'

Second Floor: 481 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Loft

Main Floor Laundry

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

3rd BR Closet:

15 sq/ft width 3' x depth 5'

Bathroom 2:

62 sq/ft width 10' 5" x depth 6'

Bedroom 2:

121 sq/ft width 11' 10" x depth 10' 3"

Bedroom 2 Closet:

18 sq/ft width 3' x depth 6' 4"

Bedroom 3:

151 sq/ft width 13' 9" x depth 11'

Bedroom 3 Closet:

18 sq/ft width 3' x depth 6' 4"

Living Room:

198 sq/ft width 13' 9" x depth 14' 5"

Master Bathroom:

51 sq/ft width 10' 3" x depth 5'

Master Bedroom:

196 sq/ft width 15' 6" x depth 12' 8"

Master Closet:

28 sq/ft width 6' x depth 4' 9"

Porch - Front:

144 sq/ft width 18' x depth 8'

Storage:

20 sq/ft width 4' x depth 5'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$697.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$51.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
