PLAN 938-104

Key Specs


1341
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Energy-Smart features, such as dropped soffits that conceal the A/C Ducts and the Air Handling Unit (AHU) closet are all within the conditioned space. These important elements make the Marion super energy efficient while at the same time every square inch of living space has been maximized. Making the home “live” much larger than the square foot numbers show. This southern classic-style home presents a symmetrical front façade topped with a set of three gables and offers a sheltered entry. The well-lit Foyer with its convenient coat closet offers sight lines to the rear of the home with its open plan Kitchen and Great Room area. Glass sliders open the living space to the covered lanai, bringing the outdoors in. The galley Kitchen offers a serving bar area with Pantry next to the Dining Room. A private Master Suite is tucked in the front of the home and provides dual walk-in closets with an ensuite bath. The Guest Bedrooms start at the rear of the home and shares a full Bath between them. The rear Guest Bedroom opens to the Lanai. The hallway connecting the two bedrooms offers both a Laundry Room and a generous Linen closet. The single car garage offers convenient access to the main house.

Floor Plans


Floor Plan - Main Floor Plan

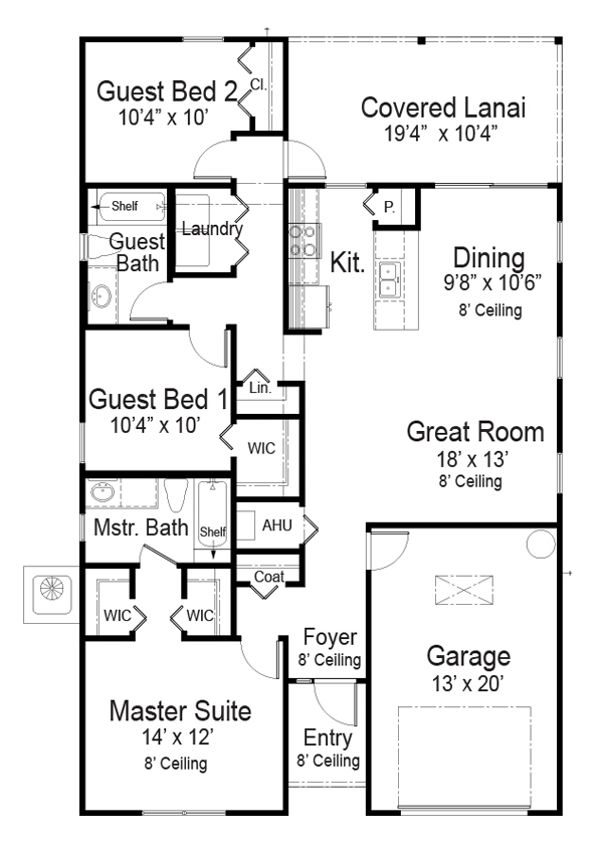

Southern Floor Plan - Main Floor Plan Plan #938-104

Full Specs & Features


Dimension
Depth : 55'
Height : 15' 9"
Width : 34'
Area
Main Floor : 1341 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 5/12
Exterior Wall Framing
Framing : 2X4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

  • Exterior Elevations

    The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

  • Cross Section & Interior Elevations

    The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

  • Electrical Plan

    The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
