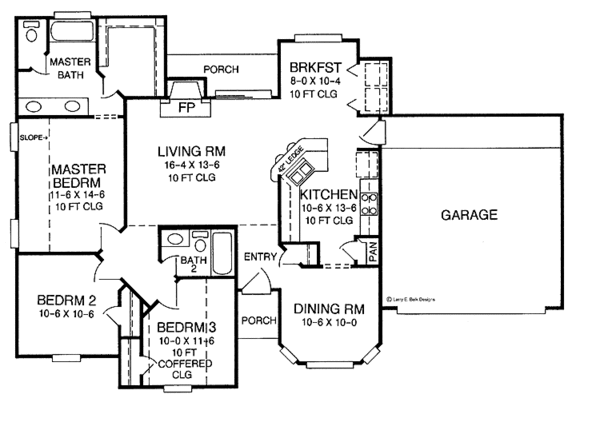

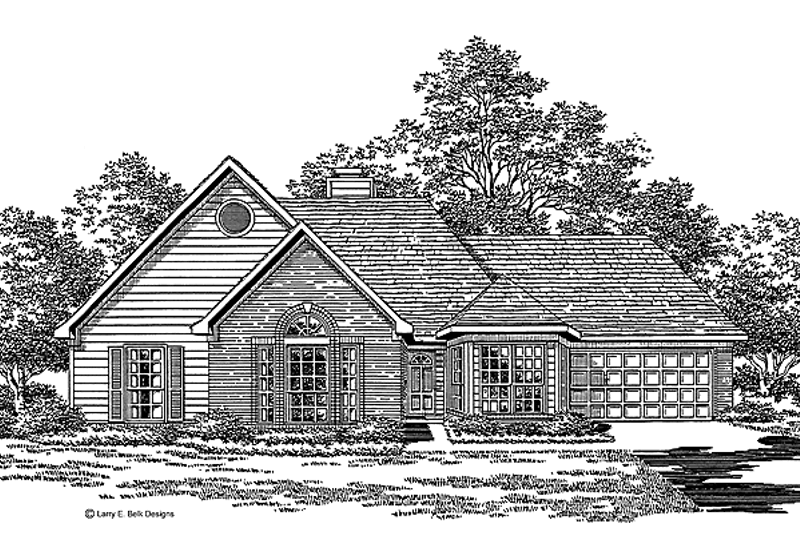

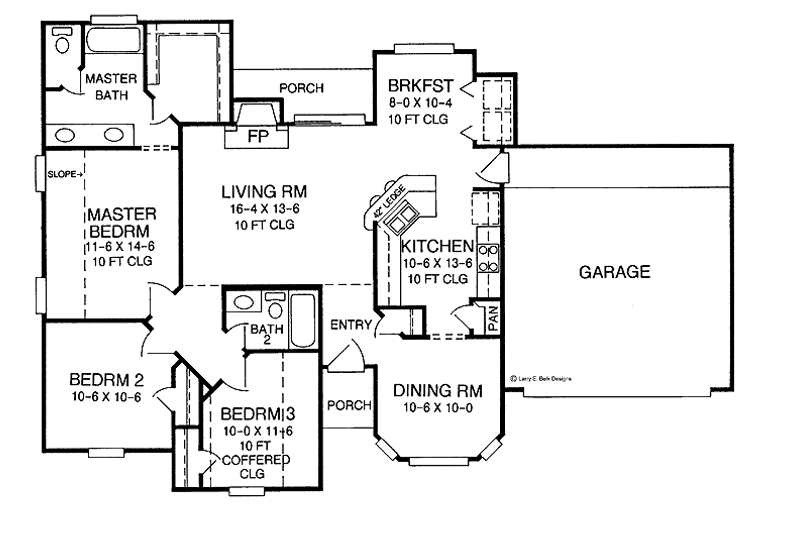

Fine detailing and multiple rooflines give this home plenty of curb appeal. A large living room with a fireplace is the focal point for this lovely home. The dining room and sunny breakfast room provide complementary eating areas. The master bedroom features a large walk-in closet and a bath with a combination whirlpool tub and shower. Two additional bedrooms and a full hall bath complete this livable plan. Please specify crawlspace or slab foundation when ordering.
110 sq/ft width 10' 6" x depth 10' 6"
115 sq/ft width 10' x depth 11' 6"
82 sq/ft width 8' x depth 10' 4"
105 sq/ft width 10' 6" x depth 10'
141 sq/ft width 10' 6" x depth 13' 6"
220 sq/ft width 16' 4" x depth 13' 6"
166 sq/ft width 11' 6" x depth 14' 6"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
