PLAN 58-136

Select Plan Set Options

What's included?
Additional Construction Sets
$45.00/each
Subtotal
$695.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 58-136

Key Specs


1427
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans


Floor Plan - Main Floor Plan
Reverse

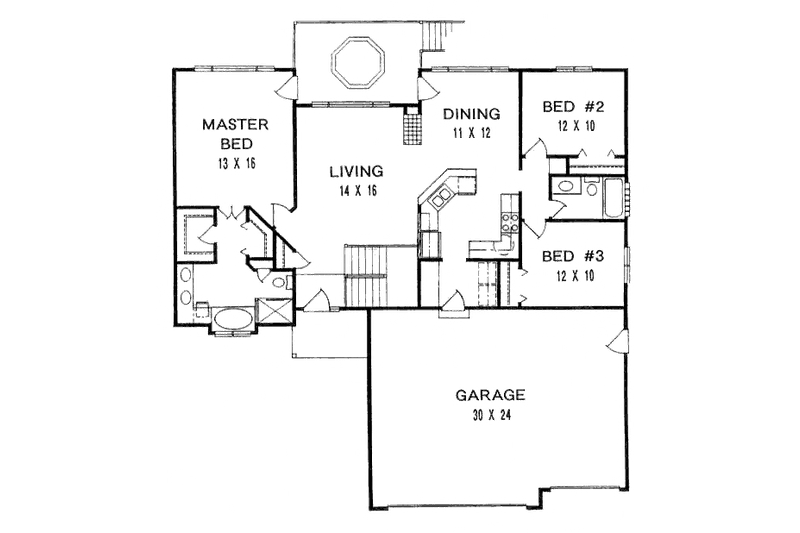

Traditional Floor Plan - Main Floor Plan Plan #58-136

Full Specs & Features


Dimension
Depth : 51'
Height : 18'
Width : 52'
Area
Basement Unfinished: 1310 sq/ft height 8'
First Floor: 1427 sq/ft height 8'
Garage: 720 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
More
Empty Nester
Rooms

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Dining Room:

132 sq/ft width 11' x depth 12'

Garage:

720 sq/ft width 30' x depth 24'

Living Room:

224 sq/ft width 14' x depth 16'

Master Suite:

208 sq/ft width 13' x depth 16'

What's Included In This Plan Set


Each set of plans include:
  • 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
  • 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.

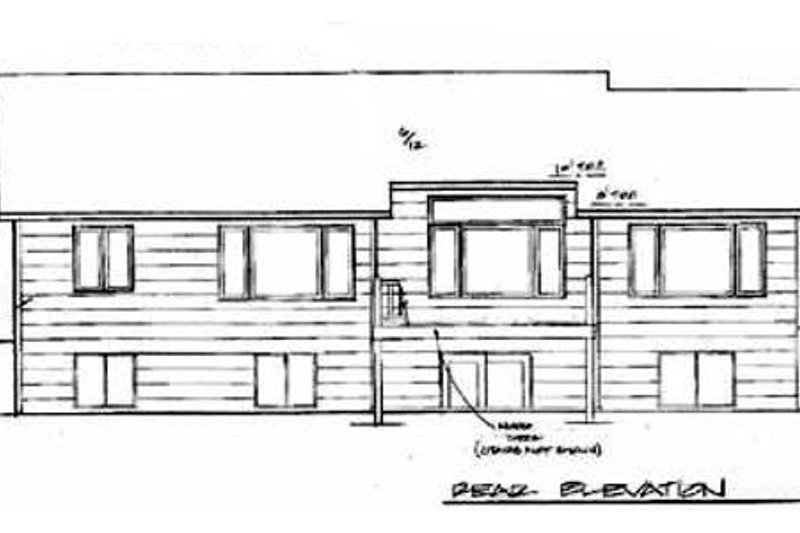

  • 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
  • Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
  • Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
  • Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
  • Building Cross Section - Complete front to back cross section with basic framing details.
» See important information before purchasing.

Plan Set

PDF Set :
$695.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$795.00
5 printed plan sets mailed to you.
Reproducible Set :
$795.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
