PLAN 72-808

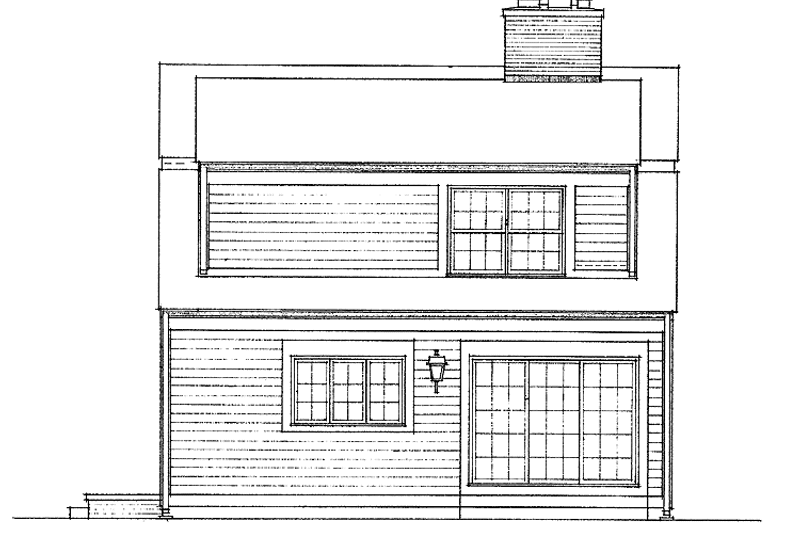

Colonial Exterior - Rear Elevation Plan #72-808

Select Plan Set Options

What's included?

	Right-Reading Reverse $157.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $54.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License $315.00 Additional Use License.
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $76.50 A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $54.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License $630.00 Unlimited Use License.

Subtotal

NOW $693.00

You save $77.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-888-447-1946

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 72-808

Key Specs

1428
sq ft

2
Beds

2.5
Baths

2
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This charming gambrel-roofed Colonial cottage is reminiscent of the simple houses built and occupied by seafarers on Cape Ann, Massachusetts in the 17th and 18th Centuries. This adaptation offers a new twist with expandable areas (a dining room, study and garage). The basic plan provides fine livability for the small family. The spacious country kitchen allows for plenty of dining area. The efficient work center is but a few steps from the sliding glass doors to the rear terrace. The sizable living room features a complementary fireplace to the one in the country kitchen. Don't miss the box-bay window in the dining room in the expanded plan. The second floor of each plan remains the same with two bedrooms and two full baths. The master suite has a walk-in closet and dual sinks. Blueprints include details for both the basic, low-cost version and the enhanced, upgraded version.

Floor Plans

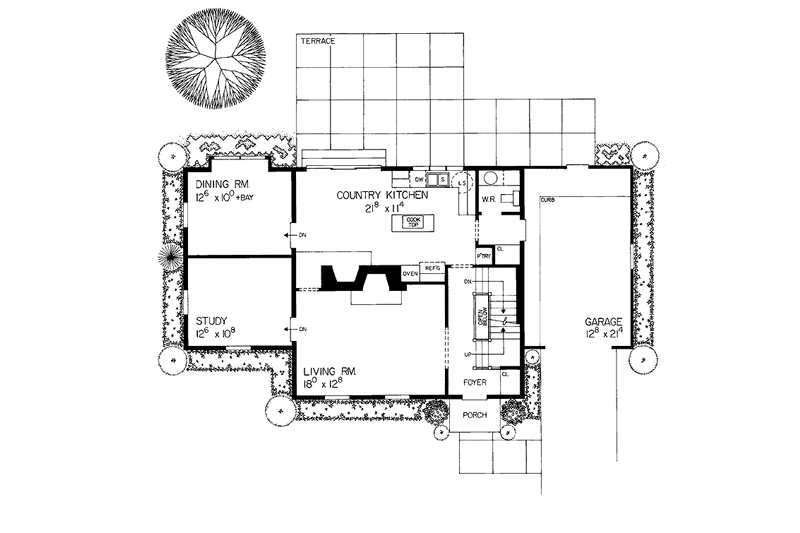

Floor Plan - Main Floor Plan

Reverse

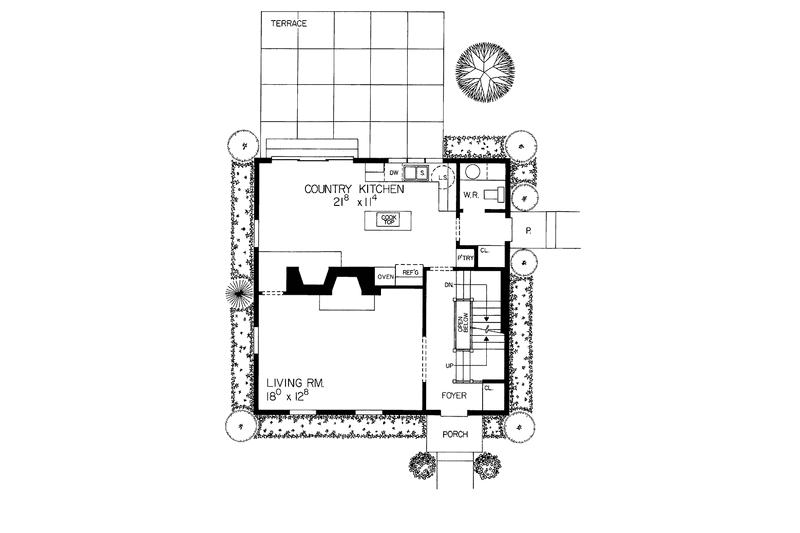

Colonial Floor Plan - Main Floor Plan Plan #72-808

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

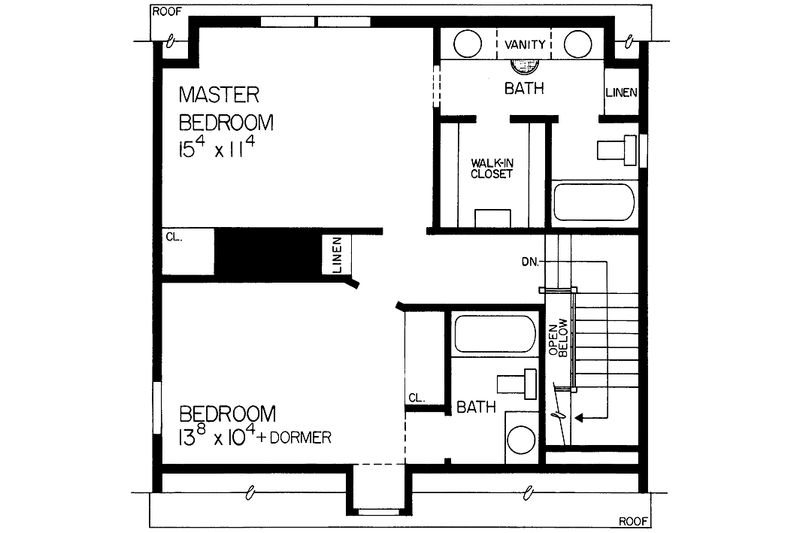

Floor Plan - Upper Floor Plan

Reverse

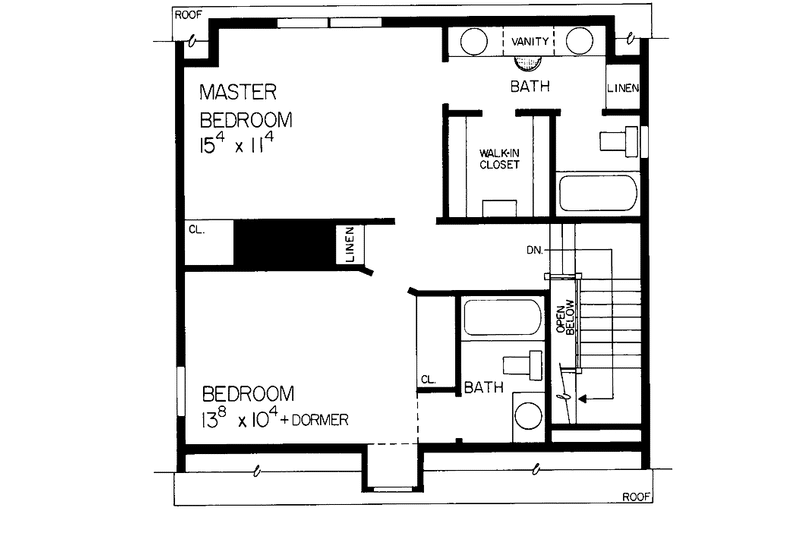

Colonial Floor Plan - Upper Floor Plan Plan #72-808

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 28'
Height : 24'
Width : 28'

Area

First Floor: 776 sq/ft height 8'
Second Floor: 652 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Den Office Study Computer
Storage Area

Outdoor Spaces

Covered Front Porch

Rooms

Attic:

784 sq/ft width 28' x depth 28'

Basement Foundation:

693 sq/ft width 26' 4" x depth 26' 4"

Bathroom 2:

43 sq/ft width 5' x depth 8' 8"

Bedroom 2:

141 sq/ft width 13' 8" x depth 10' 4"

Bedroom 2 Closet:

11 sq/ft width 2' 1" x depth 5' 5"

Bedroom 3 Closet:

11 sq/ft width 2' 1" x depth 5' 5"

Dining Room:

125 sq/ft width 12' 6" x depth 10'

Garage:

270 sq/ft width 12' 8" x depth 21' 4"

Hall:

44 sq/ft width 4' x depth 11'

Hall Closet:

6 sq/ft width 2' x depth 3' 1"

Kitchen:

245 sq/ft width 21' 8" x depth 11' 4"

Living Room:

228 sq/ft width 18' x depth 12' 8"

Master Bathroom:

63 sq/ft width 5' x depth 12' 8"

Master Bedroom:

173 sq/ft width 15' 4" x depth 11' 4"

Master Closet:

36 sq/ft width 6' x depth 6' 1"

Porch - Front:

24 sq/ft width 4' x depth 6'

Powder Room:

25 sq/ft width 5' x depth 5'

Study:

133 sq/ft width 12' 6" x depth 10' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

PDF Set : $693.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $792.00	5 printed plan sets mailed to you.
8 Copy Set : $891.00	8 printed plan sets mailed to you.
Reproducible Set : $891.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1386.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $247.50	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $247.50	Ideal for sloping lot, lower level of home partially underground.
Slab: $247.50	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $157.50	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $54.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License : $315.00	Additional Use License.
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $76.50	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $54.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License : $630.00	Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
