Plan Description
This unique ranch home designed for warm climates has built-in charm and
affordability. As you enter this home through the foyer, you have access to a
large living room and a formal dining room. The kitchen adjoins a family room
for your entertaining needs. Included in this home are three bedrooms and two
full size baths, one in the master bedroom and the other adjacent to the
remaining two bedrooms. A two-car garage, standard or double-size deck and a
fireplace are optional. The blueprints for this house show how to build both
the basic, low-cost version and the enhanced, upgraded version.
Floor Plans

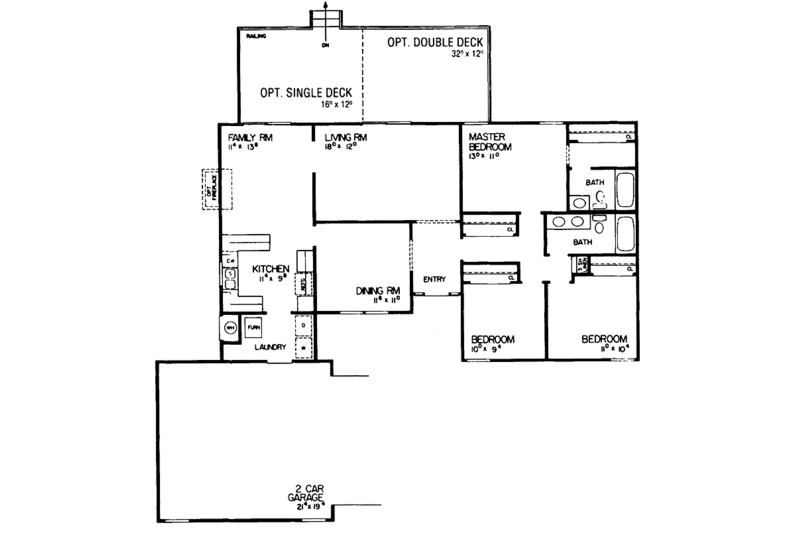

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 49' 8"
Height : 14'
Width : 60'
Area
First Floor: 1452 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
More
Wheelchair Adaptable
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
