PLAN 72-753
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Compact enough for even the smallest lot, this cozy design provides comfortable
living space for a small family. At the heart of the plan is a spacious country
kitchen. It features a cooking island/snack bar and a dining area that opens to
a house-wide rear terrace. The nearby dining room also opens to the terrace. At
the front of the plan is the living room, warmed by a fireplace. Across the
centered foyer is a cozy study. Two second-floor bedrooms are serviced by two
baths. Note the first-floor powder room and storage closet located next to the
side entrance.
Floor Plans

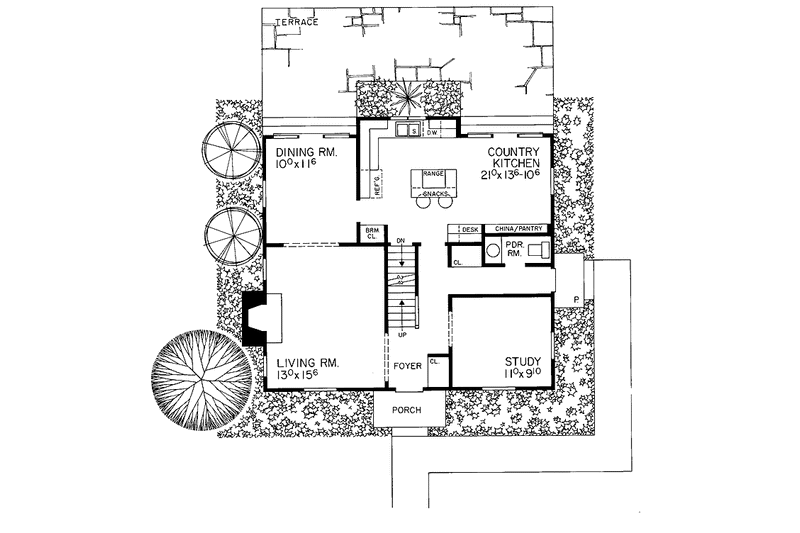

Floor Plan - Main Floor

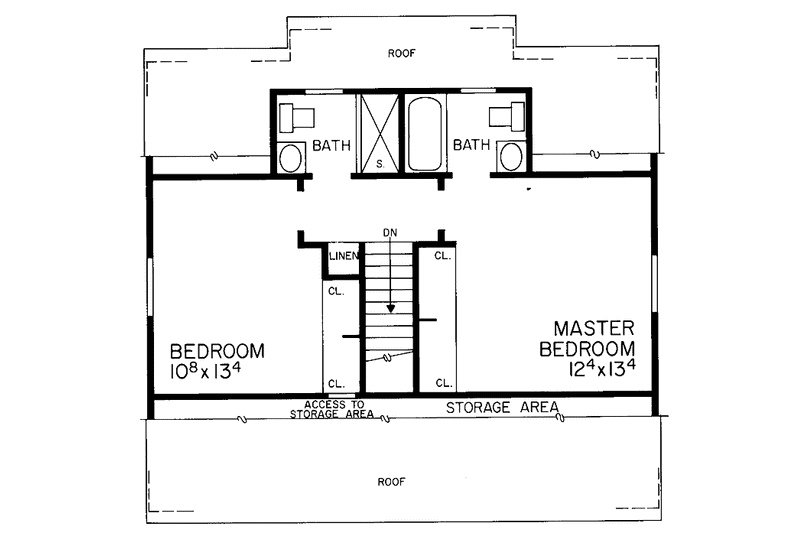

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 30'
Height : 26'
Width : 34' 4"
Area
First Floor: 919 sq/ft height 8'
Second Floor: 535 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$785.40
$785.40
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$897.60
$897.60
5 printed plan sets mailed to you.
8 Copy Set:
$1009.80
$1009.80
8 printed plan sets mailed to you.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$233.75
$233.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$233.75
$233.75
Ideal for sloping lot, lower level of home partially underground.
Slab:
$233.75
$233.75
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$165.75
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$420.75
$420.75
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$72.25
$72.25
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$0.00
$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License:
$845.75
$845.75
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
