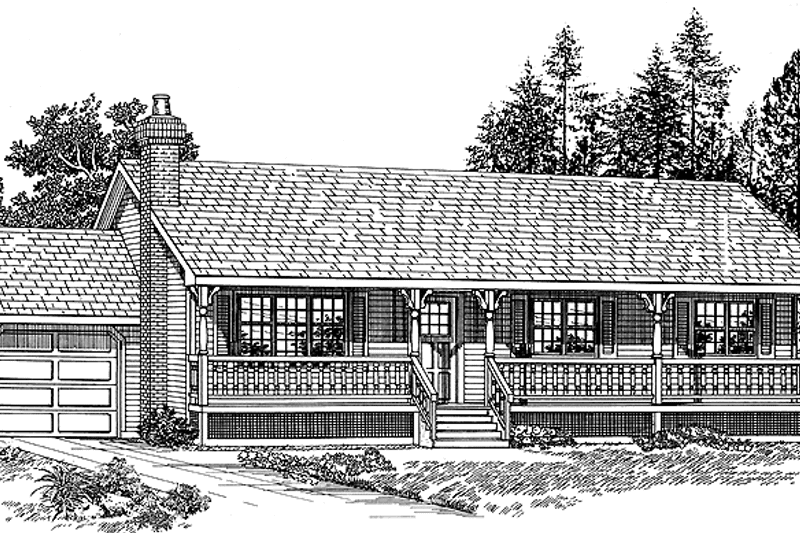

Home Plan - Ranch Exterior - Front Elevation Plan #47-801

Home Plan - Ranch Floor Plan - Main Floor Plan #47-801

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch

Key Specs

1456
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$175.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$54.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$445.50

Allows you to build one more home for each additional license purchased.

Audio Video Design

$135.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$265.50

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$135.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$76.50

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$895.50

Allows you to build this home as many times as you want.

Subtotal

$924.00 NOW $831.60

You save $92.40 (10% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-801

Home > Style > Ranch

Key Specs

1456
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A covered veranda, spanning the width of this three-bedroom home, is a graceful and charming exterior detail. It leads to an entry foyer and the large living and dining space beyond. Here, a warming fireplace will act as a focal point. The dining room has a small covered porch beyond sliding glass doors. The U-shaped kitchen includes a breakfast bar and serves the dining room and sunny breakfast bay easily.

Floor Plans

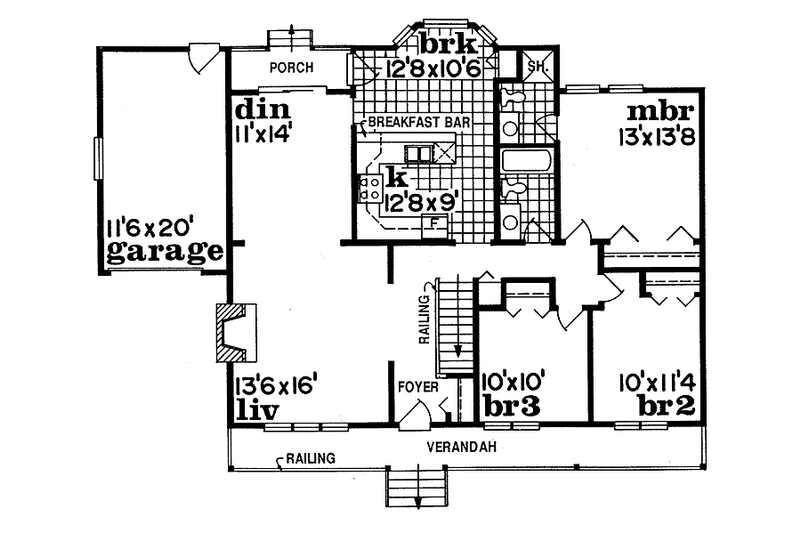

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 41'

Height : 20'

Width : 56'

Area

First Floor: 1456 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

8 sq/ft width 2' x depth 4'

Basement Foundation:

1540 sq/ft width 35' x depth 44'

Bathroom 2:

43 sq/ft width 8' 8" x depth 5'

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 2 Closet:

13 sq/ft width 2' x depth 6' 6"

Bedroom 3:

103 sq/ft width 10' 4" x depth 10'

Bedroom 3 Closet:

13 sq/ft width 2' x depth 6' 6"

Breakfast Room:

133 sq/ft width 10' 8" x depth 12' 6"

Dining Room:

150 sq/ft width 13' 8" x depth 11'

Foyer:

56 sq/ft width 13' x depth 4' 4"

Garage:

233 sq/ft width 20' x depth 11' 8"

Hall Closet:

8 sq/ft width 4' x depth 2'

Kitchen:

112 sq/ft width 9' x depth 12' 6"

Living Room:

234 sq/ft width 16' x depth 14' 8"

Master Bathroom:

43 sq/ft width 8' 8" x depth 5'

Master Bedroom:

182 sq/ft width 13' 8" x depth 13' 4"

Master Closet:

20 sq/ft width 2' x depth 10'

Porch - Front:

176 sq/ft width 4' x depth 44'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
