Key Specs


1468
sq ft

1
Beds

1
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Shingles and craftsman elements adorn the exterior of this appealing plan. A three-car garage fills the lower level, while a roomy apartment resides above. The 676 square feet of living space includes an L-shaped kitchen, light-filled living room, full bathroom and bedroom with a walk-in closet. Live in this charming home or use the space for rental income.

Floor Plans

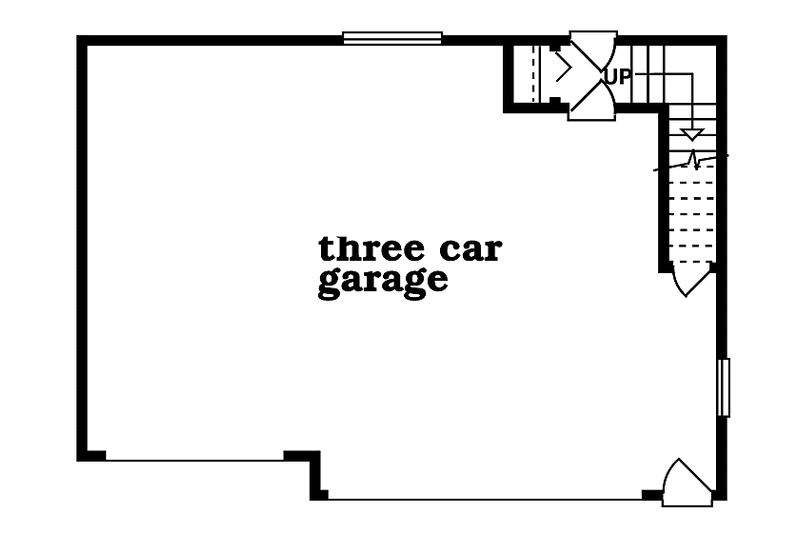

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #47-1082
Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #47-1082

Full Specs & Features


Dimension
Depth : 24'
Height : 21'
Width : 34'
Area
First Floor: 792 sq/ft height 8'
Second Floor: 676 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Bedroom Features
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms

Garage:

759 sq/ft width 23' x depth 33'

Hall:

12 sq/ft width 3' 2" x depth 3' 11"

Hall Bathroom:

56 sq/ft width 7' 7" x depth 7' 6"

Hall Closet:

6 sq/ft width 3' 2" x depth 2'

Kitchen:

90 sq/ft width 8' 1" x depth 11' 2"

Living Room:

179 sq/ft width 14' 11" x depth 12'

Master Bedroom:

120 sq/ft width 12' x depth 10'

Master Closet:

26 sq/ft width 4' 2" x depth 6' 4"

Slab Foundation:

816 sq/ft width 24' x depth 34'

Utility Room:

18 sq/ft width 3' 3" x depth 5' 10"
